Backyard Discovery Highlander 6010 - Page 56

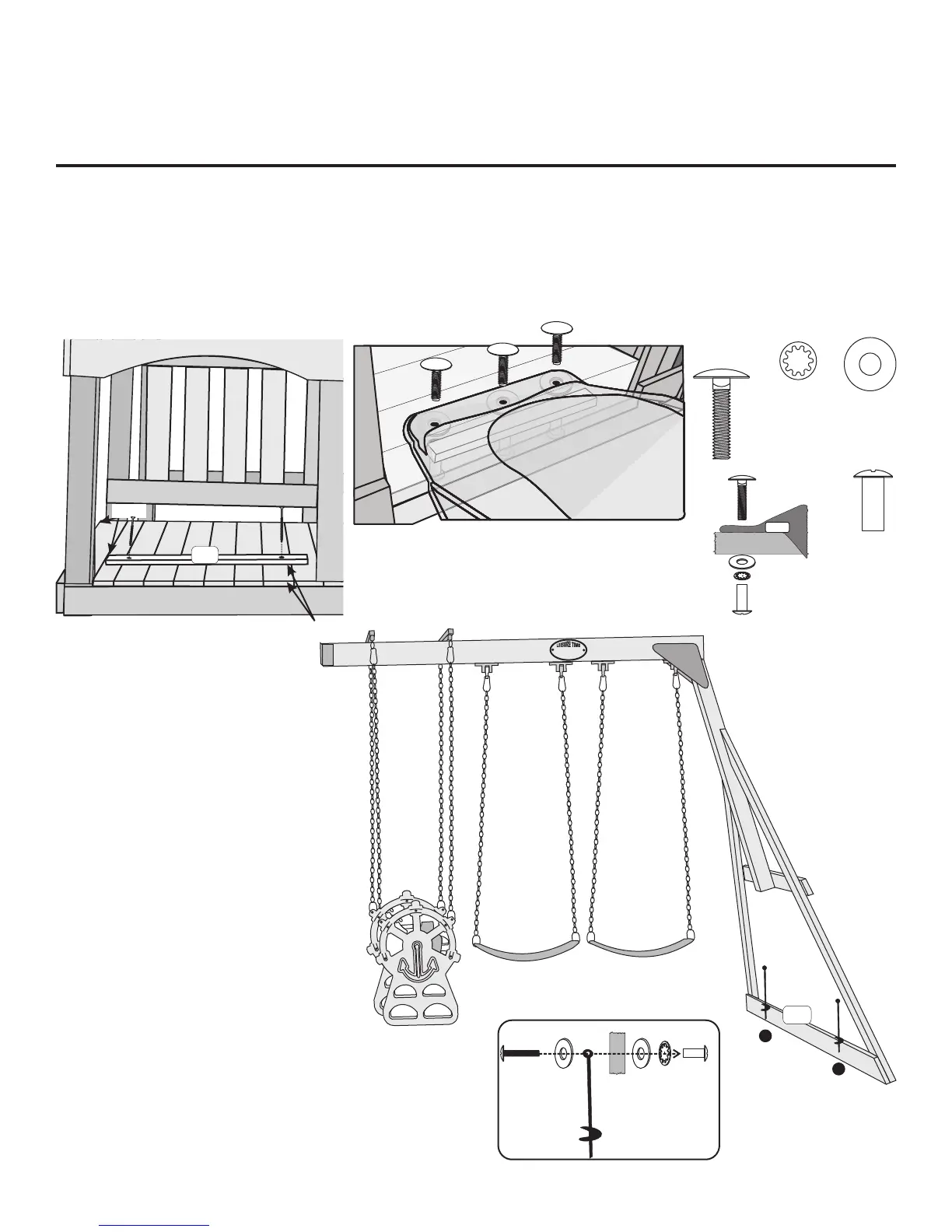

STEP 35
Pilot drill 04 Slide Board with 3/16” drill bit and Attach O4 Slide Board to Floor Boards using 1-1/4” Wood Screws. Position
O4 –four inches (4”) back from front floor Rail and 6-1/4” From Left Side Floor Rail (Per Diagram). Now, position Slide over
O4 and using holes in slide mark Floor Boards, remove Slide and Drill thru Floor Board with a 3/8” Drill Bit. Set Slide back on
set and attach using Step Bolts thru Slide and 5/16” Lock Washers, Fender Washers and 1/4” Barrel Nuts from under Floor
Boards.
PAGE 54
1/4"
BARREL
HEAD
NUT
1/4 X 1"
STEP
BOLT
5/16"
INTERNAL
TOOTH
LOCK
WASHER
FENDER
WASHER
SLIDE
WOOD FLOOR
BOLT
5/16"
LOCK WASHER
FENDER WASHER
BARREL NUT
O4
4”
O4
6 1/4”
STEP 36
Attach ID Plate to center of A1 Swing
Beam with 1-1/4” Wood Screws.
Install Ground anchors to G1 Ground
Board on Swing Beam (Per Diagram).
Measure in 6” from outside edge of G1
Ground Board and mark ground. Using
screw driver screw stake into ground
until 3” from top of G1 Ground Board.
Use hole in stakes to drill 3/8” hole and
attach stakes to Ground Board using 1”
Phillips Truss Head Bolts, Fender
Washers, 5/16” Lock Washers and
5/16” Barrel Nuts.
Metal Stake
FENDER
WASHER
BOLT
LOCK
WASHER
BOARD
FENDER
WASHER
BARREL
NUT
5/16"
G1
PRODUCTS
SILOAM SPRINGS, AR 72761
PHONE 866-362-1123
T
H
0
I
S
1
P
L
A
T
O
Y
S
2
E
T
E
S
I
S
A
G
I
N
T E
N
E
N
D
E
I
L
D
R
D
F
O R
C
H
ITEMS NEEDED
(1) O4 Slide Board
(1) 10' Slide
(1) ID Plate Y50-LTP
(2) Ground Stakes Y41
HARDWARE NEEDED
(3) ¼” x 1” Step Bolts
(5) ¼” Phillips Barrel Nut
(7) Fender Washer
(5) 5/16” Lock Washer
(2) 1 ¼” Wood Screw
(2) ¼” x 1” Phillips Truss Head Bolt
