STEP 34

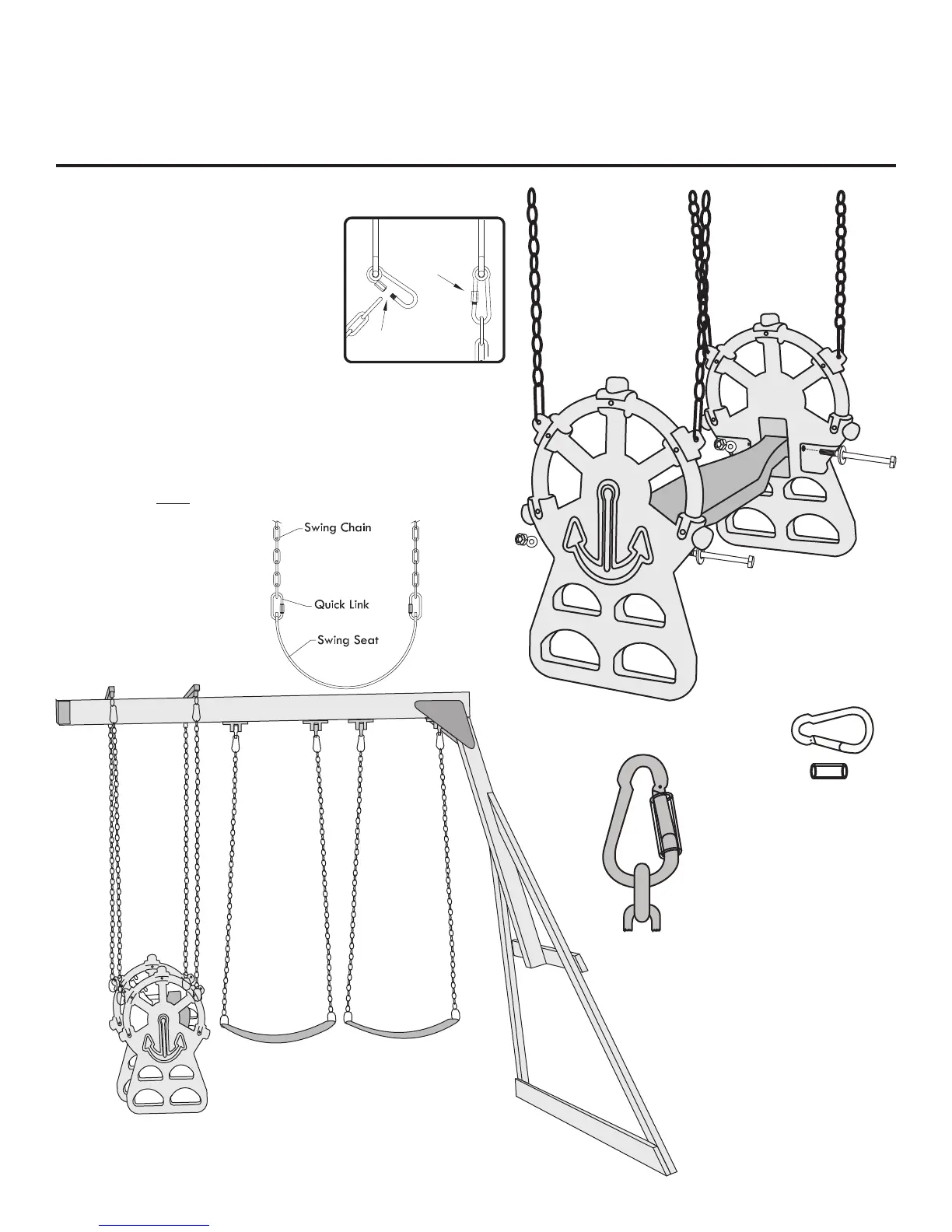

Assemble Glider using 5/16”x 5-3/4”
Hex Bolts, Fender Washers and Lock
Nuts. Then attach 57” chains to Glider
Handles using Quick Links. Then hang
Glider from Swing Hangers and tighten
Quick Links on Swing Hangers and
Glider ends.
Attach 62” chains to Swing Belts using
Quick Links and tighten; then hang
with Carabiners and Safety tubes to
Swing Hangers.
Tighten the quick link with a wrench.
The quick link must be tightened so that
it cannot be opened by hand.
PAGE 53
Fender Washer
Lock Nut
5 3/4 Hex Bolt
Fender Washer
Tighten Quick
Link
Insert Chain Into
Quick Link
• Slip the Plastic Safety
Tubes on the Carabiner.
ITEMS NEEDED
(2) Swing Seats
(8) Quick Links (2 Bags of 4) ZQLB1
(4) 57” Chains Y60-57G
(4) 62” Chains Y60-62G
(1) Ships Wheel Glider (1) Seat, (2) Ends X11-Cay
HARDWARE NEEDED
(2) 5/16” x 5 ¾” Hex Bolts
(4) Fender Washer
(2) 5/16” Lock Nut
(4) Carabiner
(4) Plastic Safety Tubes
