Backyard Discovery MALIBU - Page 160

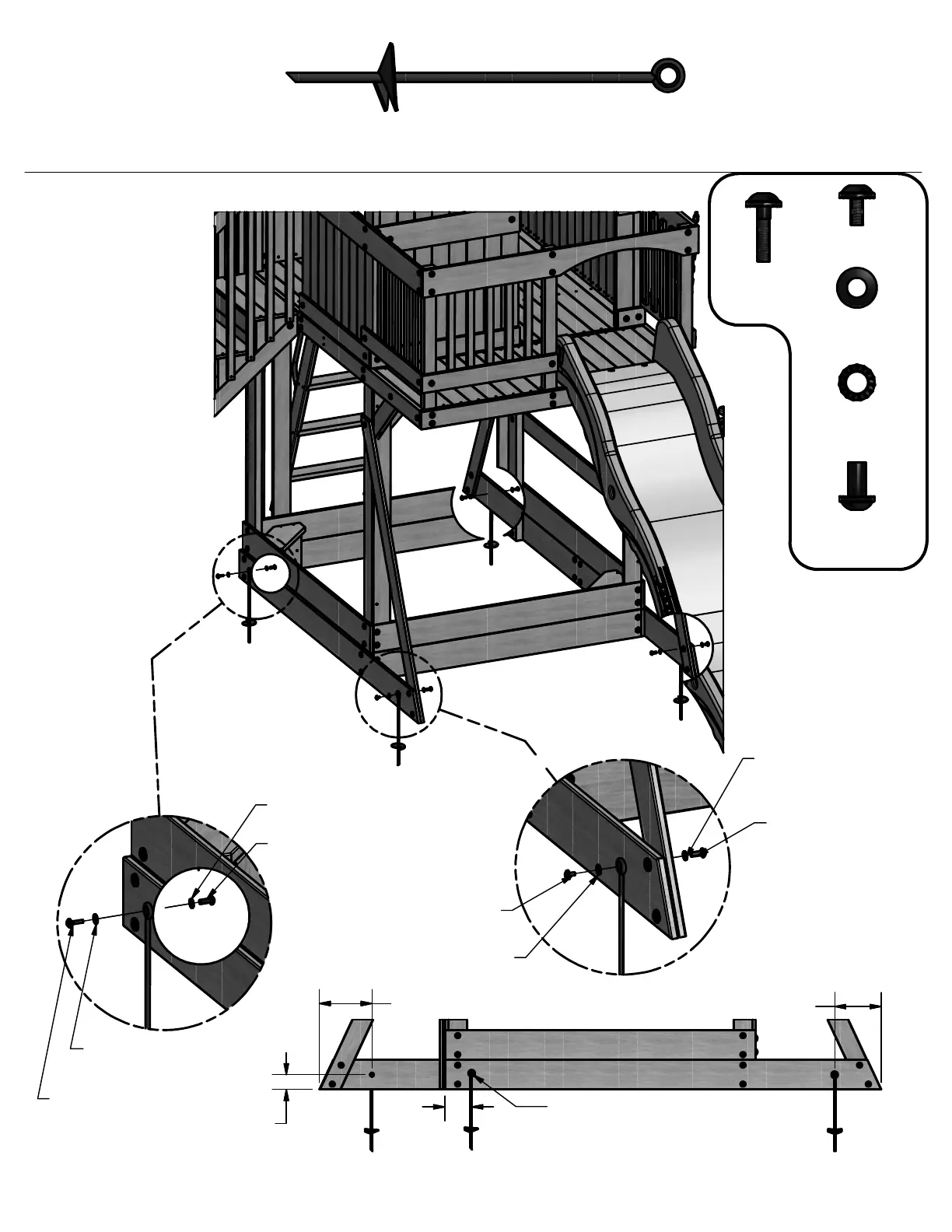

STEP 112
KC - METAL GROUND STAKE BROWN - A100178

BOLT WH
1/4x1/2 BLK
(3)
WASHER
FLAT 9x18
BLK
(4)
WASHER
LOCK EXT
8x15 BLK
(4)
NUT BARREL
WH 1/4x5/8
BLK
(4)
BOLT WH 1/4x1/2 BLK
(3 PLCS)
WASHER FLAT 9x18 BLK
(3 PLCS)
WASHER LOCK
EXT 8x15 BLK
(3 PLCS)
NUT BARREL
WH 1/4x5/8 BLK
(3 PLCS)
2 5/8" TYP
9 3/8"
5"
8 3/8"
DRILL THROUGH USING
A 5/16" DRILL BIT.
BOLT WH
1/4x1 BLK
(1)
BOLT WH 1/4x1 BLK
(1 PLC)
WASHER FLAT 9x18 BLK
(1 PLC)
NUT BARREL WH 1/4x7/8 BLK
(1 PLC)
WASHER LOCK EXT 8x15 BLK
(1 PLC)
160
