Backyard Discovery MALIBU - Page 18

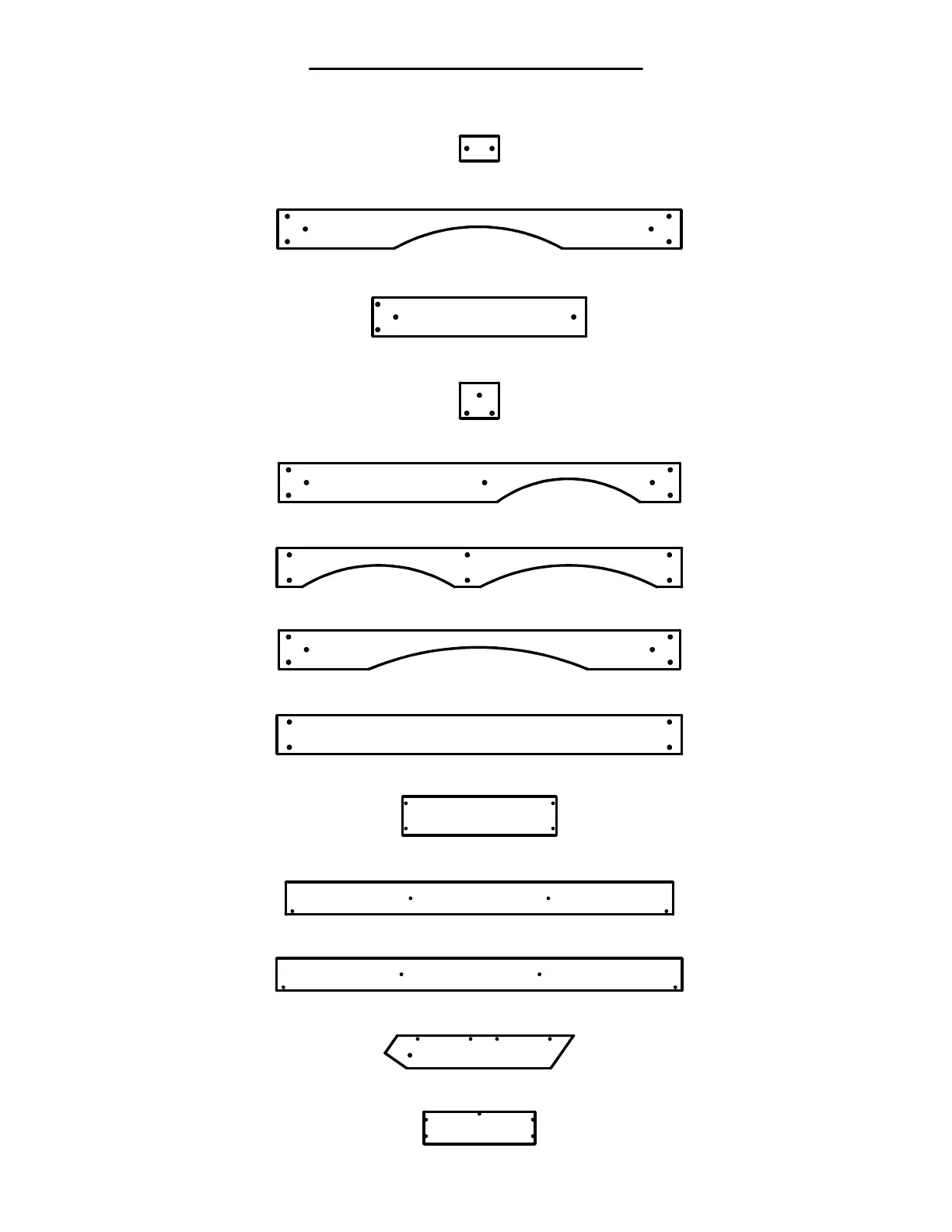

Parts Identification
Wood Components
(NOT TO SCALE)
K11 - WALL RAIL - W4L06470
5/8"x5 1/4"x3 3/8" (16x134x86)

K12 - ARCHED WALL RAIL - W4L06471
5/8"x5 1/4"x54 1/8" (16x134x1375)

K13 - WALL RAIL - W4L06473
5/8"x5 1/4"x28 5/8" (16x134x728)

K14 - WALL RAIL - W4L06474
5/8"x5 1/4"x4 3/4" (16x134x122)

K15 - ARCHED WALL RAIL - W4L06479
5/8"x5 1/4"x53 7/8" (16x134x1367)

K16 - ARCHED WALL RAIL - W4L06530
5/8"x5 1/4"x54 3/8" (16x134x1380)

K17 - ARCHED WALL RAIL - W4L06531
5/8"x5 1/4"x53 7/8" (16x134x1367)

K18 - WALL RAIL - W4L06532
5/8"x5 1/4"x54 3/8" (16x134x1380)

L1 - FLOOR BOARD - W4L06400
5/8"x4 3/8"x52" (16x112x1321)

L2 - FLOOR BOARD - W4L06404
5/8"x4 3/8"x54 3/8" (16x112x1382)

L3 - GABLE BOARD - W4L06412
5/8"x4 3/8"x25 3/8" (16x112x644)

L4 - BOTTOM BOARD - W4L06420
5/8"x4 3/8"x15" (16x112x380)

K19 - STAIR BOARD - W4L06619
5/8"x5 1/4"x20 5/8" (16x134x525)

18
