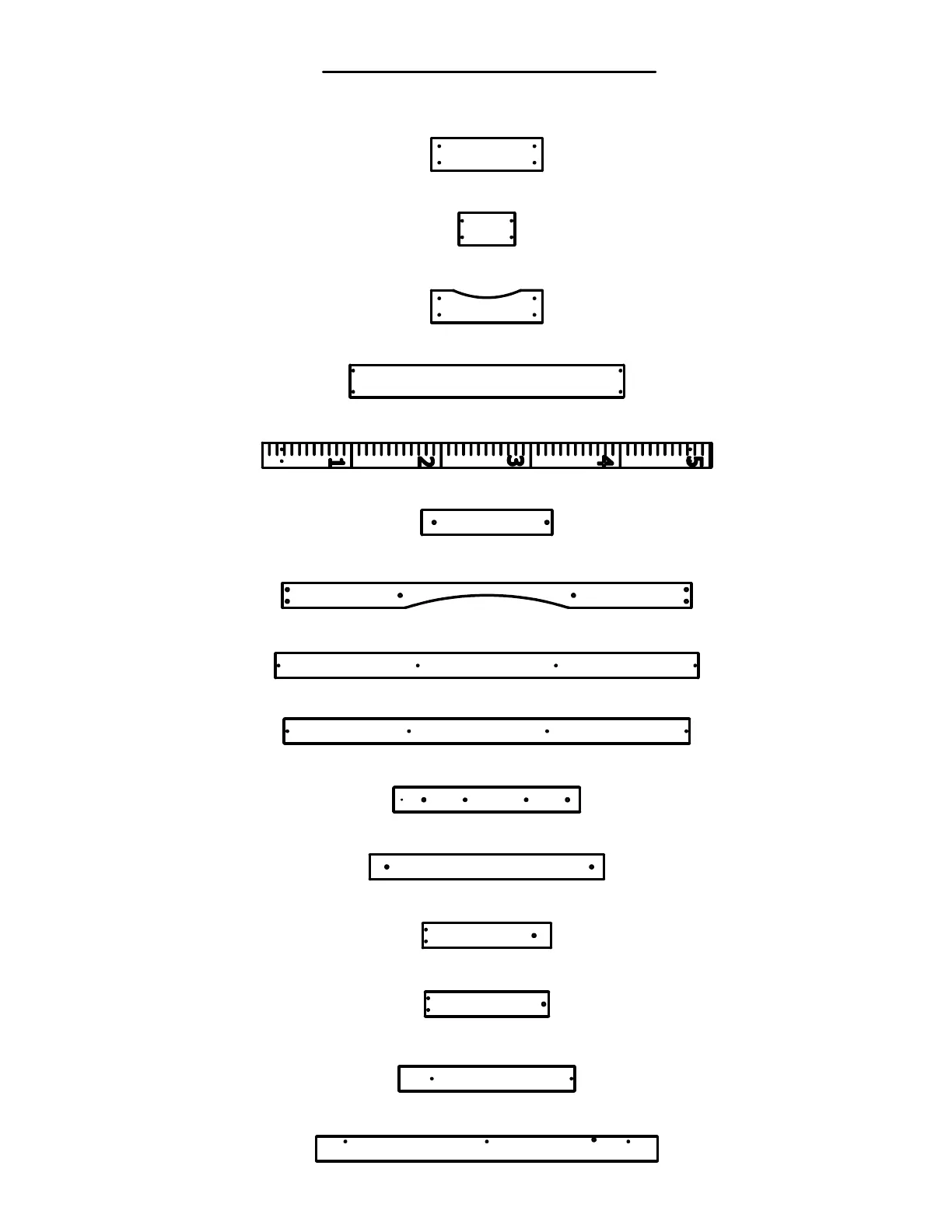

Parts Identification
Wood Components
(NOT TO SCALE)
L5 - LONG SIDE BOARD - W4L06421
5/8"x4 3/8"x15" (16x112x380)

L6 - SHORT SIDE BOARD - W4L06422
5/8"x4 3/8"x7 1/2" (16x112x192)

L7 - ARCHED SIDE BOARD - W4L06423
5/8"x4 3/8"x15" (16x112x380)

L8 - SEAT BOARD - W4L06418
1"x4 3/8"x36 3/4" (24x112x934)

M1 - GROWTH BOARD - W4L06143
5/8"x3 3/8"x60 1/4" (16x86x1530)

M2 - WALL RAIL - W4L06393
5/8"x3 3/8"x17 1/2" (16x86x445)

M3 - WALL RAIL - W4L06394
5/8"x3 3/8"x54 7/8" (16x86x1394)

M4 - FLOOR BOARD - W4L06401
5/8"x3 3/8"x56 3/4" (16x86x1442)

M5 - FLOOR BOARD - W4L06402
5/8"x3 3/8"x54 3/8" (16x86x1382)

M6 - WALL BOARD - W4L06405
5/8"x3 3/8"x25" (16x86x635)

M7 - WALL RAIL - W4L06406
5/8"x3 3/8"x31 1/2" (16x86x799)

M8 - WALL RAIL - W4L06409
5/8"x3 3/8"x17 1/4" (16x86x439)

M9 - WALL RAIL - W4L06410
5/8"x3 3/8"x16 5/8" (16x86x423)

M10 - COUNTER TOP - W4L06413
5/8"x3 3/8"x23 5/8" (16x86x600)

M11 - FRONT CORNER BOARD - W4L06446
5/8"x3 3/8"x45 3/4" (16x86x1163)

