Backyard Discovery MALIBU - Page 20

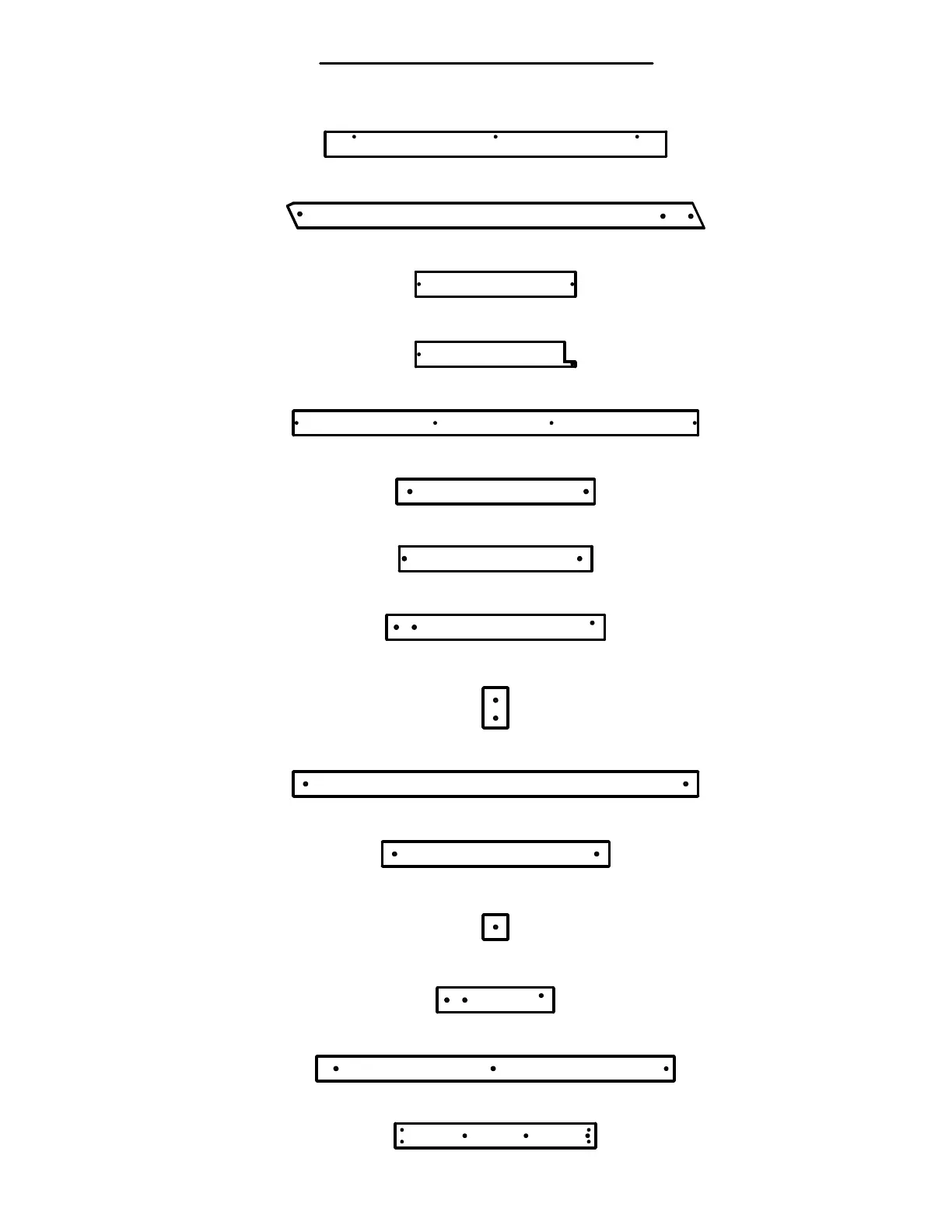

Parts Identification
Wood Components
(NOT TO SCALE)
M12 - REAR CORNER BOARD - W4L06447
5/8"x3 3/8"x45 3/4" (16x86x1163)

M13 - ANGLE BRACE - W4L06449
5/8"x3 3/8"x55 7/8" (16x86x1420)

M14 - FLOOR BOARD - W4L06452
5/8"x3 3/8"x21 1/2" (16x86x546)

M15 - FLOOR BOARD - W4L06453
5/8"x3 3/8"x21 1/2" (16x86x546)

M16 - FLOOR BOARD - W4L06458
5/8"x3 3/8"x54 1/4" (16x86x1379)

M17 - WALL RAIL - W4L06459
5/8"x3 3/8"x26 5/8" (16x86x676)

M18 - WALL RAIL - W4L06461
5/8"x3 3/8"x25 7/8" (16x86x658)

M19 - WALL RAIL - W4L06463
5/8"x3 3/8"x29 1/4" (16x86x744)

M20 - WALL RAIL - W4L06464
5/8"x3 3/8"x5 3/8" (16x86x138)

M21 - WALL RAIL - W4L06465
5/8"x3 3/8"x54 3/8" (16x86x1380)

M22 - WALL RAIL - W4L06466
5/8"x3 3/8"x30 1/2" (16x86x774)

M23 - WALL RAIL - W4L06467
5/8"x3 3/8"x3 3/8" (16x86x86)

M24 - WALL RAIL - W4L06468
5/8"x3 3/8"x15 5/8" (16x86x398)

M25 - WALL BOARD - W4L06477
5/8"x3 3/8"x48" (16x86x1219)

M26 - WALL BOARD - W4L06478
5/8"x3 3/8"x26 7/8" (16x86x684)

20
