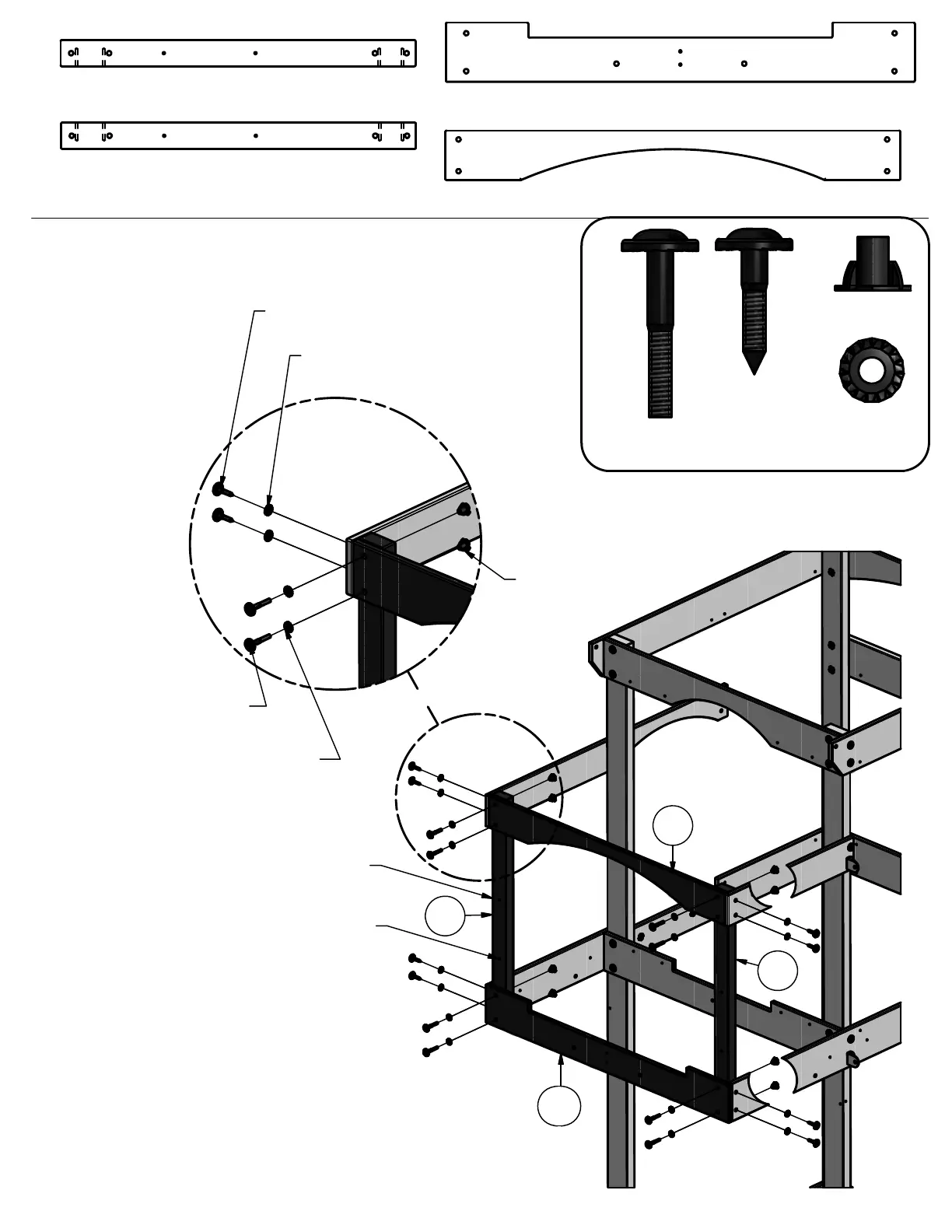

STEP 6
INSTALL T-NUTS INTO PARTS BEFORE
ASSEMBLY OF PARTS.
WASHER
LOCK EXT
8x19 BLK
(16)
T-NUT 5/16
BLK
(8)
LAG SCREW
WH 5/16x1 1/2
BLK
(8)
BOLT WH
5/16x2 BLK
(8)
T-NUT 5/16 BLK
(8 PLCS)
LAG SCREW WH 5/16x1 1/2 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x2 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
K11
F2
L5
F1
F1 - RIGHT BALCONY UPRIGHT - W4L07506
1 3/8"x2 3/8"x31 3/4" (36x60x805)

F2 - LEFT BALCONY UPRIGHT - W4L07507
1 3/8"x2 3/8"x31 3/4" (36x60x805)

K11 - LEFT SIDE WALL BOARD - W4L07508
5/8"x5 1/4"x41 7/8" (16x134x1064)

L5 - ARCHED WALL RAIL - W4L07578
5/8"x4 3/8"x40 5/8" (16x112x1032)

NARROW EDGES WITH
HOLES FACE OUT.
NOTE HOLE ORIENTATION.
51
