Backyard Discovery Mount Triumph - Page 53

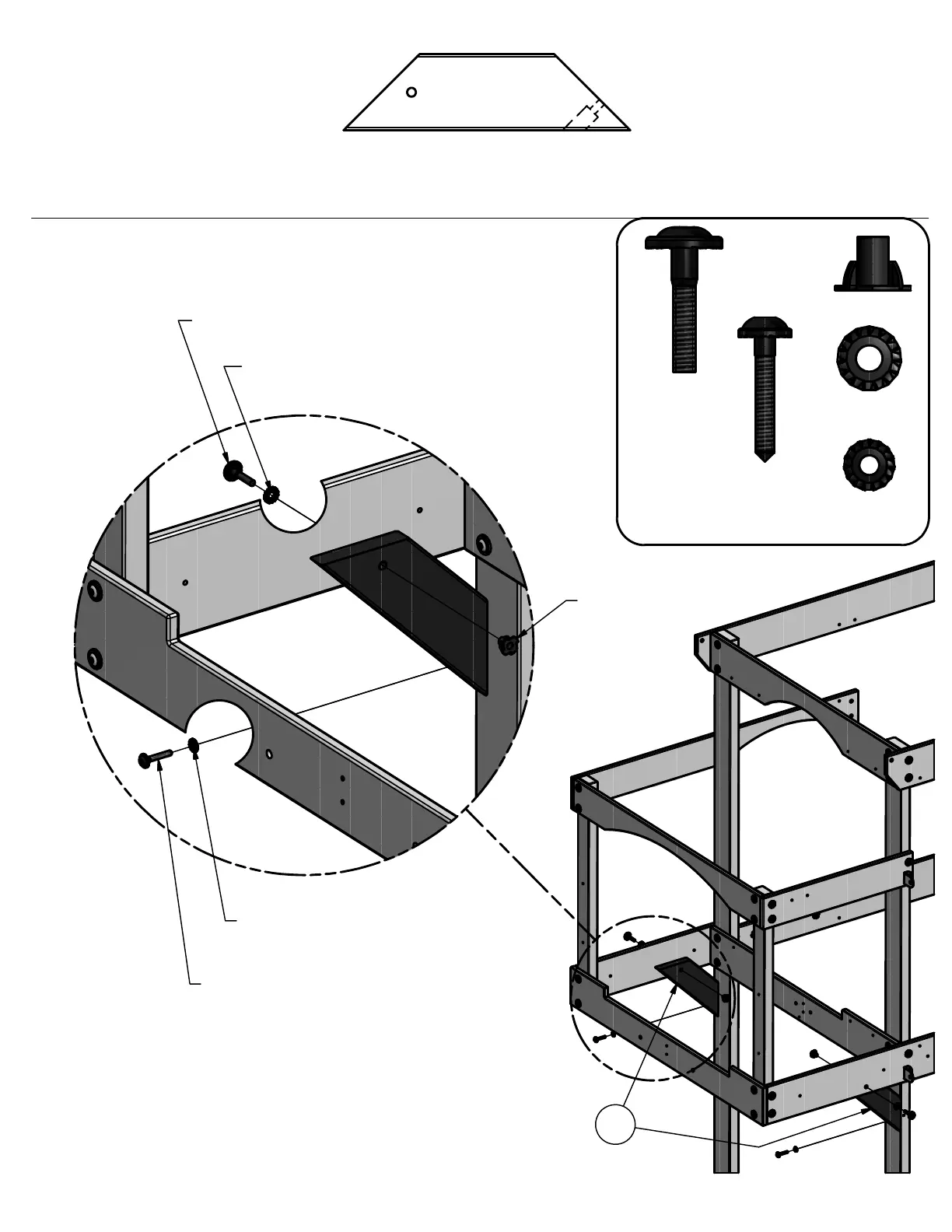

STEP 7
INSTALL T-NUTS INTO PARTS BEFORE ASSEMBLY OF
PARTS.
WASHER
LOCK EXT
8x19 BLK
(2)
T-NUT 5/16
BLK
(2)
LAG SCREW
WH 1/4x1-1/2
BLK
(2)
BOLT WH
5/16x1 1/2
BLK
(2)
T-NUT 5/16 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x1 1/2 BLK
(2 PLCS)
LAG SCREW WH 1/4x1-1/2 BLK
(2 PLCS)
WASHER LOCK EXT 6x15 BLK
(2 PLCS)
H4
WASHER
LOCK EXT
6x15 BLK
(2)
H4 - DECK BRACE - W4L07616
1"x3 3/8"x12 3/4" (24x86x325)

