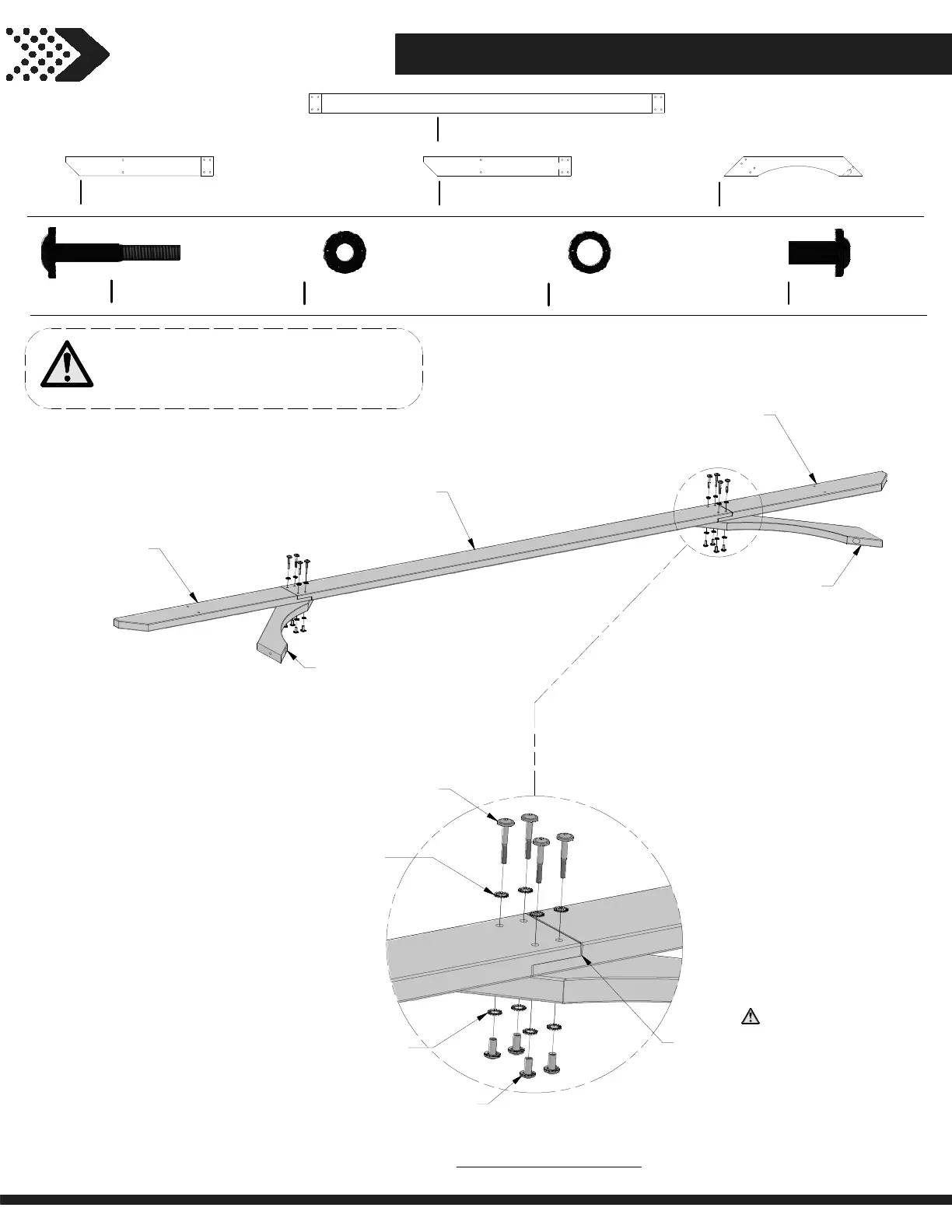

Backyard Discovery SOMERVILLE - Step 2: Inner Joist Assembly

NOTES:
192 (x4)
NUT BARREL - 7/8"
199 (x4)
WASHER - 12x19
198 (x4)
WASHER - 8x19
205 (x4)
BOLT - 2 1/4"
D05 (x1)
JOIST END
D02 (x1)
JOIST
D03 (x1)
JOIST END
D11 (x1)
LONG ANGLE BRACE
D11 (x1)
LONG ANGLE BRACE
JOIST - W4L13796
1 3/8"x5 1/4"x95 1/4" (36x134x2420)
D02
(x2)
NOTE OVERLAP AND
BOARD ORIENTATION.
REPEAT STEP TO COMPLETE TWO
INNER JOIST ASSEMBLIES.
NUT BARREL WH BLK
5/16x7/8
(x16)
H100192
WASHER LOCK EXT BLK
12x19
(x16)
H100199
WASHER LOCK EXT BLK
8x19
(x16)
H100198
BOLT WH BLK
5/16x2-1/4
(x16)
H100205
JOIST END - W4L13800
1 3/8"x5 1/4"x39 3/4" (36x134x1008)
D03
(x2)
JOIST END - W4L13795
1 3/8"x5 1/4"x39 3/4" (36x134x1008)
D05
(x2)
LONG ANGLE BRACE - W4L13793
1 3/8"x5 1/4"x37 1/8" (36x134x942)
D11
(x4)
STEP 2
REPEAT ON OPPOSITE END
18
