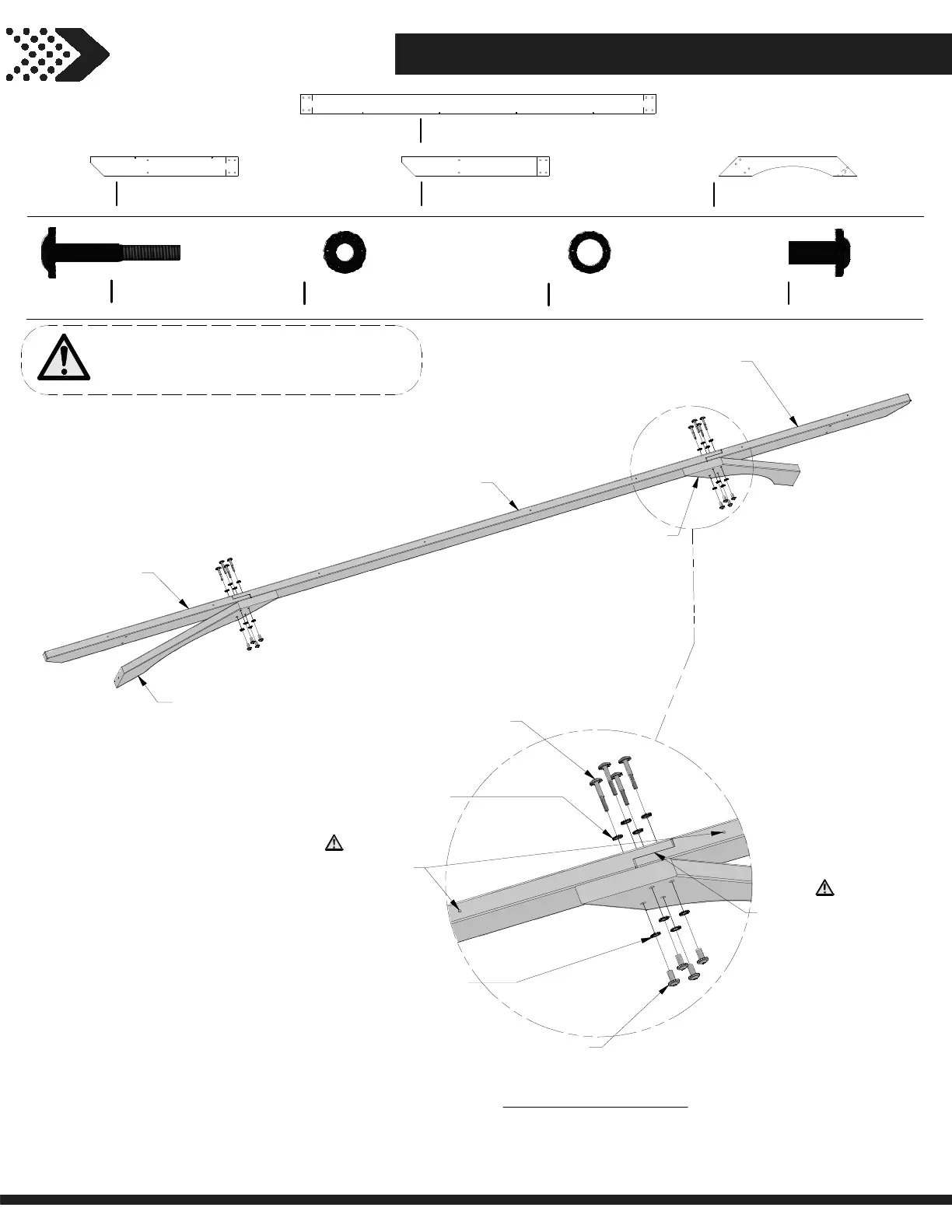

Backyard Discovery SOMERVILLE - Step 3: Outer Joist Assembly

NOTES:
192 (x4)
NUT BARREL - 7/8"
205 (x4)
BOLT - 2 1/4"
199 (x4)
WASHER - 12x19
198 (x4)
WASHER - 8x19
D06 (x1)
JOIST END
D11 (x1)
LONG ANGLE BRACE
D01 (x1)
JOIST
D04 (x1)
JOIST END
D11 (x1)
LONG ANGLE BRACE
LONG ANGLE BRACE - W4L13793
1 3/8"x5 1/4"x37 1/8" (36x134x942)
D11
(x4)
BOLT WH BLK
5/16x2-1/4
(x16)
H100205
NOTE OVERLAP AND
BOARD ORIENTATION.
WASHER LOCK EXT BLK
8x19
(x16)
H100198
WASHER LOCK EXT BLK
12x19
(x16)
H100199
NUT BARREL WH BLK
5/16x7/8
(x16)
H100192
REPEAT STEP TO COMPLETE TWO
OUTER JOIST ASSEMBLIES.
STEP 3
JOIST - W4L13787
1 3/8"x5 1/4"x95 1/4" (36x134x2420)
D01
(x2)
JOIST END - W4L13786
1 3/8"x5 1/4"x39 3/4" (36x134x1008)
D04
(x2)
JOIST END - W4L13799
1 3/8"x5 1/4"x39 3/4" (36x134x1008)
D06
(x2)
REPEAT ON OPPOSITE END
NOTE PILOT HOLES
ON TOP OF JOIST.
19
