Backyard Play Systems 5027 - Page 34

30

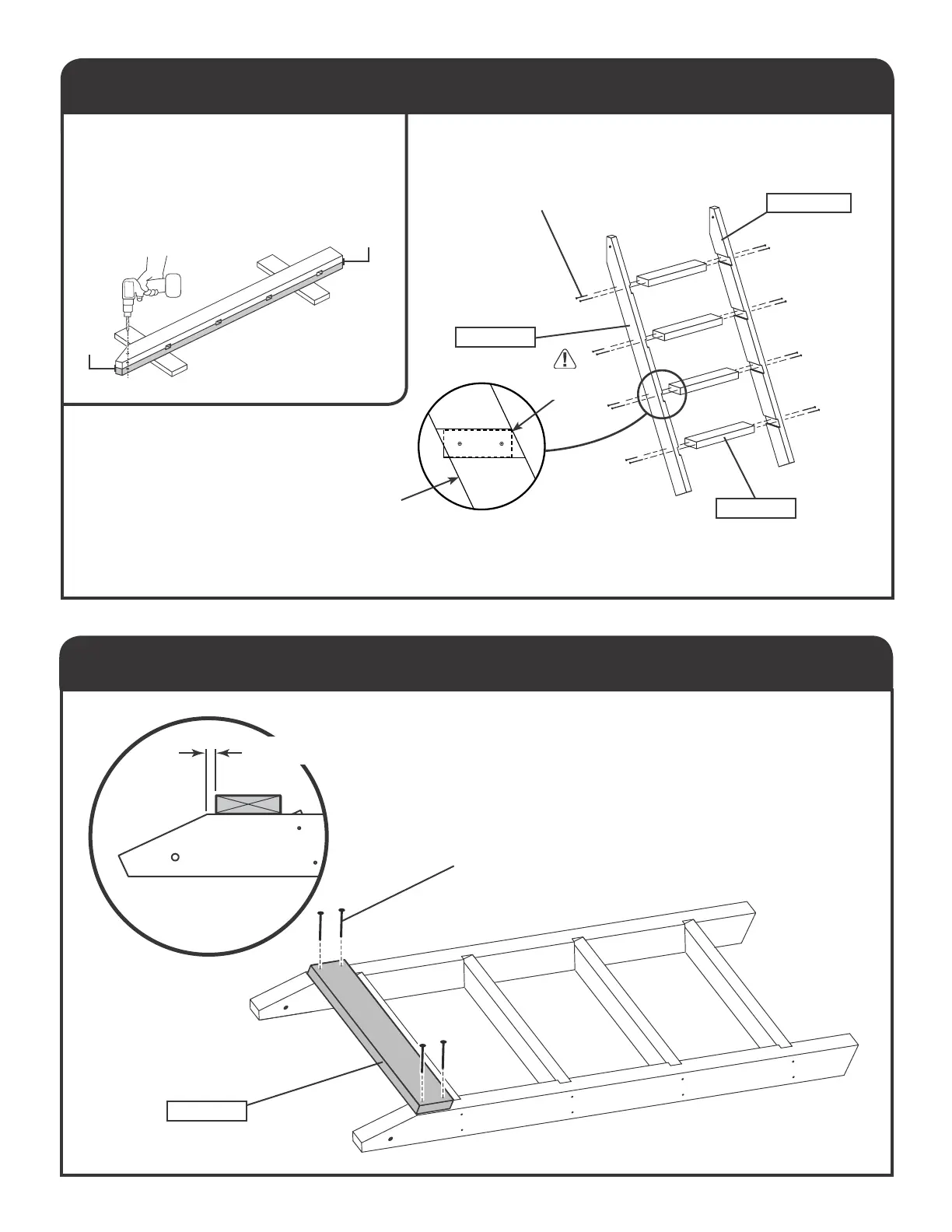

STEP LADDER
ASSEMBLE
ASSEMBLE
STEP LADDER
2-1/2" Wood screws
1/2" From Angle
x1
1 x 3-1/2 x 17"
2222-CC
x4
2-1/2" Wood Screws x16
Back side
of ladder
Before Assembling Step Ladder:
1. Stack and align parts as shown with 2522-CC
on top.
2. Hold parts and drill 3/8" hole through 2521-CC
using 2522-CC as a guide.
3. Holes must be exactly aligned.
x4
1 x 3-1/2 x 15-3/8"
2524-CC
x1
1-3/8 x 3-3/8 x 51"
2521-CC
Flush to
front face.
1-3/8 x 3-3/8 x 51"
x1
2522-CC
Flush
Flush
