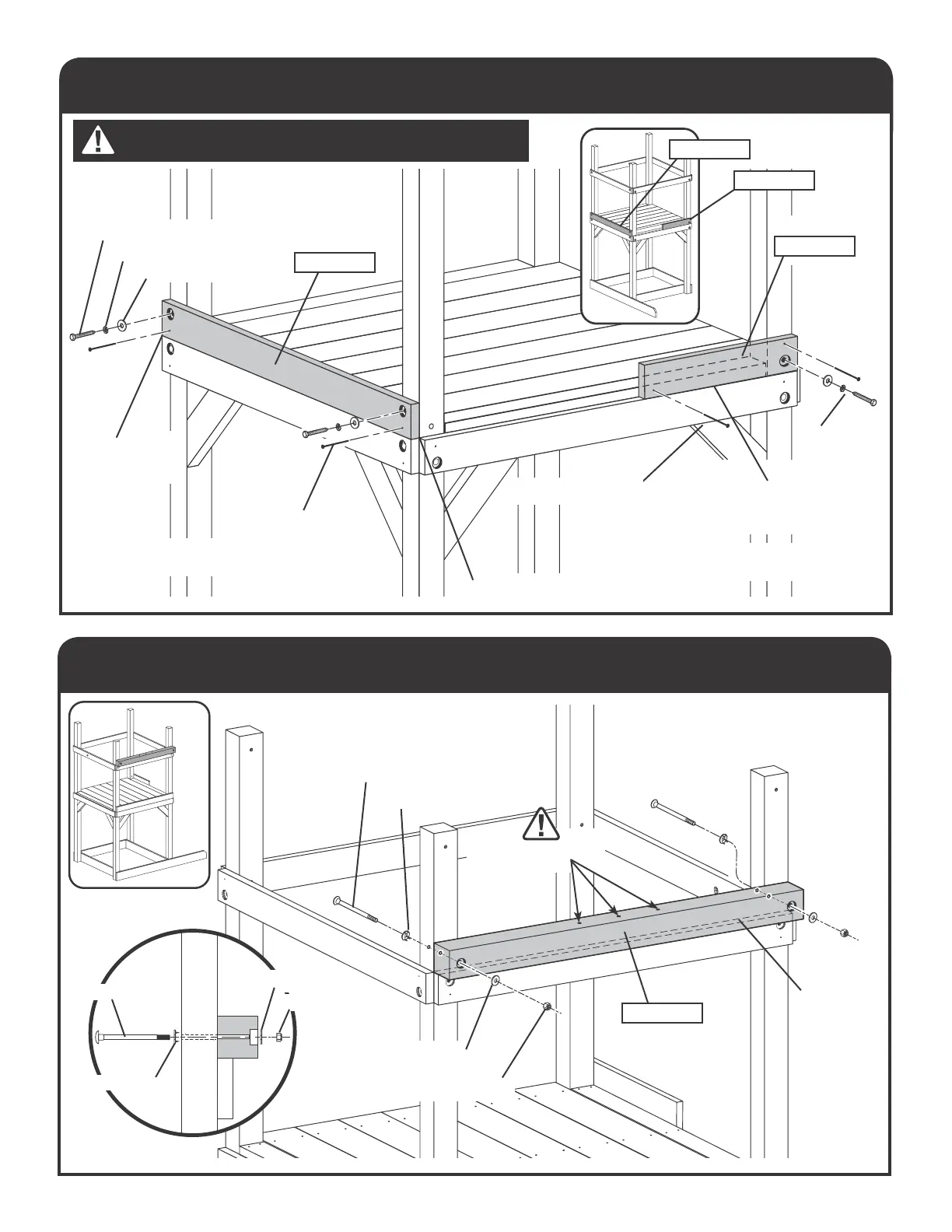

Backyard Play Systems 5027 - Front Side; Right Side

22
FORT
BALUSTER SUPPORT
Flush at all corners.
Flush at all
corners.
x3
x1
3" Lag Bolt
Lock Washer
Flat Washer
3" Wood Screws
Mark and drill 1/4" x 2" DEEP pre-drill before installing lag bolts.
RIGHT SIDE
FRONT SIDE
x3
FORT
SWING BEAM SUPPORT
Small Holes UP
6" Carriage Bolt
Flat Washer
Lock Nut
Torque Washer
x2
x2
x1
2505-CC
3 x 3 x 45-1/8"
SIT ON RAIL
Bottom rests ush
on lower brace.
Flat Washer
Lock Nut
Torque Washer
6" Carriage Bolt
2501-CC
2862-CC
x1
1 x 3-1/2 x 45-1/8"
2501-CC
3" Wood
Screw
2" Wood Screw
x1
1 x 3-1/2 x 19-1/4"
2862-CC
