68

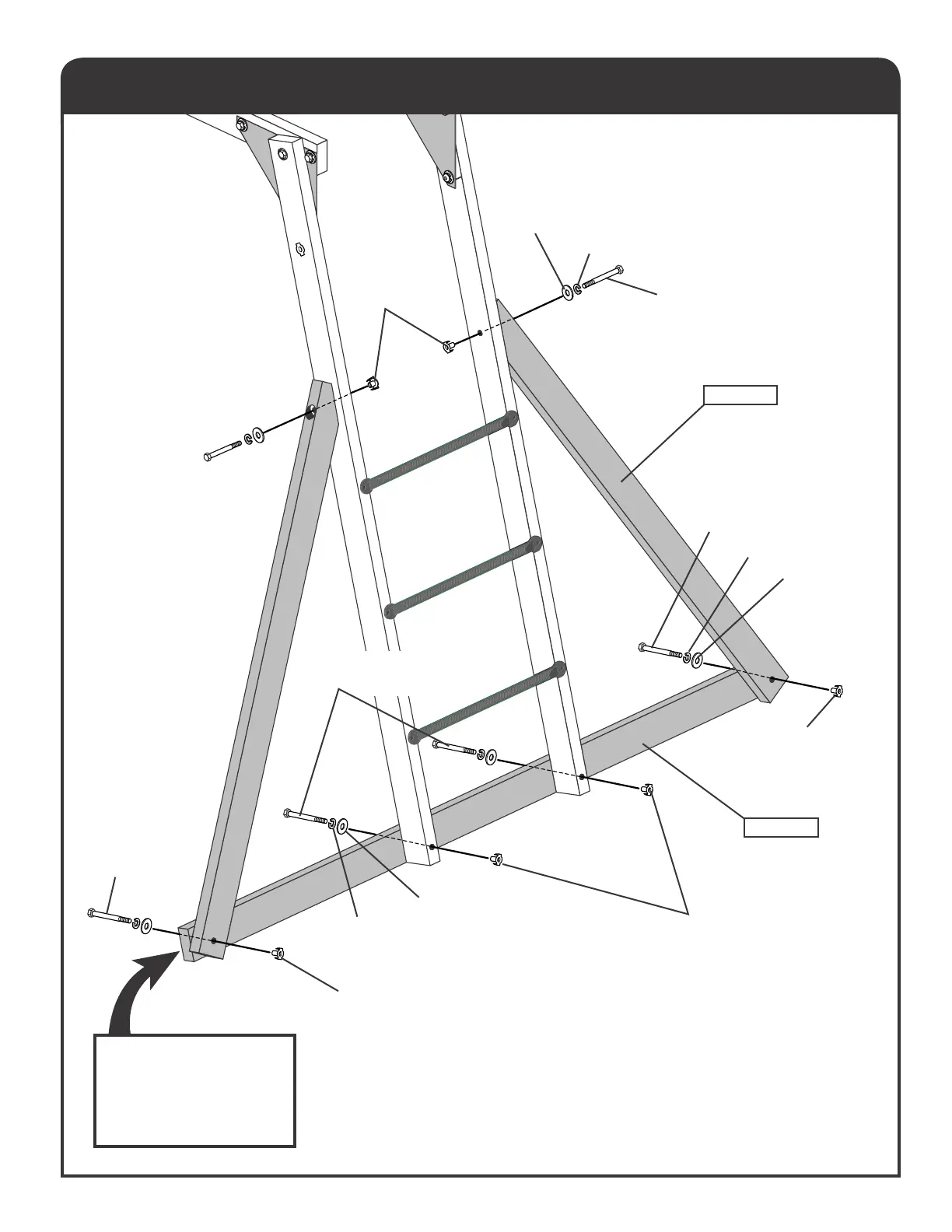

ANGLE BRACES / BOTTOM SUPPORT
3-3/4"
Hex Head Bolt (x2)
Lock Washer
Flat Washer
T-Nut
T-Nut
Lock Washer
Flat Washer
T-Nut (x2)
2-3/4"
Hex Head Bolt (x2)
Lock Washer
Flat Washer
T-Nut
x2
1-1/2 x 3-1/2 x 57"
1016-CC
4-1/2"
Hex Head Bolt (x2)
x1
1-1/2 x 3-1/2 x 80-1/2"
1019-CC
NOTE:
Counter-bore of
1019-CC toward
rear side of ladder.
2-3/4"
Hex Head Bolt
MONKEY BAR
