ASSEMBLY INSTRUCTIONS
7
8

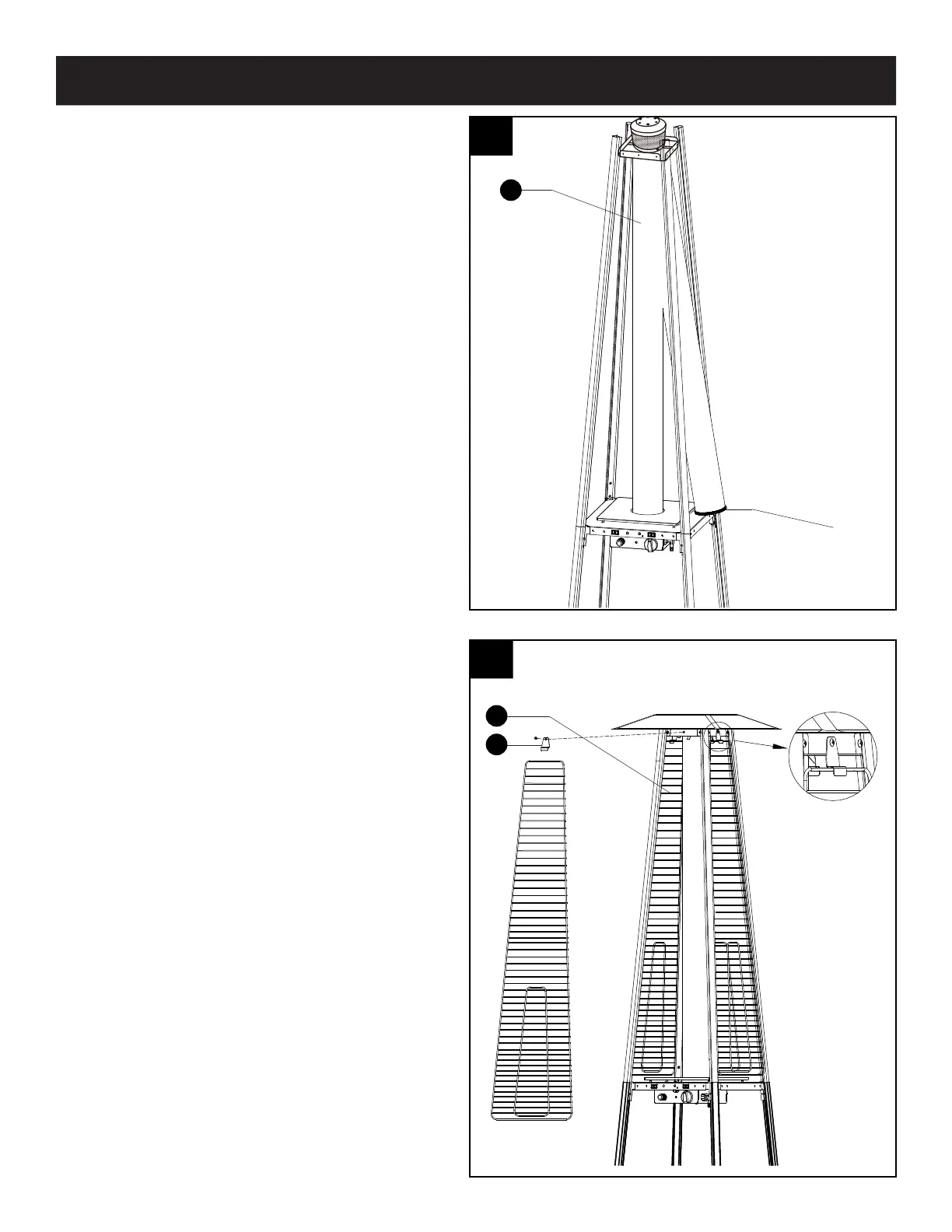

7. Carefully install the glass tube (E) by lifting
up and inserting through the center hole in
the upper plate. Ensure the rubber ring(GG)
is attached to the lower edge of the glass tube
as illustrated. Slide the glass tube through the
hole of the lower plate cover and onto the
middle plate. Check and ensure that
the glass tube is positioned properly and is
completely covering the center hole of the
middle plate.
8. Attach the wire guards(D) ont
o the heater
by inserting the hooks into the holes on the
frame, (ensure that all of the hooks engage).
Unscrew 4pcs screws from damper
Using the (M3/16) screws secure the guards
in place by fastening the fixing brackets (BB)
to the top of the upper plate and over top of
the guards as illustrated. Repeat this
procedure until all guards are installed.
WARNING! The rubber
ring must be in place
prior to operating the heater.
To aid in installation
place rubber
ring(GG) on the
middle plate and
then install glass tube.
Ensure the rim of
the glass tube sits
firmly in the rubber
ring.
GG
D
E
BB
ASSEMBLY INSTRUCTIONS
7. Carefully install the glass tube (E) by
liing up and inserng through the
center hole in the upper plate. Ensure
the rubber ring (GG) is aached to
the lower edge of the glass tube as
illustrated. Slide the glass tube through
the hole of the lower plate cover and
onto the middle plate. Check and
ensure that the glass tube is posioned
properly and is completely covering
the center hole of the middle plate.
8. Aach the wire guards (D) onto the
heater by inserng the hooks into
the holes on the frame (ensure that
all of the hooks engage). Unscrew
4pcs screws from damper using the
(M3/16) screws, secure the guards
in place by fastening the xing
brackets (BB) to the top of the upper
plate and over top of the guards as
illustrated. Repeat this procedure
unl all guards are installed.
WARNING! The rubber
ring must be in place prior
to operang the heater.
