Backyard Pro Patio Series - Control Box and Reflector Installation

8
8
ASSEMBLY INSTRUCTIONS
5
6

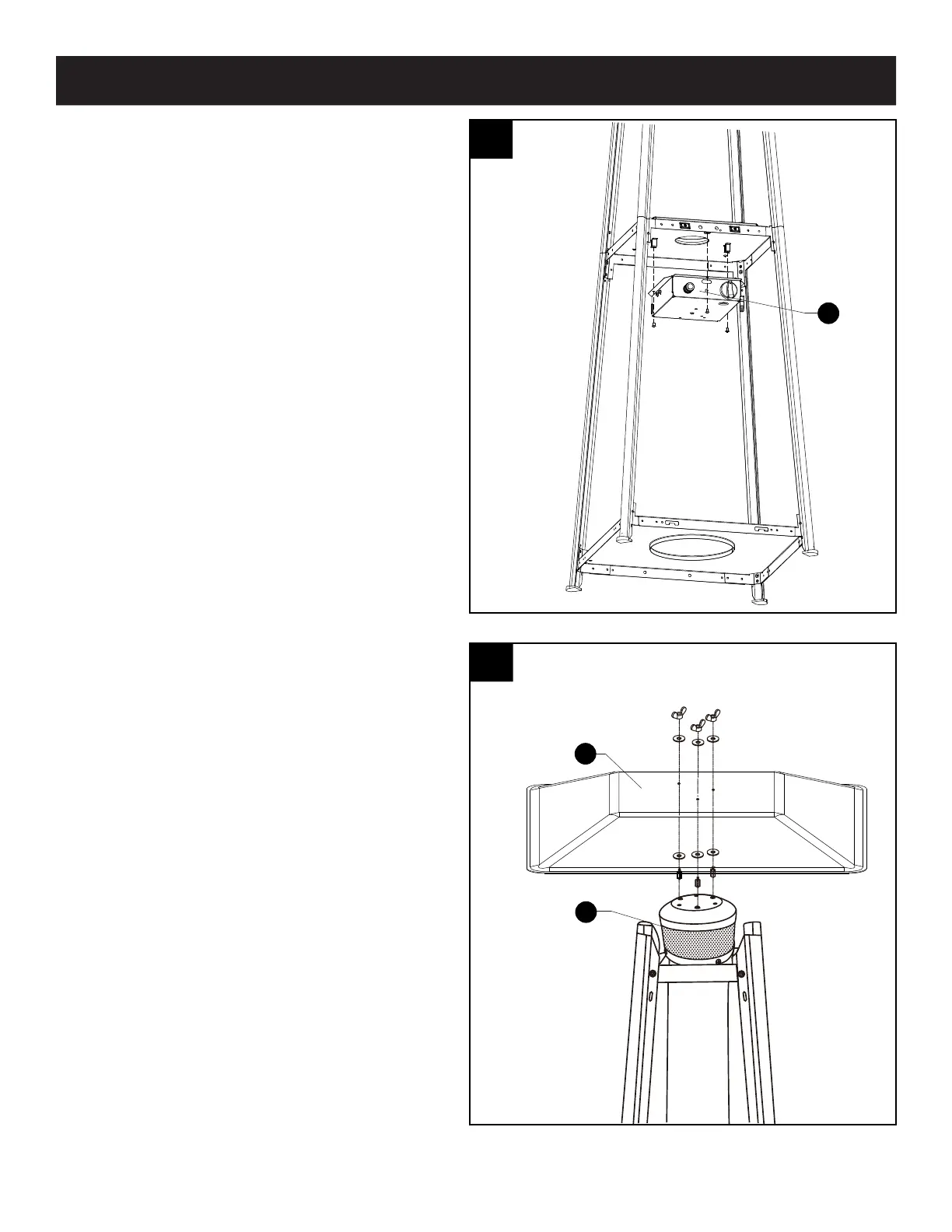

5. Unscrew（M3/16) 4pcs screws from the
bottom of the middle plate(F). Install an
AA battery(EE) into the control box.
Assemble the control box(K) onto the bottom
of middle plate using the (M3/16) screws.
Note : The control knob is to face to the front
of the heater where the magnet is installed in
the middle plate.
6.
A
K
B
Screw the winning screws,washers and
the winning nuts to assemble the reflector(A)
into the damper(B).
5. Unscrew (M3/16) 4pcs screws from the
boom of the middle plate (F). Install
an AA baery (EE) into the control
box. Assemble the control box (K) onto
the boom of middle plate using the
(M3/16) screws. Note: The control
knob is to face to the front of the
heater where the magnet is installed in
the middle plate.
ASSEMBLY INSTRUCTIONS
6. Screw the winning screws, washers
and the winning nuts to assemble the
reector (A) into the damper (B).
