Backyard Products GABLE - TRIM AND ENDCAPS INSTALLATION; PARTS REQUIRED FOR TRIM AND ENDCAPS; ASSEMBLING AND INSTALLING ENDCAPS

53
TRIM / ENDCAPS
Flush
Flush
Flush
Flush
Right - RED
x2
Left - GREEN
x2
FINISH

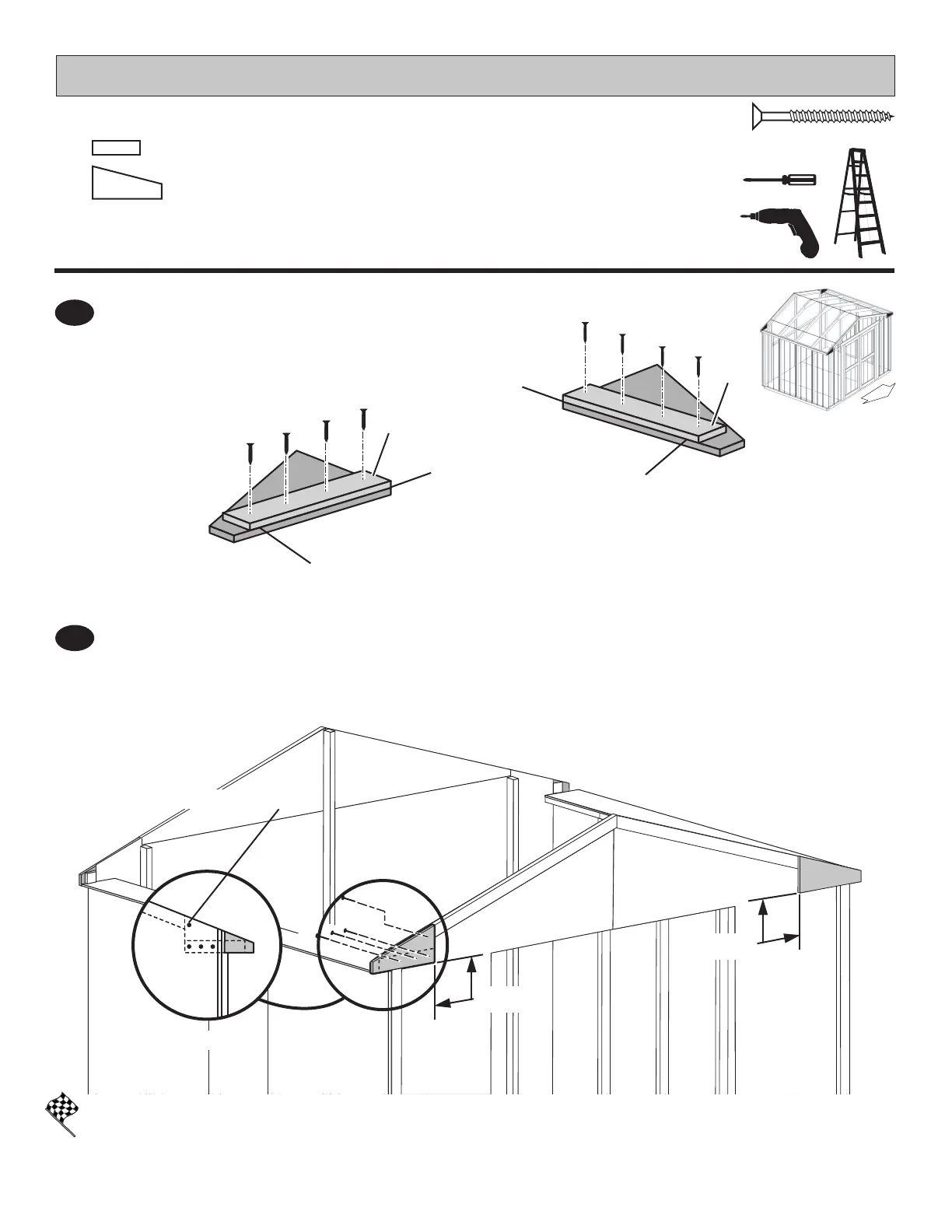

Assemble GBB to endcaps with 1-1/4" screws, as shown.
Your endcaps are completed and installed
Repeat steps to build (2) more endcaps.
BEGIN
¸
1
PARTS REQUIRED:
1-1/4" (3,2 cm)
x14
GBB
GBB
DOOR
x4
1 x 3 x 7-1/2" (2,5 x 7,6 x 19 cm)
GBB
x4
3/4 x 5-1/8 x 8-3/8" (1,9 x 13 x 21,3 cm)
LEFT PAINTED GREEN
RIGHT PAINTED RED
(4) 1-1/4" (3,2 cm) Screws
Flush
Flush
Fig. A
Locate endcaps ush with upper trim and corner trim.
Secure each endcap from inside of shed with (4) 1-1/4" screws, as shown (Fig. A).
2
