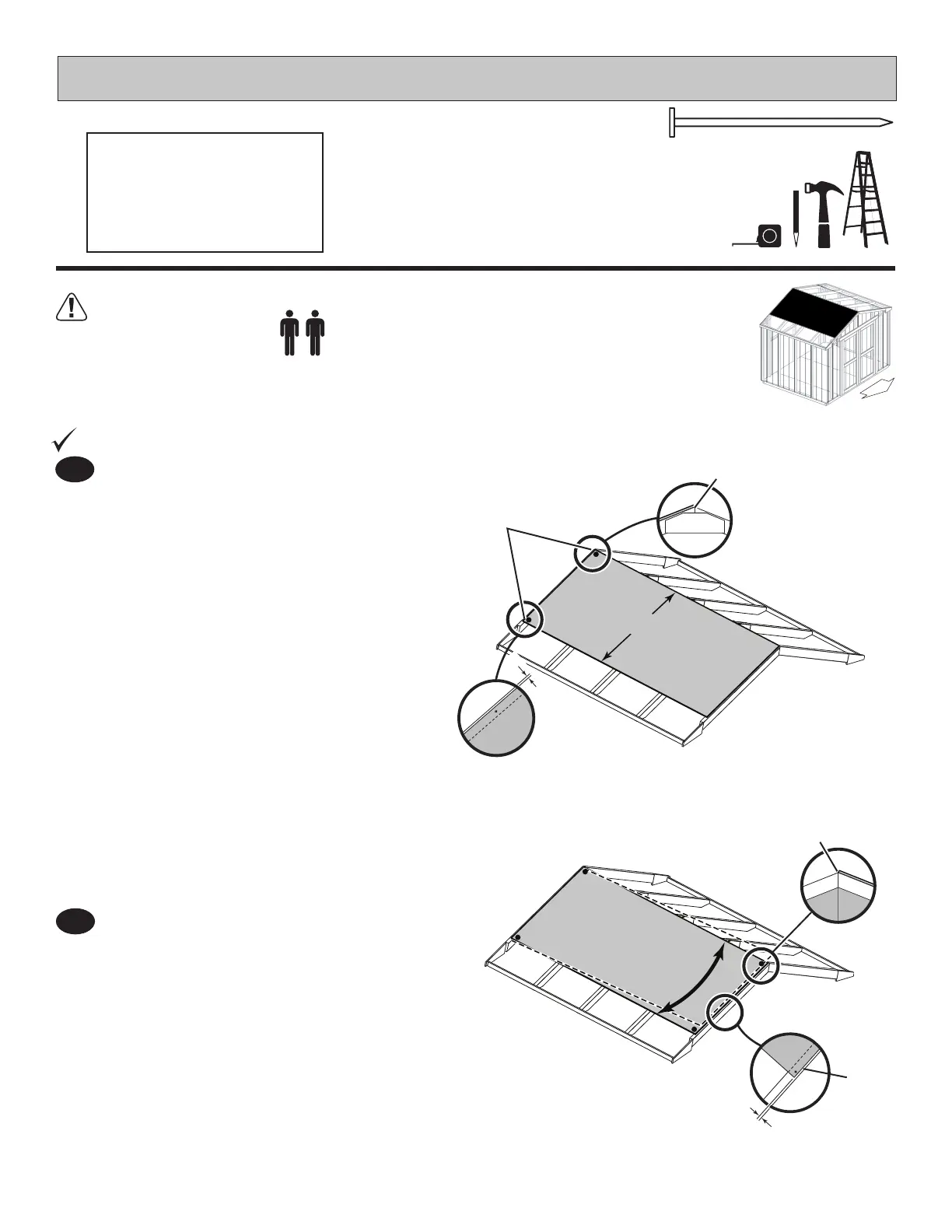

Backyard Products GABLE - ROOF PANELS INSTALLATION; PARTS REQUIRED FOR ROOF PANELS; INSTALLING FIRST ROOF PANEL

55
ROOF PANELS
Move to the opposite end. Using the long
edge of the panel as a lever move the
panel side-to-side until the top corner is
ush to the peak (Fig. C) and there is 1/8"
measurement to the gable trim (Fig. D).
You may need to move your back wall to
get the 1/8" measurement.
Secure panel with 2" nails in the corners.
2
You must square the roof by attaching (1) panel st. You will use the panels’ long
edge as a lever to bring your roof into square. Commonly known as “racking”.
Roof panels may cause serious injury
until securely fastened.
Install (1) 48 x 96" panel with the rough
side up (painted-grid lines side) with a 1/8"
measurement on the rafter (Fig A) and the
panel ush at the peak (Fig. B).
Secure panel with 2" nails
in the corners.
1
BEGIN
(2) Nails
48"
(122 cm)
1/8"
(3 mm)
Fig. A
Flush at peak.
Fig. B
1/8"
(3 mm)
Gable
Trim
Fig. D
Flush at peak.
Fig. C
DOOR
2" (5 cm)
PARTS REQUIRED:
x 4
7/16 x 48 x 96"
(1,1 x 122 x 244 cm)
x2
