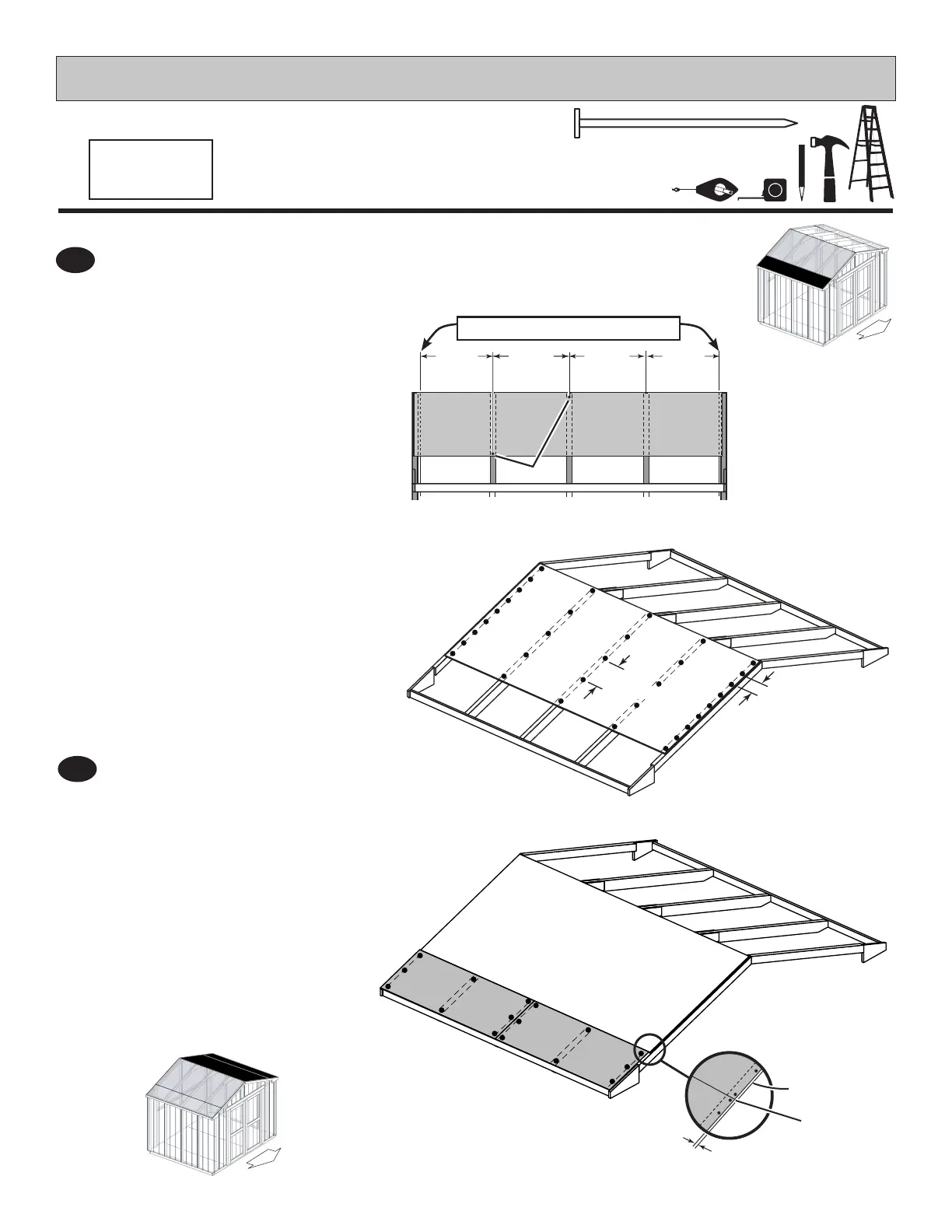

Backyard Products GABLE - ROOF PANELS INSTALLATION CONTINUED; INSTALLING INTERMEDIATE ROOF PANELS; INSTALLING LOWER ROOF PANELS

56
ROOF PANELS
Keep spacing between the center of
the rafters at the lower edge of the
panel and secure with (1) 2" nail into
each rafter (Fig. E).
Move to the top of the panel and keep
spacing between the center of the
rafters. Secure with (1) 2" nail into
each rafter (Fig. E).
Secure the roof panel with 2" nails
spaced 6" apart on edges and 12"
apart inside panel (Fig. F).
3
Install the lower roof panels ush
to the upper panels and with a 1/8"
measurement at the gable trim (Fig.G).
Nail the roof panel using 2" nails spaced
6" apart on edges and 12" apart inside
panel.
Repeat process to attach roof
panels on the opposite side.
4
12"
(30,5 cm)
6" (15 cm)
Fig. F
PARTS REQUIRED:
2" (5 cm)
x104
22-1
/
4"
(56,5 cm)
22-1
/
4"
(56,5 cm)
24"
(61 cm)
24"
(61 cm)
Fig. E
NOTE: Measurements from inside of panels
2" Nail
7/16 x 19 x 48"
(1,1 x 48 x 122 cm)
x4
DOOR
DOOR
1/8"
(3 mm)
Flush
Fig. G
Gable Trim
19"x 48"
19"x 48"
