Backyard GBC1440W User Manual

Outdoor LP Gas Barbecue Grill
Model No. GBC1440W / BY14-101-001-02
4
1
15
23
Parts List
1
Lid Handle
55-22-326
2
Temperature Gauge
55-23-025
3
Warming Rack
55-23-026
4
Cooking Grid (3)
55-23-027
5
Lid*
55-23-046
6
Side Burner Grid
55-23-047
7
Side Burner
55-23-029
8
Right Side Shelf
55-23-030
9
Heat Plate (4)
55-10-156
10
Burner (4)*
55-23-031
11
Grill Body Assembly*
55-24-148
12
Control Knob Bezel (5)*
55-09-006
13
Control Knob (5)
55-24-149
14
Regulator/Hose
Assembly*
55-23-033
15
Left Side Shelf
55-23-034
16
Right Cart Frame
55-23-035
17
Grease Cup
55-11-018
18
Grease Tray
55-23-036
19
Bottle Opener*
55-23-037
20
Left Cart Frame
55-23-038
21
Wheel (2)
55-07-363
22
Axle
55-23-039
23
LP Gas Tank Retainer
Wire
55-23-040
24
Rear Cart Frame Support
55-23-041
25
Cart Frame Support
Wire (2)
55-23-042
26
Foot (2)
55-23-043
27
Upper Front Panel
55-23-074
28
Lower Front Panel
55-23-045
29
Lighting Hook
55-07-331
* Pre-assembled

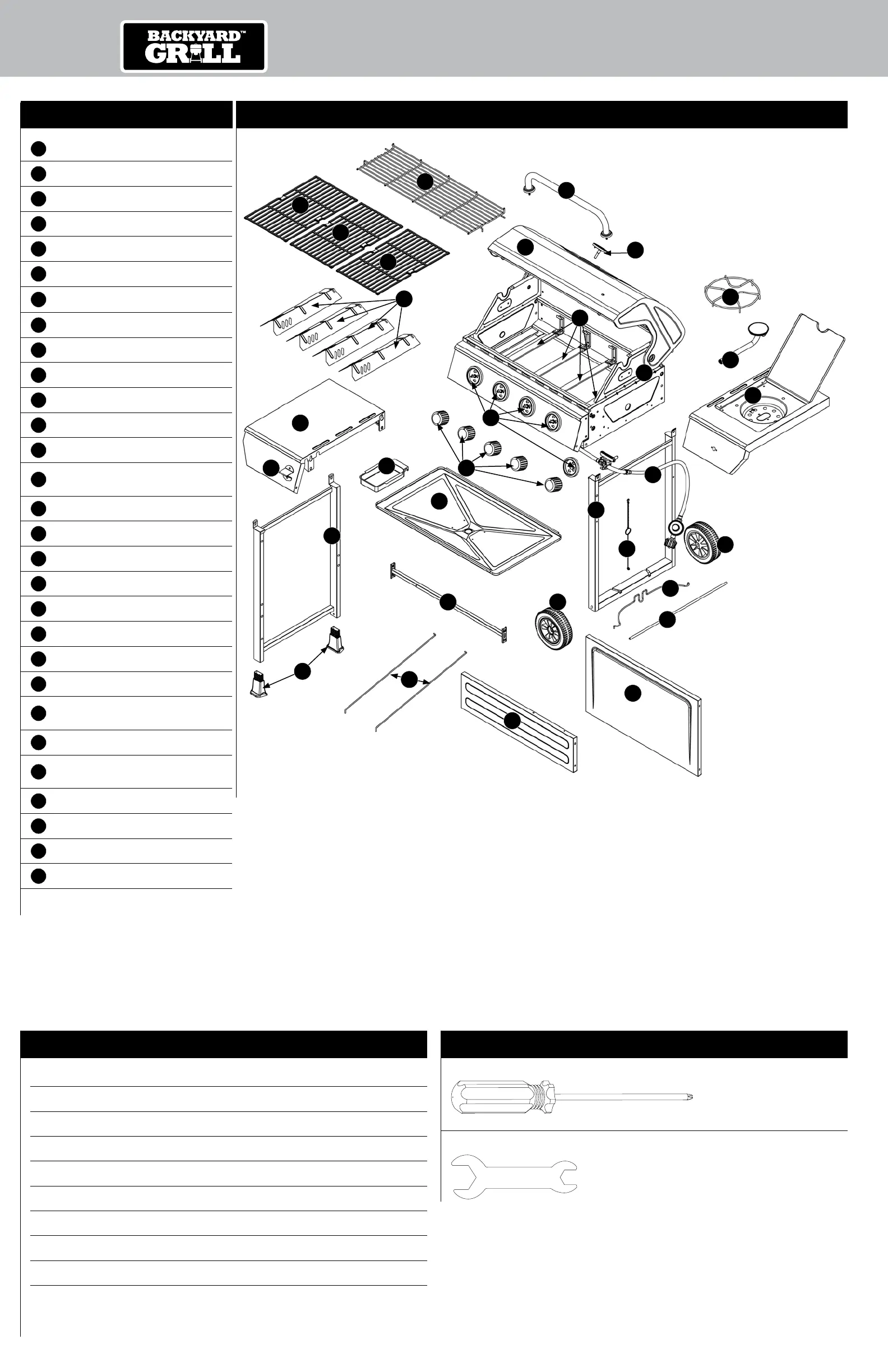

Expanded View
27
16
19
14
3
6
4
4
4
5
7
11
20
24
21
21
25
8
28
2
17
18
26
10
12
13
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 2 pcs
Hardware
A
Screw
ST4.8x10 Nickel Plated Phillips Truss Head
2 pcs
B
Screw
M4x10 Nickel Plated Phillips Truss Head
4 pcs
C
Bolt
M6x16 Nickel Plated Phillips Hex Head
26 pcs
D
Wing Bolt
M6x10 Nickel Plated
1 pc
E
Nut
M10 Nickel Plated
2 pcs
F
Wing Nut
M5 Nickel Plated
2 pcs
G
Wing Nut
M6 Nickel Plated
2 pcs
H
Washer
ø6.4 Nickel Plated
6 pcs
I
Lock Washer
ø6.5 Nickel Plated
6 pcs
9
29
22
