Backyard GBC1690W-C - Page 6

®
Outdoor LP Gas/Charcoal Barbecue Grill
Model No. GBC1690W-C
6

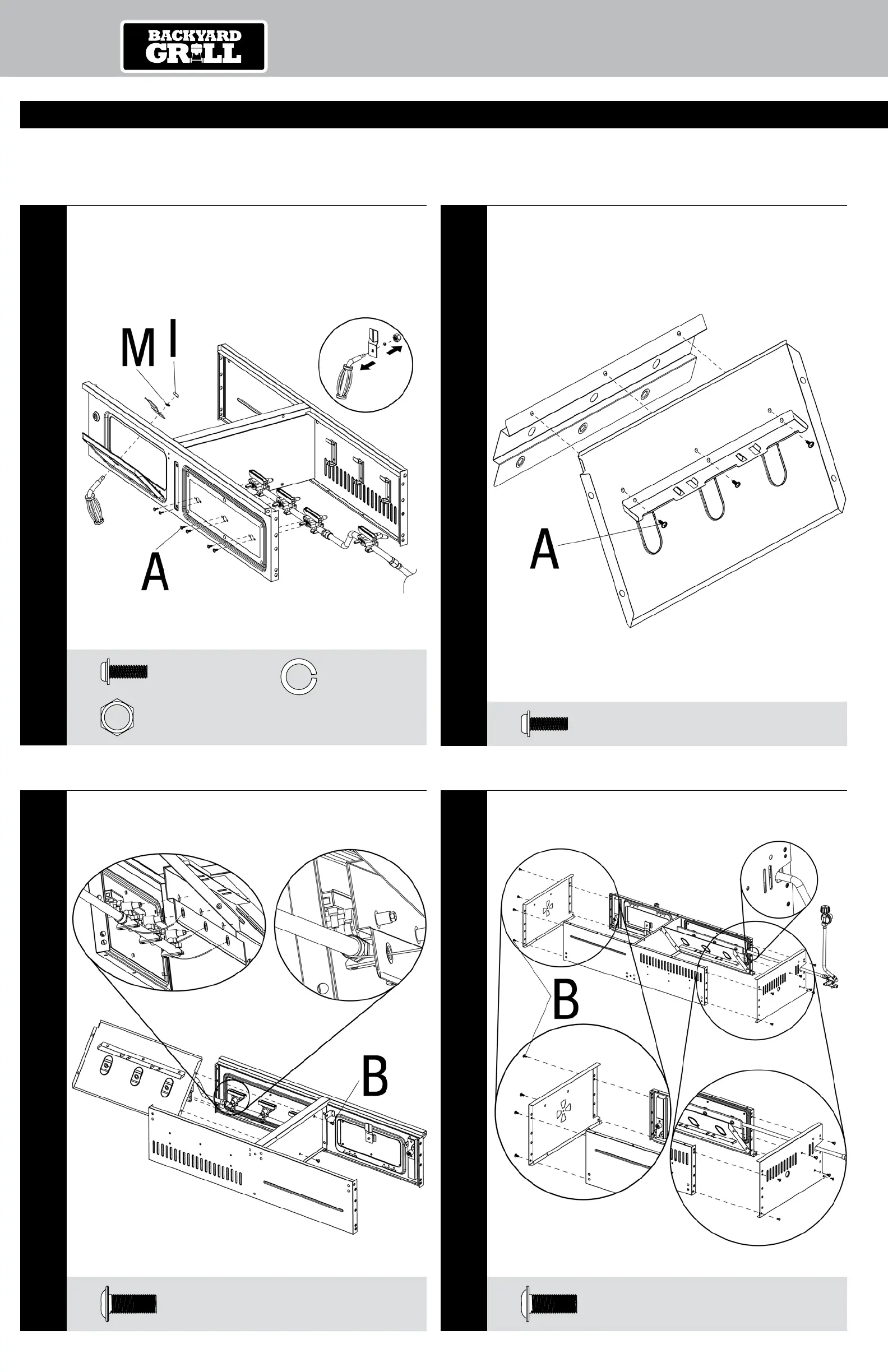

Assembly Instructions (continued)
5
Attach LP Gas Manifold, Regulator/Hose Assembly,
Charcoal Door Handle and Charcoal Door Handle
Support
A
x 6
I
x 1
M
x 1
6
Assemble LP Gas Panel, LP Gas Heat Shield and Front
Heat Plate Support
A
x 3
7
Attach LP Gas Heat Shield
B
x 2
8
Attach Left Panel and Right Panel
B
x 10
