Backyard GBC1703WA-C - Page 11

11

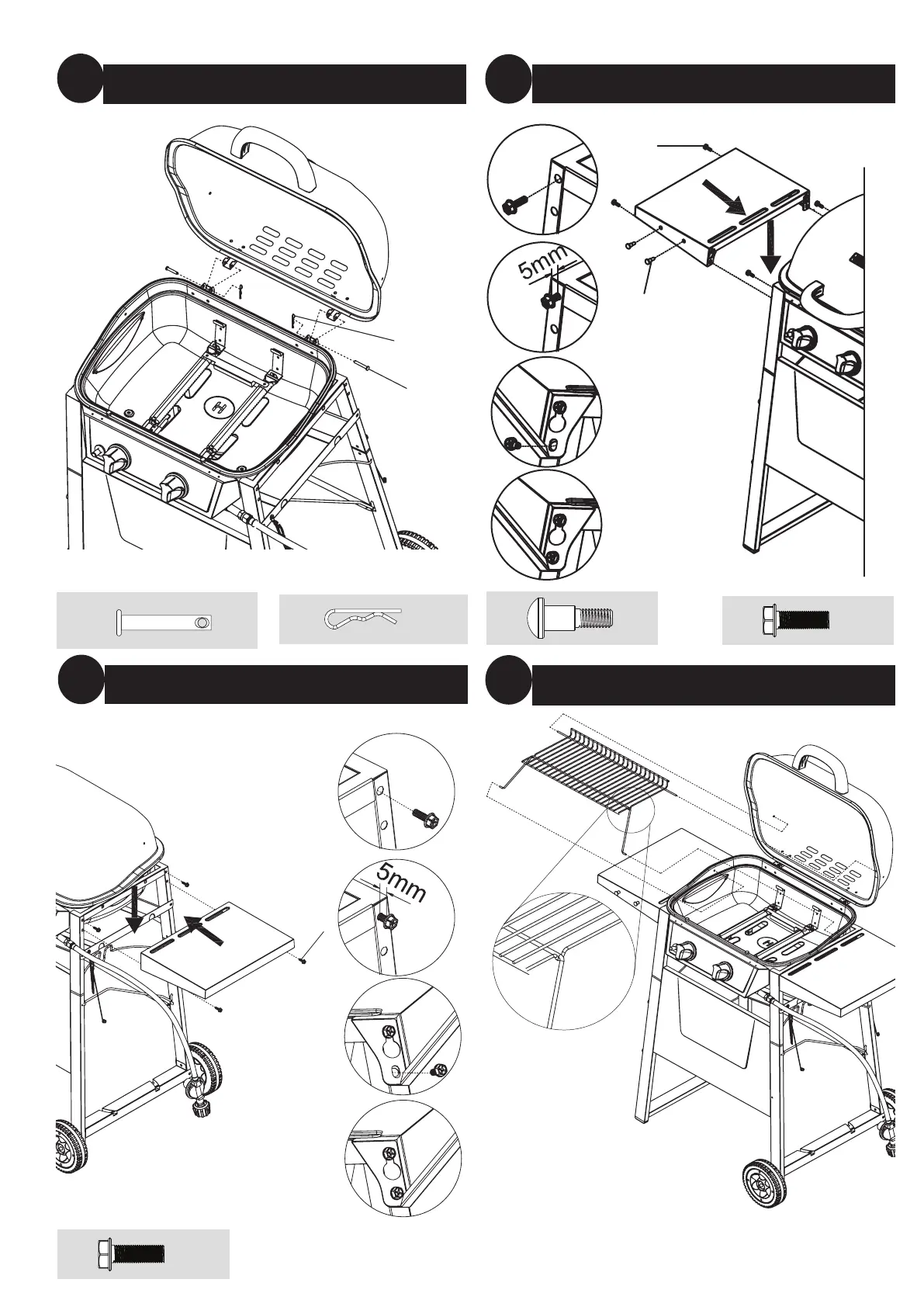

Attach Lid
13
14
Attach Left Side Shelf
Insert Warming Rack
1615
Attach Right Side Shelf
M
x 2
N
x 2
Note: Leave 5 mm of bolt threads expose
D
x 4
C
x 2
Note: Leave 5 mm of bolt threads exposed.
D
x 4
N
M
C
D
2
3
1
4
D
2
3
1
4
