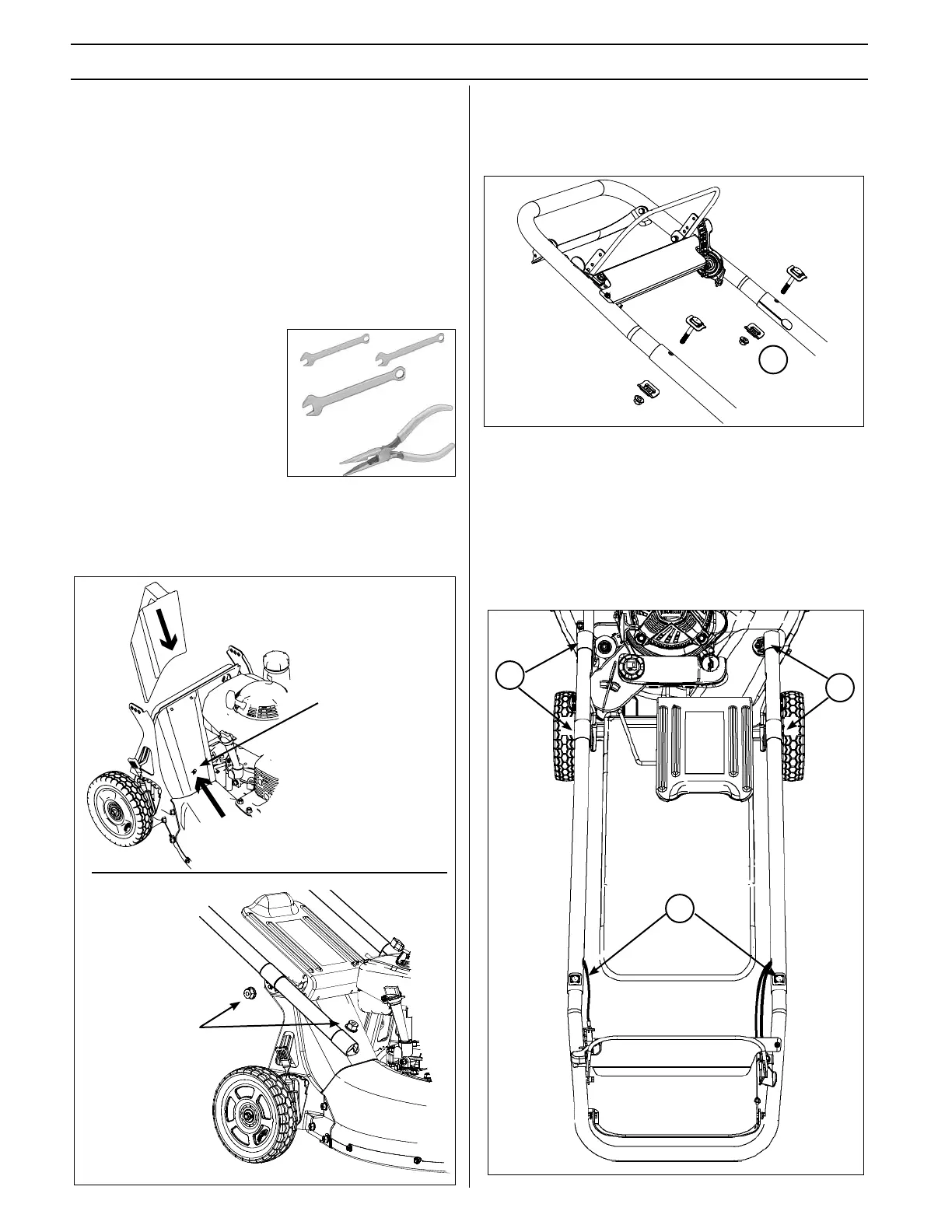

ASSEMBLY - SETUP
STEP 2
Slide the upper handle assembly into the two lower tubes.
Insert the two carriage bolts and use one square washer (1) on
each side of the handle tube.
STEP 3
To simplify the alignment of the handle, install the grass
catcher.
Tighten the bolts in the following order:
1 - Tighten the two bolts crews on the right side tube clamps
2 - Align the left tube with the catcher (same as the right side)
and tighten the clamps.
3 - Tighten the upper bolts that attaches the handle assembly
to the tubes.
Install the right side front
bolt and insert the mulch
plug to hold the bolt
during installation.
Install the nuts fi nger
tight. Tighten completely
in step 3.
1
2
3
STEP 1
Install the black handle tubes to the mower with the M8
carriage bolts. Do not tighten the nuts. There are three holes
for the upper clamp to enable height adjustment. A good start-
ing point is the middle hole for a medium height setting.
UNPACKING:
Carefully remove the mower from its packaging and check that
you have all the following items:
Upper Handle complete
(2) Lower Handle tubes
Mower Bag and Mulch Plug (installed on the mower)
Engine Owner’s Manual and Warranty Statement
BB25 Operator’s Manual.
NOTICE:
If you are missing any of these items or if you are unsure of
how to properly assemble this mower please contact Bad Boy
Mowers by phone: (866) 622-3269
Tools needed for assembly:
2 pcs 10mm wrenches
1 pcs 13mm wrench
1 pcs Needle nose pliers
Needle Nose
Pliers
10 mm
13 mm
10 mm
