Bad Boy MS80B150A21 - Exploded View

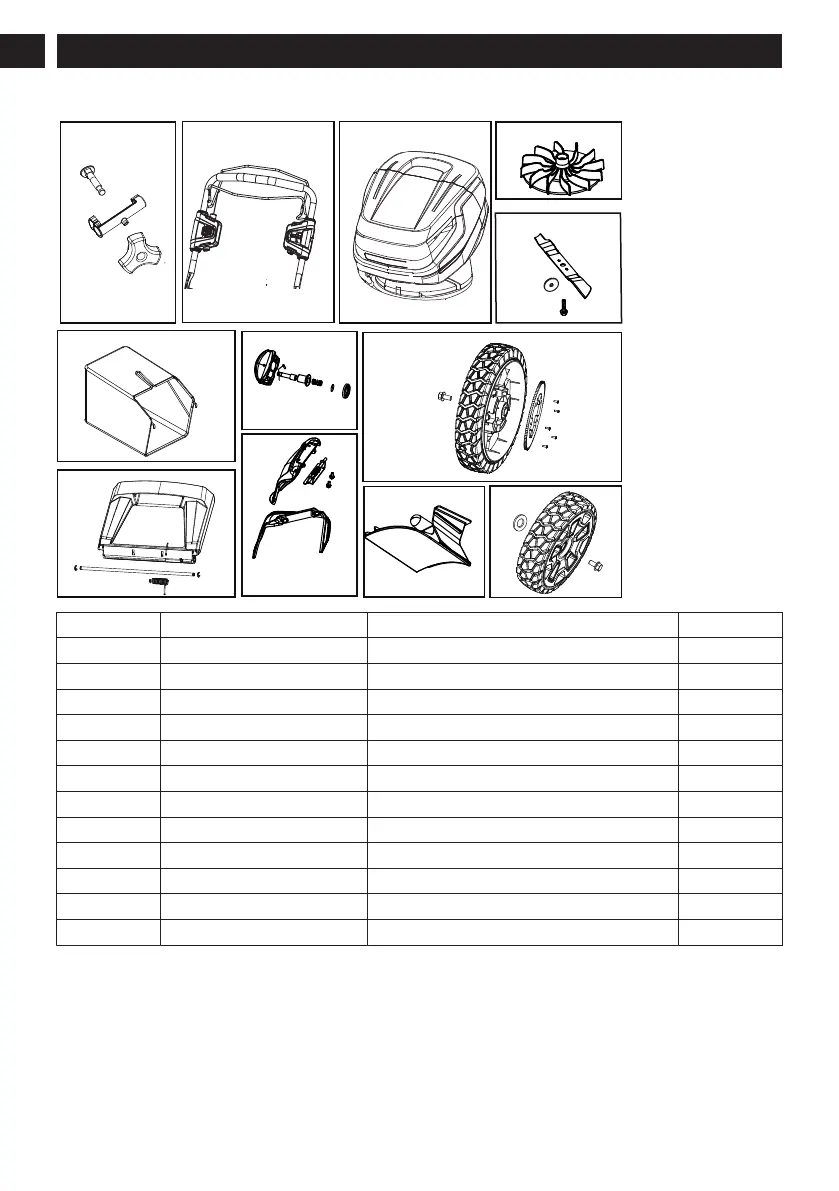

14 EXPLODED VIEW
1
5
6
8
9
7
11
12
2 3 4
10
No. Part No. Description Qty.
1 R0204810-00 Push Handle Knob Assembly 2
2 R0204811-00 Upper Push Handle Assembly 1
3 R0204812-00 Power Head Assembly 1
4 R0204813-00 Fan Blade 1
5 R0204814-00 Blade/Bar Assembly 1
6 R0204815-00 Grass Bag Assembly 1
7 R0202459-00 Push Handle Knob Assembly 1
8 R0200744-00 Rear Wheel Assembly 2
9 R0204816-00 Rear Coverplate Assembly 1
10 R0201028-00 Side discharge cover kit 1
11 R0203356-00 Rear Plug 1
12 0102028-00 Wheel Assembly 2
16
