Bad Boy REBEL Series User Manual

PAGE 26

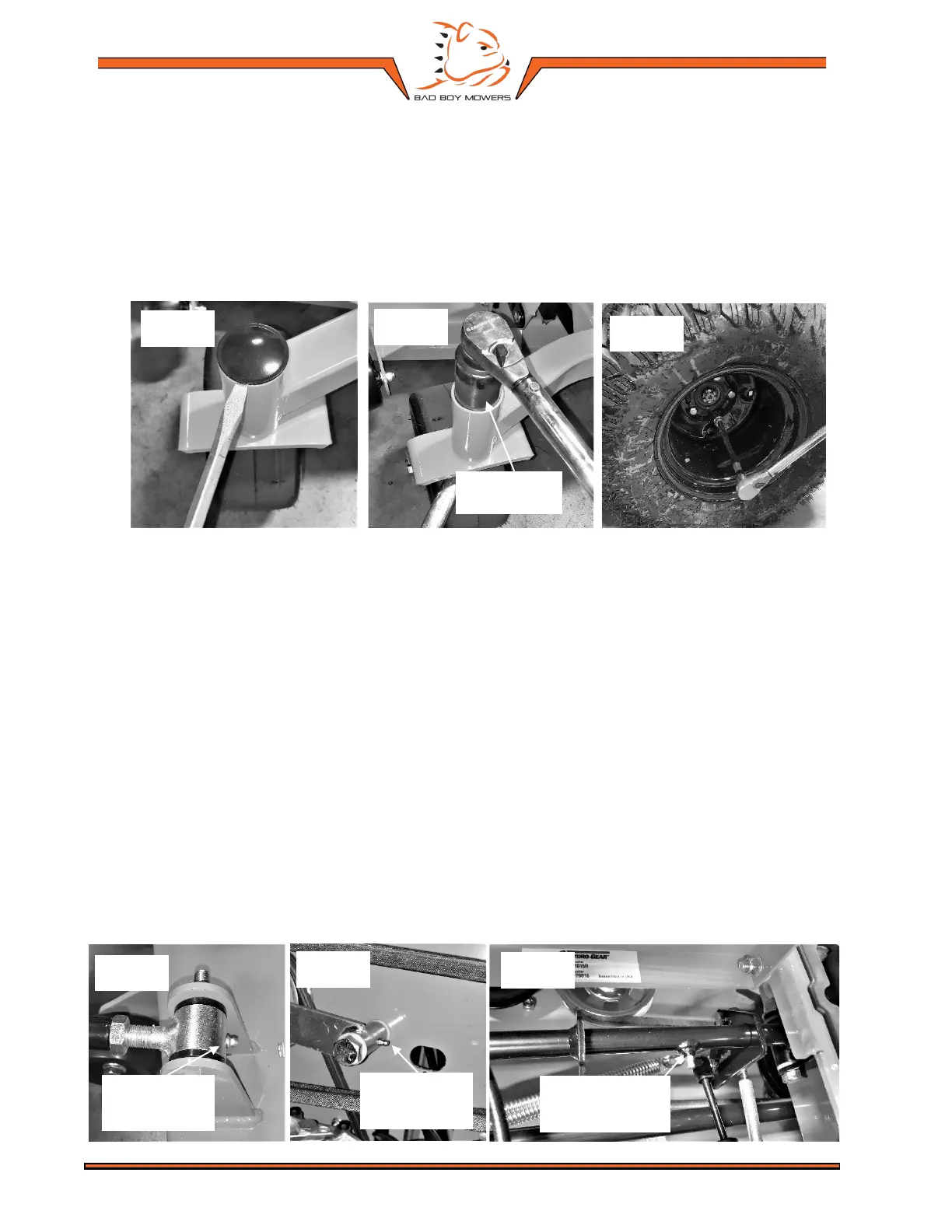

SECTION 15: CASTER AND WHEEL
To access the recessed front fork nuts, remove the dust cap by prying gently using a flat-head screwdriver.
Once cap is removed, a 1 7/16” socket will be needed for top nut. You will need to secure the bolt with a 1 1/2"
wrench. The front fork nuts require a torque of 100ft-lbs. Reapply the dust cap by gently tapping around its
edges. Do NOT hit center of cap.
Torque rear wheel lugs to 65-75ft. lbs. Re-torque at every oil change and before each use.
SECTION 16: GREASE LOCATIONS
There are two grease fittings located on each of the two turnbuckles (4 total).
Grease at every oil change. Fig. 30.
The pump belt tensioner is located under the engine and has a grease fitting at its pivot. Grease at every
engine oil change. Fig. 31.
The control arm actuators have grease fittings located on each tube.
Grease at every engine oil change. Fig. 32.
100 ft.-lbs.
Pump Belt
Grease Zerk
Drive Actuator
Grease Zerk
Turnbuckle
Grease Zerk
Fig. 27
Fig. 28
Fig. 29
Fig. 30
Fig. 31
Fig. 32

Bad Boy REBEL Series Specifications

General

Spindle Material	Cast Iron
Self-Propelled	Yes
Engine Options	Kawasaki
Cutting Width	61 inches
Engine Manufacturer	Kawasaki
Engine Type	Gasoline
Deck Material	Steel
Weight	Varies by model
Mulching Capability	Optional
Horsepower	22 HP, 23 HP, 27 HP
