Bad Boy REBEL Series User Manual

PAGE 27
SECTION 17: CUTTING DECK
DECK BELT REMOVAL
1. Remove ignition key.
2. Raise the deck to its highest position.
3. Remove the pulley covers.
4. Remove belt retainer bolt.
5. While lifting up on the belt (as shown in
Fig. 35.), rotate the pulley until the belt is
free of the pulley. Exercise caution while
performing this step as fingers can easily
become caught between the belt and
pulley.
DECK BELT INSTALLATION
1. Remove ignition key.
2. Raise the deck to its highest position. If needed
loosen the deck belt tensioner to its weakest
installed position.
3. Take off both pulley covers and route the belt by
following the belt route decal. Verify that the belt
is routed properly as improper routing can
damage the spindles as well as the engine.
Improper routing can also increase the potential
personal injury hazard.
4. Install belt retainer bolt.
5. Check belt tension and adjust if needed. See
“ADJUST DECK BELT TENSION”.
6. Reinstall both pulley covers.
Remove
Pulley Cover
Belt Route
Decal
Roll
Belt On
and Off
of Left-
hand
Spindle
Belt Retainer

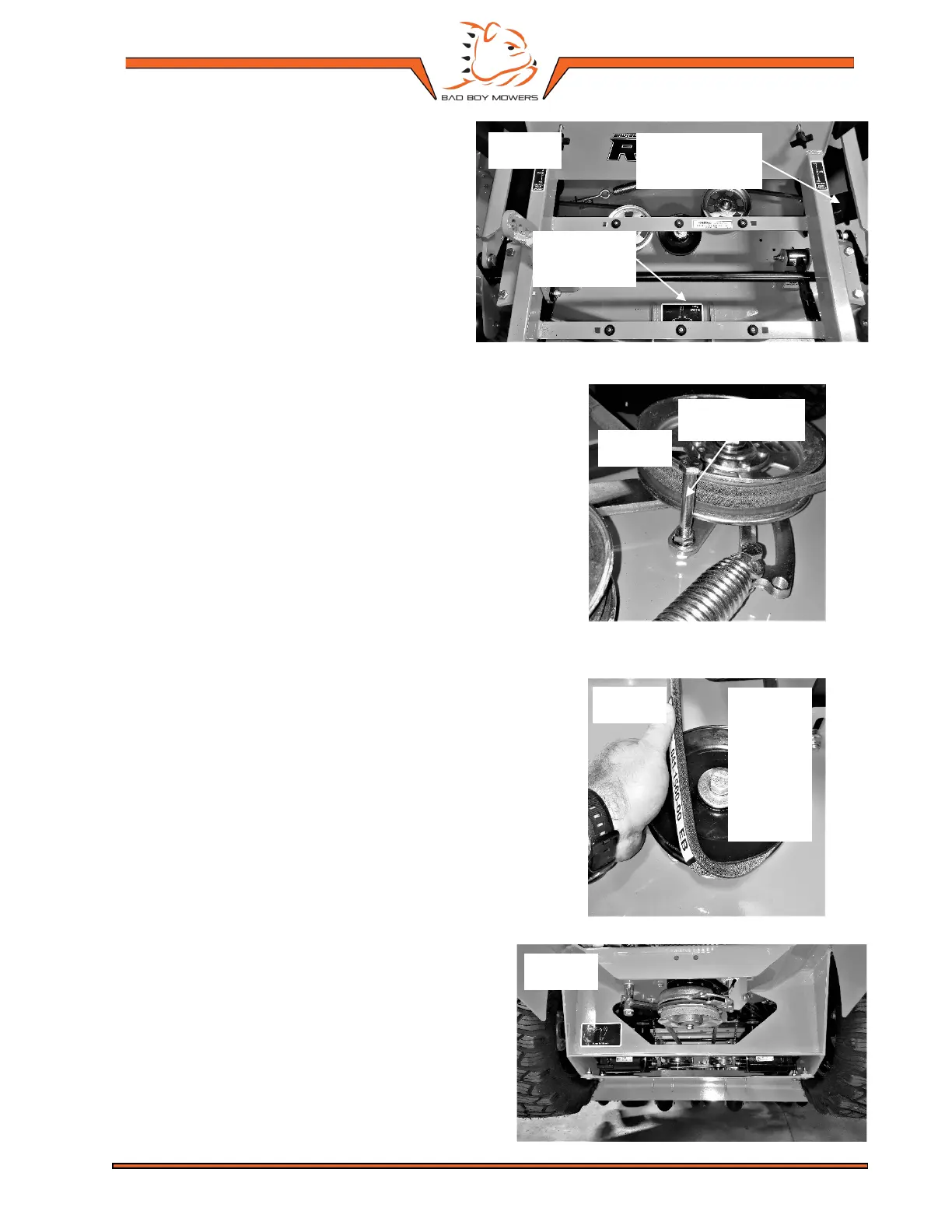

Fig. 33
Fig. 34
Fig. 35
Fig. 36

Bad Boy REBEL Series Specifications

General

Spindle Material	Cast Iron
Self-Propelled	Yes
Engine Options	Kawasaki
Cutting Width	61 inches
Engine Manufacturer	Kawasaki
Engine Type	Gasoline
Deck Material	Steel
Weight	Varies by model
Mulching Capability	Optional
Horsepower	22 HP, 23 HP, 27 HP
