PAGE 12

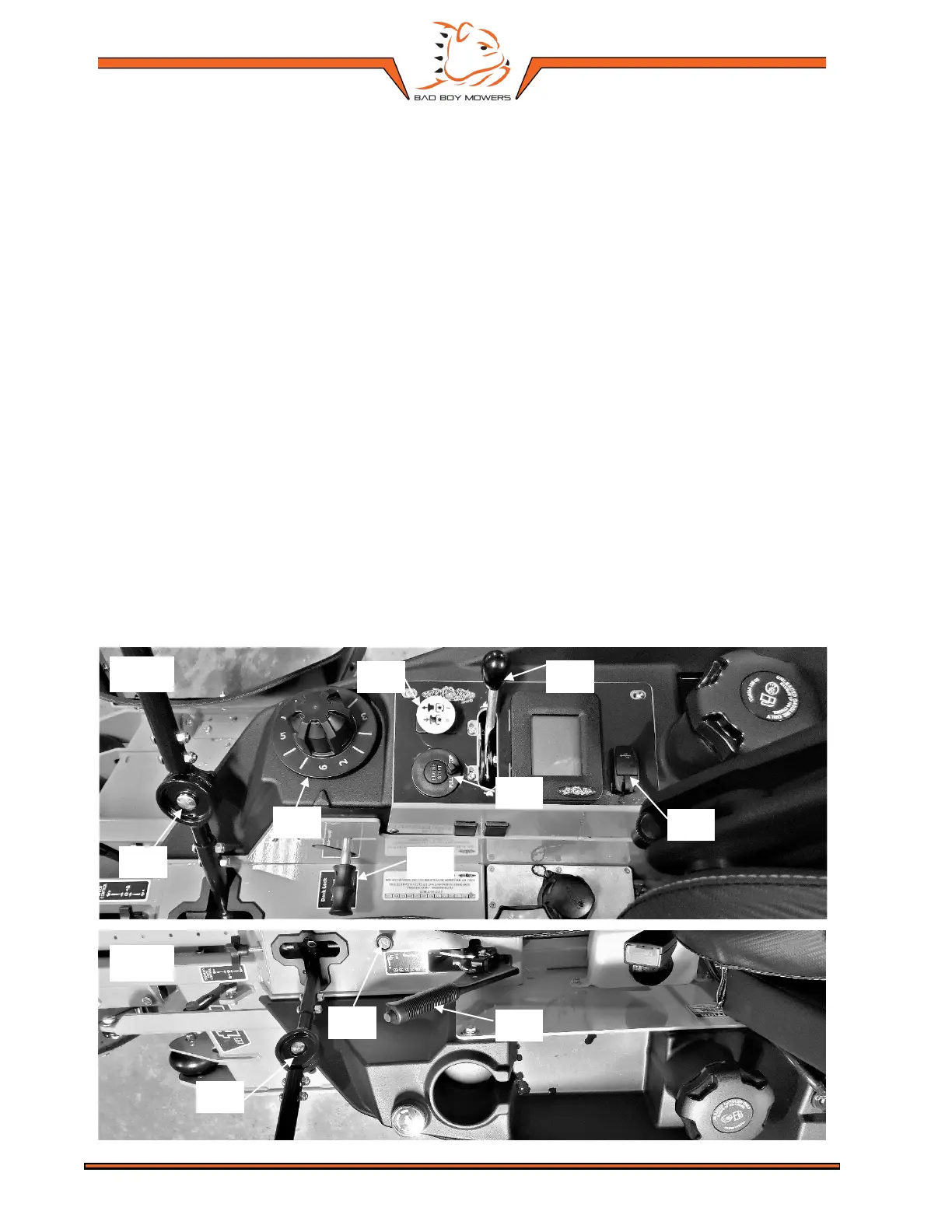

SECTION 7: CONTROLS
7.1 Push Button Ignition Switch: The Renegade utilizes a key fob insert as well as a push button start
feature. To start the mower, fully insert the key fob and press the start button, then release the start
button once the engine has started. To stop engine, pull key fob up to first detent. The key fob can be
removed as necessary.
7.2 Throttle Control: A cable is connected to the engine throttle for controlling engine speed. Move lever
forward to increase engine rpm, move lever backward to decrease engine rpm.
7.3a Choke Control: The choke control, located to the right of the operator’s left, is a ‘push-pull’ type.
When the choke knob is pushed in, the choke is in the off (run) position. When the choke is pulled out it
is in the on (start) position. Do not operate the machine in the on (start) position.
7.3b MIL: EFI machines contain a malfunction indicator light located in place of the choke control knob. This
light indicates a malfunction in the electronic fuel injection system and requires immediate dealer
service.
7.4 Control Levers: These levers control the mower’s speed, direction, and neutral lock. These levers are
used to steer, accelerate, decelerate and change direction.
7.5 Blade Engage Switch: This switch engages the blades. Pull the switch up to engage the blades and
push the switch down to disengage the blades.
7.6 Parking Brake: This lever engages the parking brake. Pull back fully to engage the parking brake;
push forward to disengage.
7.7 USB Charging Port: Your mower is equipped with a USB charging port for your accessory needs.
7.8 Deck Height Control: The deck height dial is used to set the cut of the deck.
7.9 Deck Travel Lock: The deck travel lock holds the deck in a transport position.
