SECTION 12: DRIVE BELT

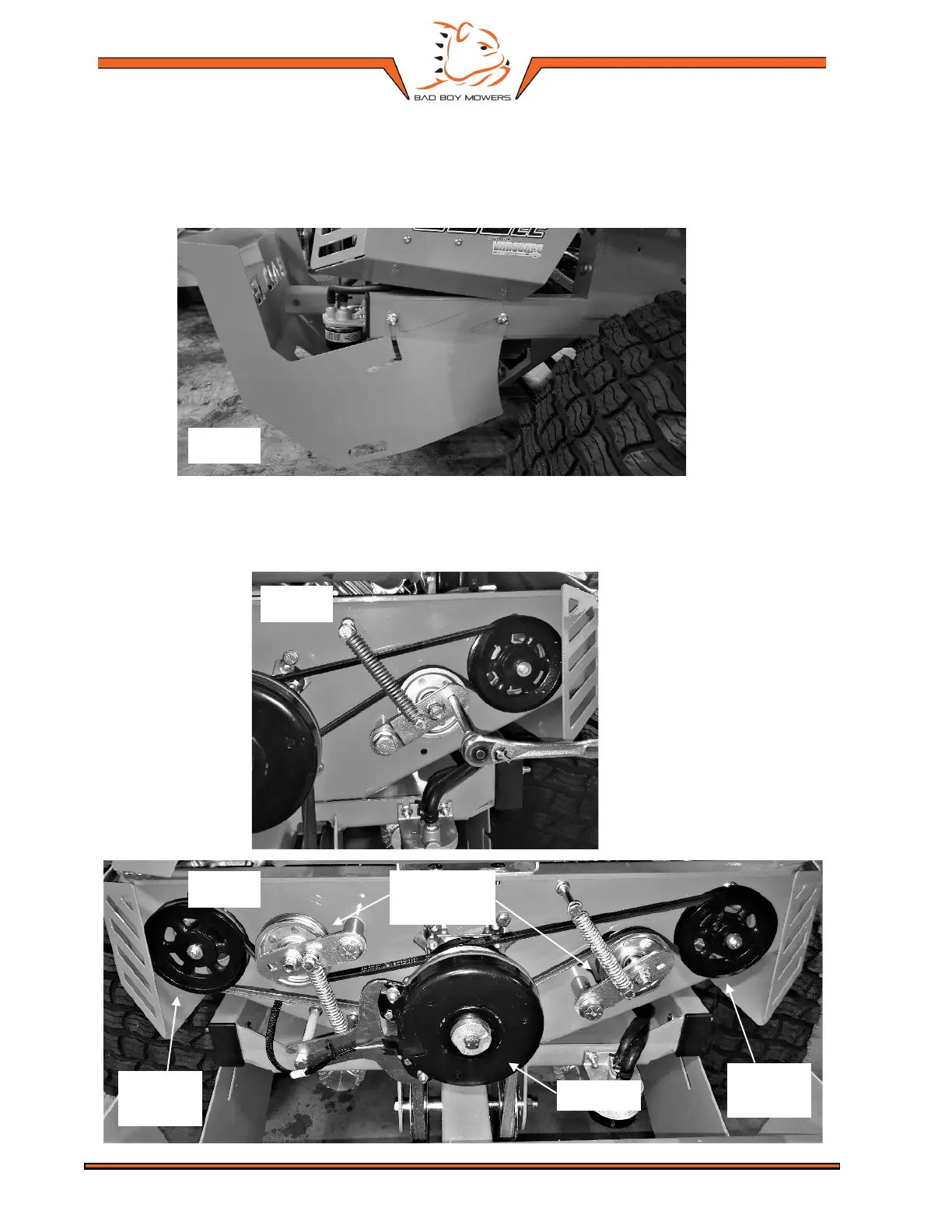

To access the rear of the pump plate, loosen the nuts holding the rear cover in place 1 ½ turns using a 9/16
wrench. Once loosened slide the rear cover rearward until it stops. Then the rear cover will pivot down giving
access to the pump belts, clutch, and oil filter.
The Renegade drive belt utilizes a two-belt system with auto adjusting tensioners. The use of a 3/8 ratchet and
short extension may be required for installation or removal of a drive belt.
Fig. 13
Fig. 14
Fig. 15
Pump
Pulley
Pump
Pulley
Clutch
Drive Belt
Tensioners

Bad Boy RENEGADE Series Specifications

General

Spindle Material	Cast Iron
Horsepower	37 HP
Cutting Width	72 inches
Transmission	Hydro-Gear ZT-4400
Cutting Height	1.5 - 5 inches
