2020 Walk-Behind Control Lever Assembly - Left
031-0043-00
2020 Walk-Behind Control Lever Assembly - Right
035-0007-98
2020 Walk Behind Push Rod Assembly
PARTS SECTION:
PAGE 36
PODIUM SUBASSEMBLIES
031-0042-00 Parts List
DESCRIPTION
PART
NUMBER
QTY
ITEM
1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)024-6034-00195.1
2019 Drive Arm Bushing031-0032-00295.2
2020 Walk-Behind Control Lever Weldment - Left031-0042-01195.3
2019 Stand On Control Grip069-2014-00195.4
031-0043-00 Parts List
DESCRIPTION
PART
NUMBER
QTY
ITEM
1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)024-6034-00196.1
2019 Drive Arm Bushing031-0032-00296.2
2020 Walk-Behind Control Lever Weldment - Right031-0043-01196.3
2019 Stand On Control Grip069-2014-00196.4
035-0007-98 Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
3/8" Left-Handed Fine Threaded Jam Nut013-0016-001107.1
3/8" Fine Threaded Jam Nut013-6051-001107.2
2020 Walk Behind Push Rod (Rod Only)
035-0007-001107.3
Spherical Rod End - Outlaw 048-3000-001107.4
Swivel Heim left handed thread048-3001-001107.5

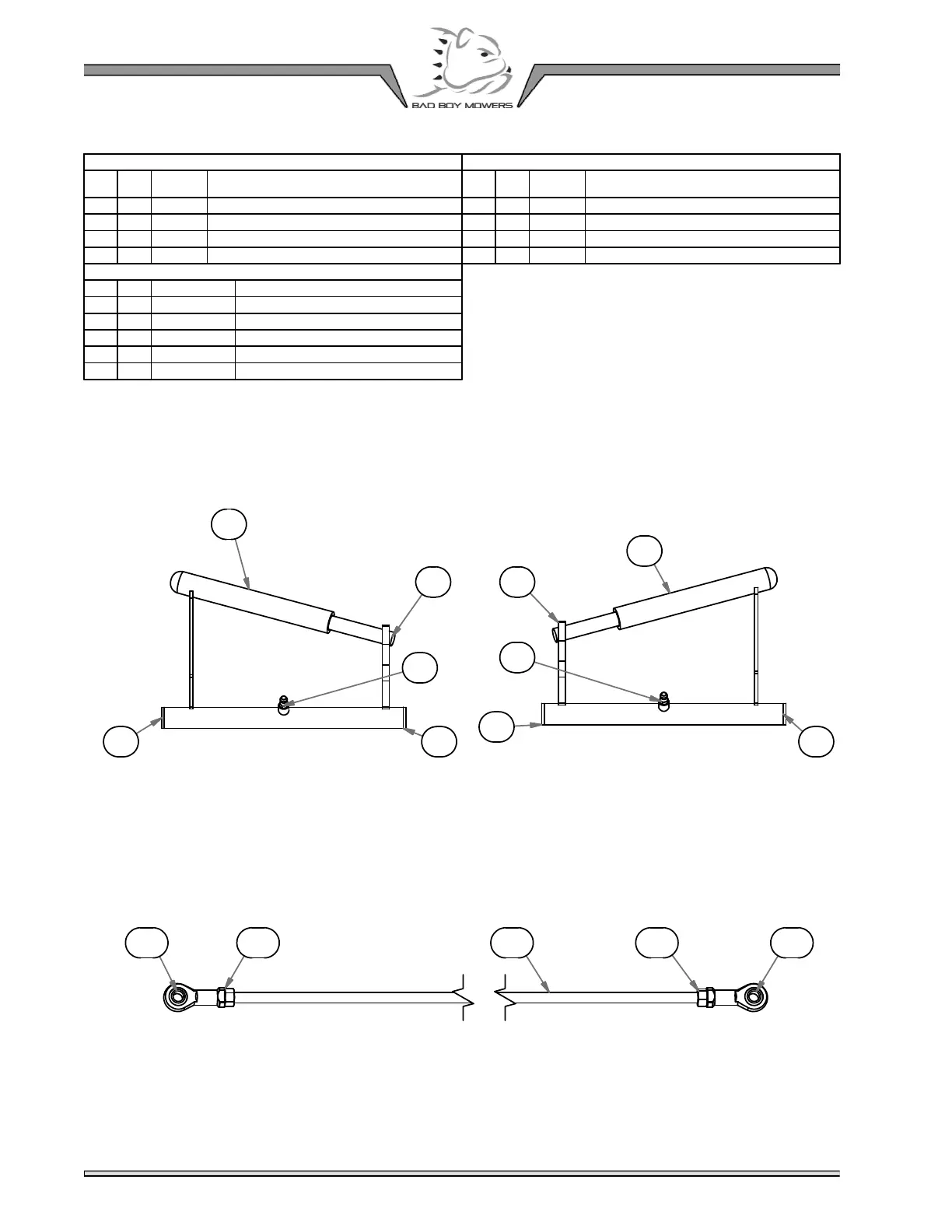

95.4
95.3 96.3
96.4
96.1
96.2
96.295.295.2
95.1
107.5 107.1 107.3 107.2 107.4
