039-5944-01
ZT Pump Idler
ITEM
QTY
PART
NUMBER
DESCRIPTION
2 8 013-0004-00 5/16-18 ACORN NUT HIGH-CROWN ZC
8 2 013-5202-00 3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC
12 6 013-7018-00
1/2-13 HEX NUT ZINC
16 4 013-8073-00 1/4-20 NYLON INSERT LOCKNUT ZINC
19 2 014-3580-00 Bolt on Fan Cover
20 1 014-3590-18
2018 Walk Cover
22 2 014-9002-00 1 1/2 X 2 Plug For .120 Tubing
35 3 018-2004-50 All Thread
41 1 018-4010-00
1/2-13 NYLON INSERT JAM LOCKNUT ZINC
64 8 019-6050-00
.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK
66 4 019-8040-00 1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC
78
4
025-0031-00
Deck Hanger Insert
101 3 033-6006-00
5.25" Deck Spindle Pulley
103 1 034-2009-00 2009 Deck/Pump Idler Spring
112 1 039-1220-00 Warner Clutch A-R Bracket
114 1 039-5944-01 ZT Pump Idler
114.8 1 039-5944-00 Pump Idler Bracket
114.7 1 033-6001-00 4 3/4" Idler Pulley
114.1 1 013-5301-00
5/8-11 NYLON INSERT JAM LOCKNUT ZINC
114.2 1 013-8050-00
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
114.3 1 018-5311-00 5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW
ITEM
QTY
PART
NUMBER
DESCRIPTION
114.4 1 018-6036-00 1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC
114.5 2 019-6017-00 .635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON
114.6 1 025-7036-00
1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC
117 4 040-6060-00 Seat latch pin
133 1 051-8067-15 15" Revolt Fuel Line Assembly
133.1 1.25 051-8067-00
1/4" Fuel Line Hose
133.2 2 072-8069-00 1/4 Fuel Hose Clamp
142 1 066-8083-00 Fuel Cap
143 1 067-0003-00
5 Gal Black Gas Tank w/gauge
145 2 067-8090-04 Walk Behind Hydro Tank Assembly
145.1 .83 051-8063-00 3/8" Clear Hose
145.2 1 066-5050-00 Hydraulic Tank Cap
145.3 1 067-8090-00 350ml Expansion Tank
145.4 1 072-8065-00 3/8" Hose Clamp
145.5 1 072-8066-00 1/2 Hose Clamp
150 1 070-5101-00 2020 Walk Behind Frame - Welded Assembly
151 2 072-0050-00 Fuel Tank Clamp-Stand On
172 1 091-0902-00 2013 cZT/ZT Logo Decal-Floorboard-Standard 15"x4"
177 1 091-3150-00
Outlaw Warning Decal
185 4 319-0002-00
3/4 F/W USS (2" OD) ZC

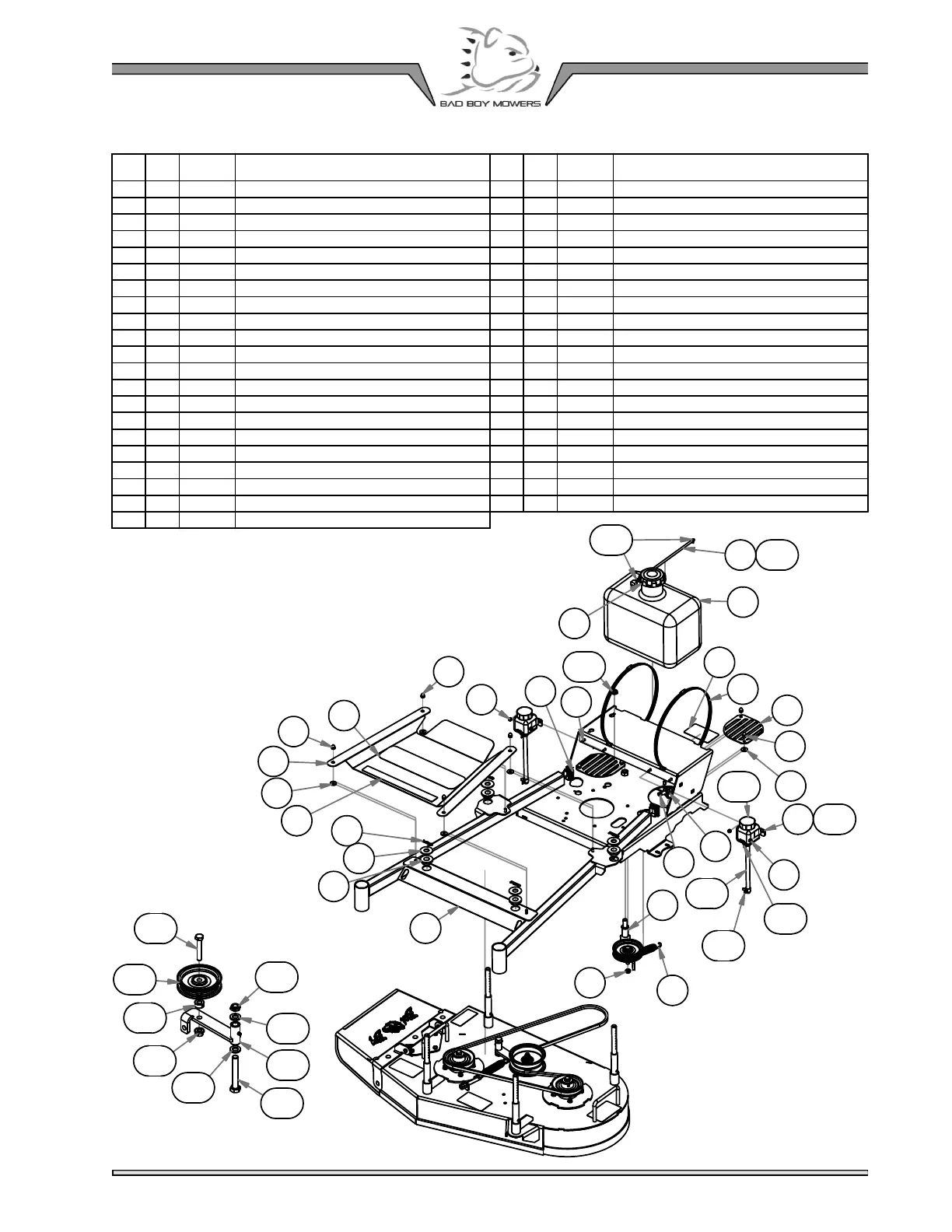

PARTS SECTION:
PAGE 37
UPPER FRAME
41
150
78
185
117
177
64
20
2
172
16
22
114.1
66
171
19
2
64
145
145.3
16
35
12
103
151
143
142
2
133 133.1
114
145.2
145.1
145.4
145.5
133.2
113.4
113.7
113.6
113.2
113.1
113.5
113.8
113.5
113.3
To Next Page
