PARTS SECTION:
PAGE 38

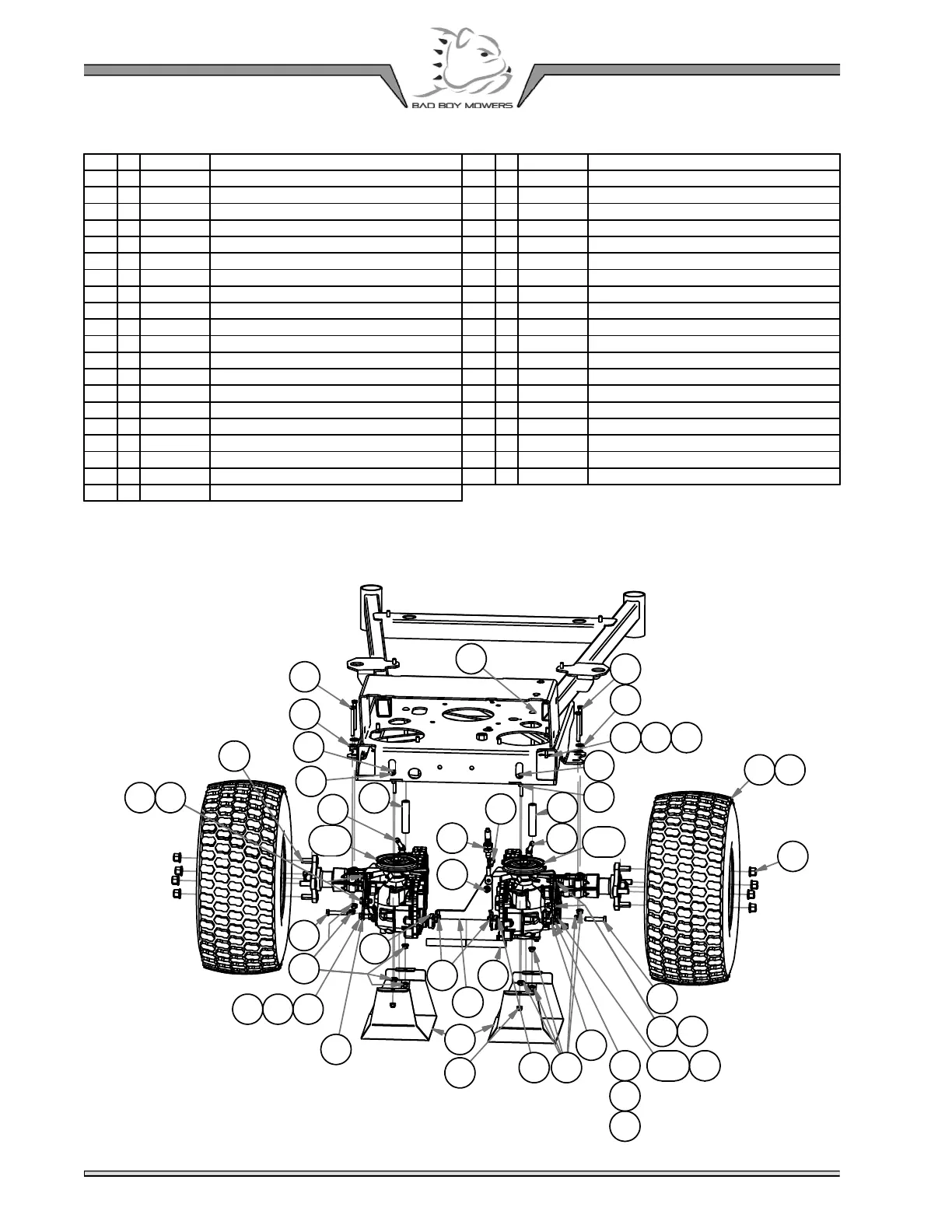

TRANSAXLE & REAR WHEELS
ITEM QTY PART NUMBER DESCRIPTION
4 8 013-3000-00 Acorn Lug Nut
6 6 013-5041-00
3/8-16 NYLON INSERT LOCKNUT ZINC
13 2 013-8047-00 5/16-18 NYL INS L/N ZC
14 11 013-8049-00 5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC
16 2 013-8073-00
1/4-20 NYLON INSERT LOCKNUT ZINC
28 2 018-0023-00
5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC
33 2 018-0056-00 5/16-18 X 6 CARRIAGE BOLT (GR.5) ZINC
36 1 018-2007-00 5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC
38 2 018-3000-00
3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC
40 2 018-4007-00 1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC
42 4 018-4701-00 5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC
48 2 018-6012-00
3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
52 4 018-6049-00 3/8-16 X 1 GR 5 Hex Bolts Zinc
54 2 018-8063-00 5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC
59 2 019-5037-00
3/8 SPLIT LOCKWASHER ZINC
67 4 019-8044-00
5/16 USS FLAT WASHER (7/8 OD) ZINC
70 2 022-6000-00 20x10.50-8 Tire/Wheel Assembly
70.1 1 022-6002-00 8 Inch Wheel
70.2 1 022-6001-00
20X10-8 Turf Tire
71 2 022-8019-00 21 x 7 - 10 Walk Behind Rim and Tire (36" Only)
ITEM QTY PART NUMBER DESCRIPTION
71.1 1 022-8022-00 10" Wheel Only-36" Stand On
71.2 1 022-8023-00
Walk Behind 36" Tire Only 21 X 7-10
74 2 024-1200-00 ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6
77
1 025-0018-00 2017 Transaxle Spacer-Walker
79 2 025-0070-00
2017 Transaxle Spacer
86 2 026-0173-00 2020 Walk-Behind Hydro Plate Extension
87 2 026-3441-00 2020 Walk Trans Skid Plate
90 2 028-0072-00 2020 Walk Neutral Rod
113 1 039-1917-RW Walk Brake Pull Bracket-Raw
124 2 044-2004-00 Bow Pin
125 2 044-2008-00 Neutral Rod Clip
128 1 050-0003-00 Right Walk-Behind Transaxle
128.2 1 050-2075-00 Fan/Pulley Kit for ZT
128.3 1 063-1050-00 Filter
129 1 050-0004-00
Left Walk-Behind Transaxle
129.2 1 050-2075-00
Fan/Pulley Kit for ZT
129.3 1 063-1050-00 Filter
141 1 064-3000-00 Brake Cable
150 1 070-5101-00 2020 Walk Behind Frame - Welded Assembly
33
28
54
42
67
42
67
28
54
79
74
79
74
14
141
36
70
71
4
38
14
87
13
77
16
113
40
40
38
14
48596
526
86
124 90 125
129.2
128.3 128
128.2
52 6
48
59
6
86
129
To Next Page
