ITEM QTY PART NUMBER DESCRIPTION
8 2 013-5202-00 3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC
23 1 015-0541-00
Kawasaki FS541V Pull Start Engine
24 1 015-0543-00 Exhaust Assembly
24.9 0 013-0075-00 M8-1.25 Zinc Nut
24.3 0 015-0543-01 MUFFLER
24.1 0 015-0543-02 Exhaust Pipe
24.2 0 015-0543-03 Exhaust Bracket
24.6 0 015-0543-04
Exhaust Flange Bolt
24.7 0 015-0543-05 Exhaust Lock Washer
24.5 0 015-0543-06 Exhaust Nut
24.8 0 015-0543-07 Exhaust Gasket
24.4 0 015-0543-08
Exhaust Clamp
25 1 015-0599-00 Kawasaki FS600V Pull Start Engine
ITEM QTY PART NUMBER DESCRIPTION
34 4 018-1075-00 3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS
ZINC YELLOW
47 1 018-5450-00 7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW
52 2 018-6049-00 3/8-16 X 1 GR 5 Hex Bolts Zinc
62 1 019-6020-00
1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC
81 1 025-5032-00
1.130 x 1.75 x 1 Spacer, Countersunk, Zinc
91 1 030-0050-00 5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN
98 1 033-5034-00 4 3/4" Motor Pulley
112 1 039-1220-00
Warner Clutch A-R Bracket
122 1 042-6030-00 1/4 X 1 SQ MACHINERY KEY 1018 STL PLN
132 1 051-5404-00 Oil drain Hose
148 1 070-0056-00
Clutch
149 1 070-2000-00 Clutch Pigtail
150 1 070-5101-00 2020 Walk Behind Frame - Welded Assembly

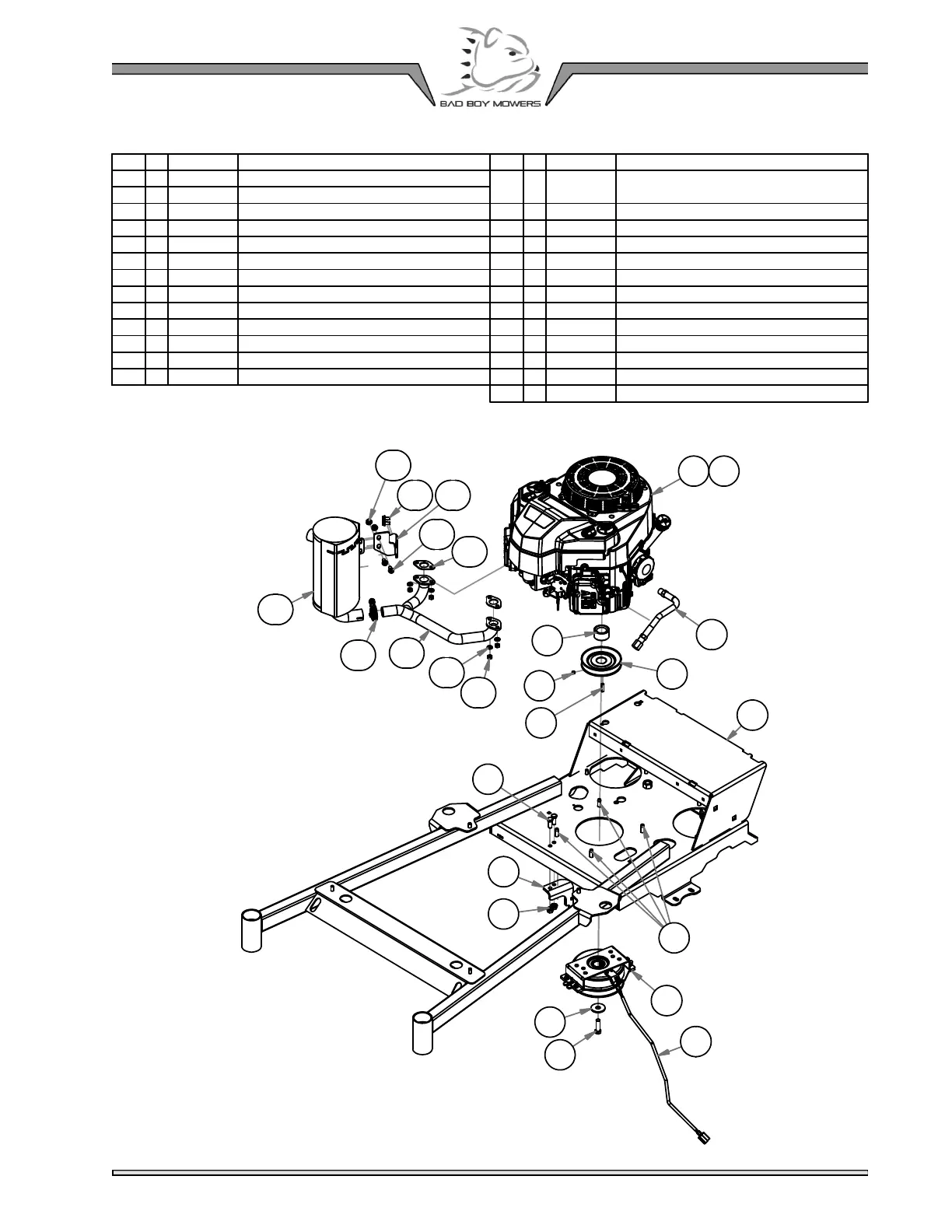

PARTS SECTION:
PAGE 39
ENGINE
23 25
132
81
98
122
91
150
52
34
112
8
47
62
149
148
24.9
24.7
24.8
24.1
24.4
24.3
24.6
24.2
24.6
24.5
