PARTS SECTION:
PAGE 40

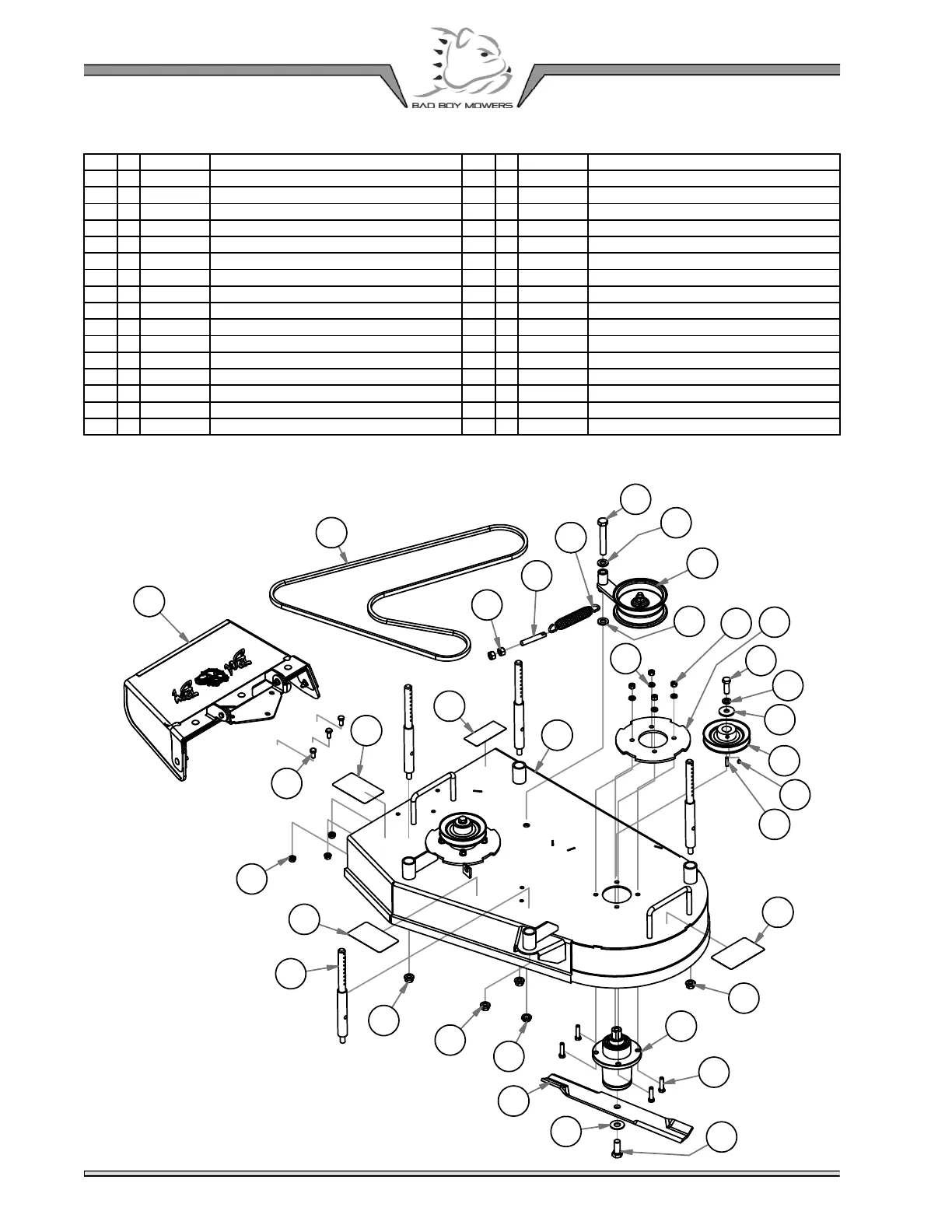

36" Walk Deck
ITEM QTY PART NUMBER DESCRIPTION
7
3 013-5201-00 3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC
9 1 013-5301-00
5/8-11 NYLON INSERT JAM LOCKNUT ZINC
10 8 013-6014-00 3/8-16 HEX NUT ZINC
12 2 013-7018-00 1/2-13 HEX NUT ZINC
15 4 013-8050-00
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
35 1 018-2004-50 All Thread
45 3 018-5250-00 3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC
46 1 018-5311-00 5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW
48 8 018-6012-00
3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
49 2 018-6019-00 1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
50 2 018-6020-00 5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW
58 2 019-5007-00
1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW
59 8 019-5037-00 3/8 SPLIT LOCKWASHER ZINC
60 2 019-5038-00 5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW
61 2 019-6017-00
.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON
62 2 019-6020-00
1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC
ITEM QTY PART NUMBER DESCRIPTION
84 2 026-0025-00 Deck Spindle Support Plate
91 2 030-0050-00
5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN
92 4 031-0023-00 2017 Walk Behind Deck Hanger
100 2 033-6003-00 5" Spindle Deck Pulley
104 1 034-2020-00
Deck Idler Spring
109 2 037-6015-50
Spindle Assembly
110 2 038-0001-00 54" Deck Fusion Blade For Outlaw
115 1 039-6945-10 Deck Idler Assembly 36" Walk Behind
120 1 041-8054-00 2020 Walk-Behind 36 Deck Belt
122 2 042-6030-00 1/4 X 1 SQ MACHINERY KEY 1018 STL PLN
138 1 060-3600-00 Walk 36 Deck
168 1 091-0023-00 36" Deck Height Adjustment Decal
171 1 091-0418-00 2017 Walk Behind 36" Deck Belt Route
176 1 091-3012-00 Danger Decal-Spindle/Discharge
178 1 091-3601-18 2018 36" Deck Decal
181 1 210-6005-48
ZT Chute Assembly
120
45
168
7
176
12
35
104
46
61
61
10
59
49
58
62
100
91
122
92
171
15
9
15
178
15
48
110
60
50
138
84
109
115
181
