ITEM QTY PART NUMBER DESCRIPTION
2 4 013-0004-00 5/16-18 ACORN NUT HIGH-CROWN ZC
7 3 013-5201-00
3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC
9 1 013-5301-00 5/8-11 NYLON INSERT JAM LOCKNUT ZINC
10 12 013-6014-00 3/8-16 HEX NUT ZINC
12 2 013-7018-00
1/2-13 HEX NUT ZINC
15 6 013-8050-00
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
21 2 014-4000-00 Pulley Cover
35 1 018-2004-50
All Thread
37 1 018-2018-00
1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC
45 3 018-5250-00 3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC
46 1 018-5311-00 5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW
48 12 018-6012-00
3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
49 3 018-6019-00 1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
50 3 018-6020-00 5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW
53 1 018-6054-00
1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC
58 3 019-5007-00
1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW
59 12 019-5037-00 3/8 SPLIT LOCKWASHER ZINC
60 3 019-5038-00 5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW
61 2 019-6017-00
.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON
62 3 019-6020-00 1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC
ITEM QTY PART NUMBER DESCRIPTION
64 4 019-6050-00 .360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK
82 1 025-5338-00
.502 ID X .750 OD X 1.500 Long Spacer
83 1 025-5339-00 1 3/4" Pulley Spacer
84 3 026-0025-00 Deck Spindle Support Plate
91 3 030-0050-00
5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN
92 4 031-0023-00 2017 Walk Behind Deck Hanger
99 1 033-6001-00 4 3/4" Idler Pulley
100 3 033-6003-00 5" Spindle Deck Pulley
102 1 033-7201-25
5-3/4 Idler Pulley
104 1 034-2020-00 Deck Idler Spring
109 3 037-6015-50 Spindle Assembly
111 3 038-5350-00
16 1/4" Bad Boy Blade
116 1 039-6945-17 2017 MZ/ZT Deck Idler Assembly
121 1 041-8055-00 2020 48" Deck Belt
122 3 042-6030-00
1/4 X 1 SQ MACHINERY KEY 1018 STL PLN
139 1 060-3648-00 2020 48in Walk Deck - Weldment - Painted
169 1 091-0024-00 48" Deck Height Adjustment Decal
173 1 091-0903-18 2018 48" Deck Decal
176 2 091-3012-00
Danger Decal-Spindle/Discharge
181 1 210-6005-48 ZT Chute Assembly
PARTS SECTION:
PAGE 41

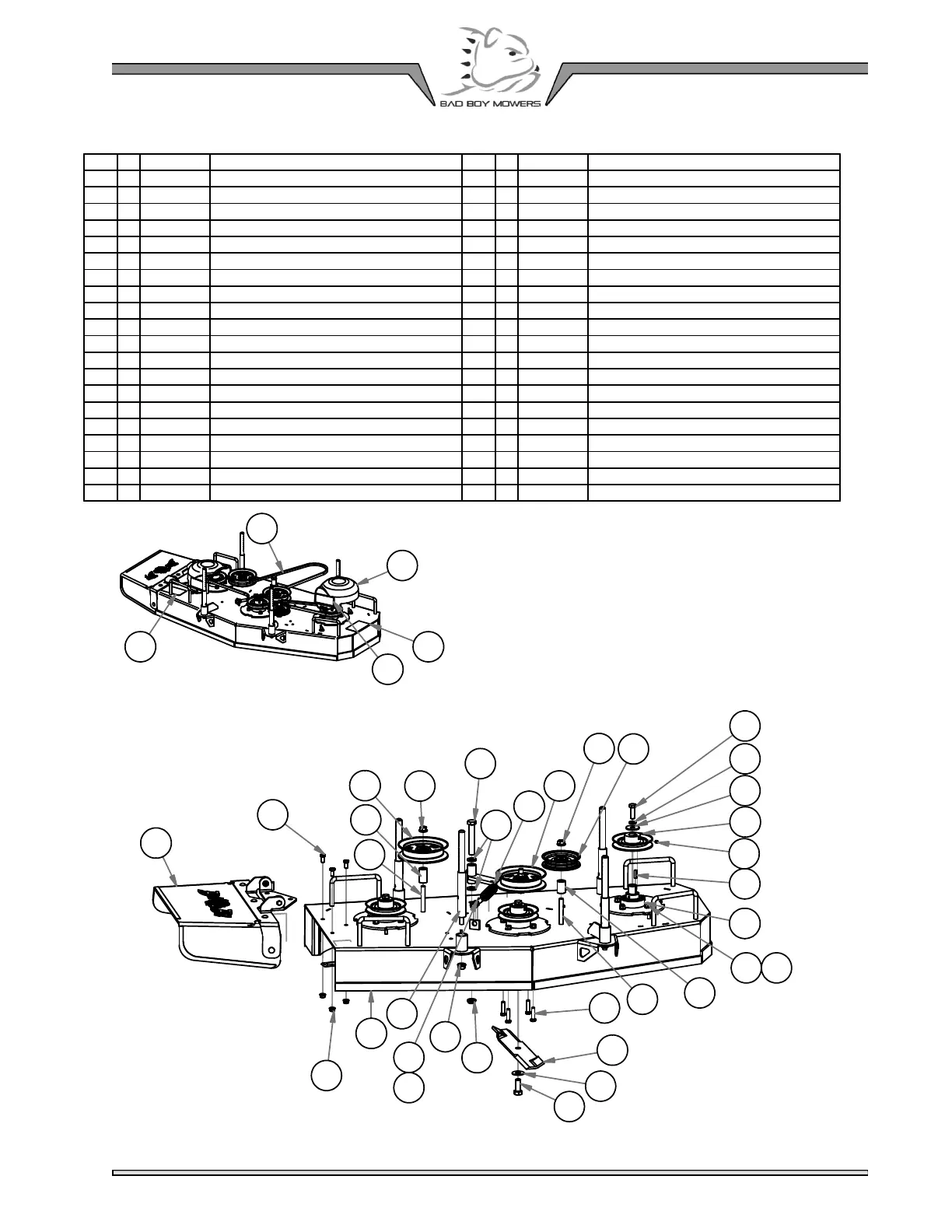

48" DECK ASSEMBLY
45
7
92
15
48
50
60
111
9
53
35
12
116
46
61
83
102
49
58
62
100
122
21
176
173169
37
181
15
91
104
15
99
82
10 59
121
139
109
