Bad Boy WALK-BEHIND Series User Manual

PARTS SECTION:
PAGE 42

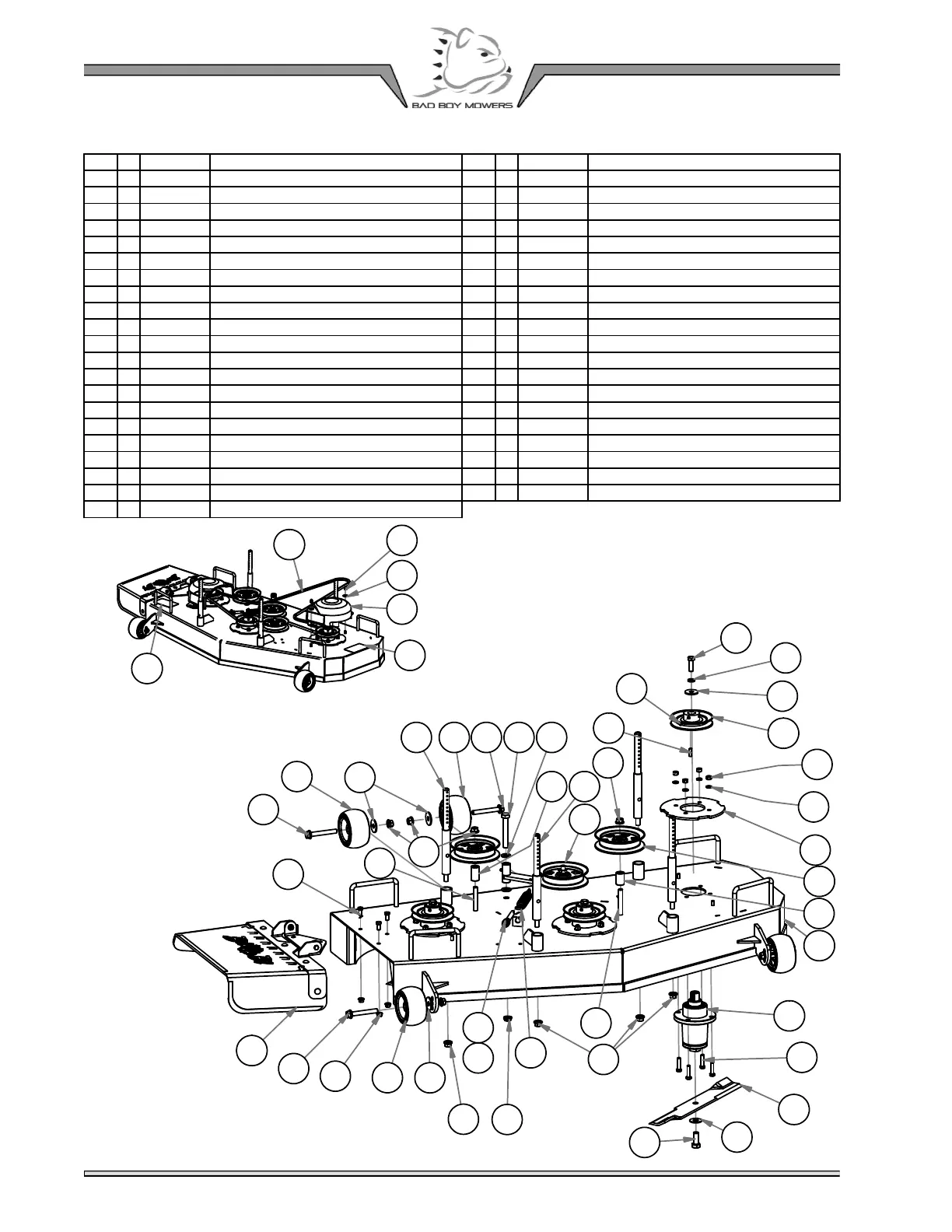

54" Walk Deck
ITEM QTY PART NUMBER DESCRIPTION
2 4 013-0004-00 5/16-18 ACORN NUT HIGH-CROWN ZC
7 3 013-5201-00
3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC
9 1 013-5301-00 5/8-11 NYLON INSERT JAM LOCKNUT ZINC
10 12 013-6014-00 3/8-16 HEX NUT ZINC
12 2 013-7018-00
1/2-13 HEX NUT ZINC
15 10 013-8050-00
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC
21 2 014-4000-00 Pulley Cover
27
4
018-0010-00 1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC
35 1 018-2004-50 All Thread
37 1 018-2018-00 1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC
45 3 018-5250-00 3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC
46 1 018-5311-00
5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW
48 12 018-6012-00 3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
49 3 018-6019-00 1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC
50 3 018-6020-00
5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW
53 1 018-6054-00
1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC
58 3 019-5007-00 1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW
59 12 019-5037-00 3/8 SPLIT LOCKWASHER ZINC
60 3 019-5038-00
5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW
61 2 019-6017-00 .635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON
62
7
019-6020-00 1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC
ITEM QTY PART NUMBER DESCRIPTION
64 4 019-6050-00 .360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK
69 4 022-1000-00 Deck Wheel
82 1 025-5338-00 .502 ID X .750 OD X 1.500 Long Spacer
83 1 025-5339-00 1 3/4" Pulley Spacer
84 3 026-0025-00
Deck Spindle Support Plate
91 3 030-0050-00
5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN
92 4 031-0023-00 2017 Walk Behind Deck Hanger
101 3 033-6006-00 5.25" Deck Spindle Pulley
102 2 033-7201-25
5-3/4 Idler Pulley
104 1 034-2020-00 Deck Idler Spring
109 3 037-6015-50 Spindle Assembly
110 3 038-0001-00
54" Deck Fusion Blade For Outlaw
116 1 039-6945-17 2017 MZ/ZT Deck Idler Assembly
118 1 041-6027-00 B128 Deck Belt
122 3 042-6030-00
1/4 X 1 SQ MACHINERY KEY 1018 STL PLN
140 1 060-5420-00 2020 54" Walk Behind Deck
169 1 091-0024-00 48" Deck Height Adjustment Decal
174 1 091-0904-18 2018 54" Deck Decal
176 2 091-3012-00
Danger Decal-Spindle/Discharge
182 1 210-6005-98 Discharge Chute Assembly
45
7
92
53
15
9
37
50
60
110
48
15
49
58
62
101
84
59
10
122
91
104
12
35
83
15
6146
82
109
182
116
2769
140
62
69
27
62
69
27
102
92
15
21
64
2
174
169
118
