Bad Boy WALK-BEHIND Series User Manual

037-6015-50
Spindle- Aluminum -2012 ZT
210-6005-48
ZT Chute Assembly
039-6945-17
2017 MZ/ZT Deck Idler Assembly
210-6005-98
Discharge Chute Assembly
039-6945-10
Deck Idler Assembly 36" Walk Behind
037-6015-50 Parts List
DESCRIPTIONPART NUMBERQTYITEM
Aluminum Spindle Housing -2010
037-6017-501109.1
Spindle Bearing, 2004 and up037-6023-002109.2
Short Spindle Shaft w/Locking037-6026-001109.3
Dust Cover
037-8002-001109.4
Tube Spacer for Spindle Shaft
037-8050-001109.5
Collar Spacer - Top of Spindle 037-9050-001109.6
039-6945-17 Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC013-8050-001116.1
1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC
018-6036-001116.2
.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC
025-5203-001116.3
5" Idler Pully033-8050-001116.4
Deck Idler
039-6945-001116.5
210-6005-48 Parts List
DESCRIPTIONPART NUMBERQTYITEM
5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC
013-8049-007181.1
5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC018-2007-002181.2
5/16-18 X 1-1/4 CARRIAGE BOLT ZINC018-4703-00
5
181.3
.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON
019-6042-002181.4
Discharge Upper Chute Bracket
039-4870-001181.5
Discharge Lower Chute Bracket039-4871-001181.6
Discharge Chute Hanger (deck mounted)206-6017-001181.7
Rubber Discharge Chute
210-6005-001181.8
210-6005-98 Parts List
DESCRIPTIONPART NUMBERQTYITEM
5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC
013-8049-007182.1
5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC
018-2007-002182.2
5/16-18 X 1-1/4 CARRIAGE BOLT ZINC018-4703-00
5
182.3
.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON019-6042-002182.4
60" Discharge Lower Bracket 039-4863-001182.5
60" Discharge Chute Upper Hanger039-4864-001182.6
Discharge Chute Hanger (deck mounted)206-6017-001182.7
Rubber Discharge Chute
210-6005-001182.8
039-6945-10 Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC013-8050-001115.1
1/2-13 x GR 5 Hex Bolt Zinc018-7016-001115.2
Spacer 3/4 OD x 1/2 ID x 3\4 Length
025-5203-001115.3
5 3/4" Deck Idler Pulley033-5000-001115.4
Deck Idler 039-6945-001115.5

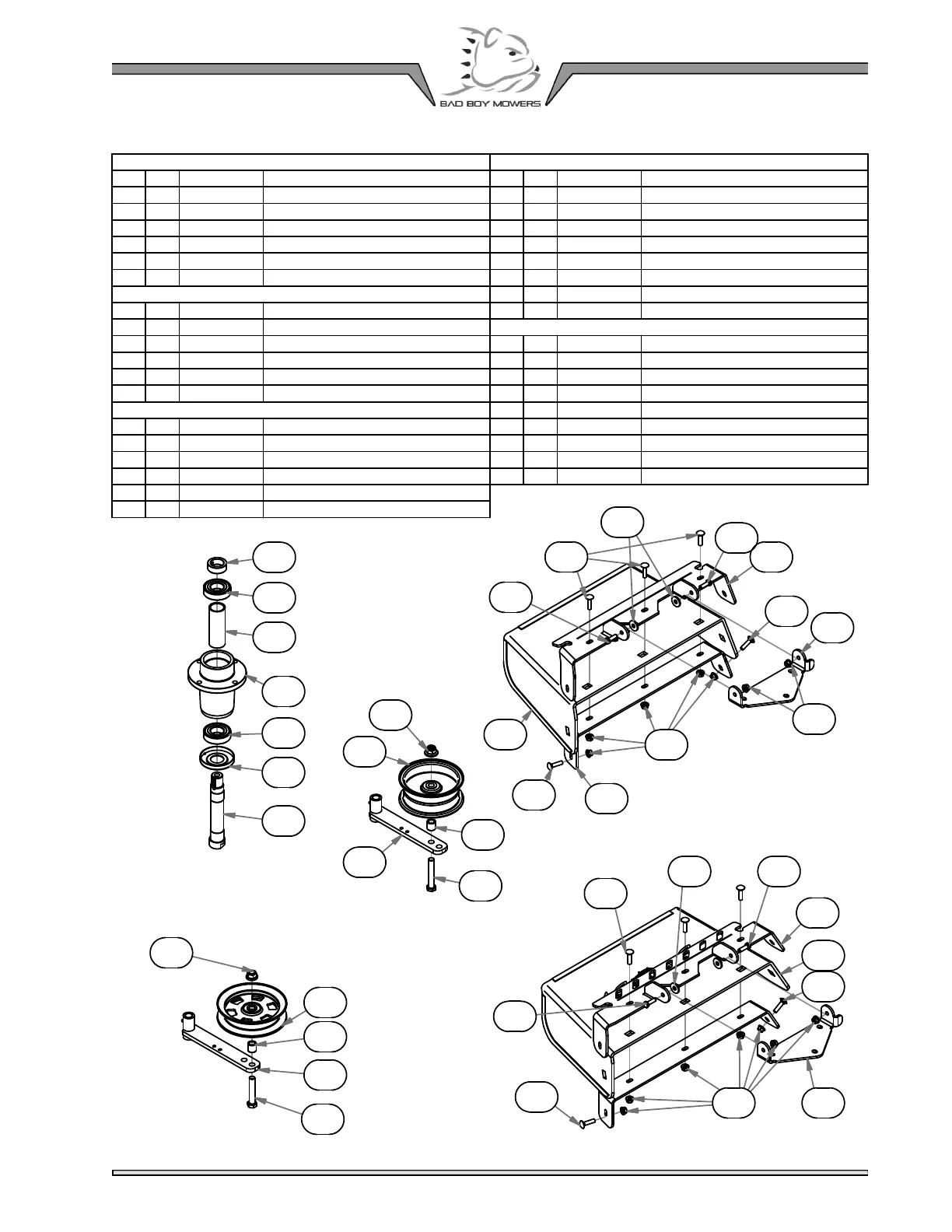

PARTS SECTION:
PAGE 43
DECK SUBASSEMBLIES
109.6
109.2
109.5
109.1
109.2
109.4
109.3
116.1
116.4
116.3
116.5
116.2
181.8
181.3
181.1
181.1
181.7
181.3
181.6
181.3 181.5
181.2
181.2
181.4
115.1
115.4
115.3
115.5
115.2
182.3
182.4 182.2
182.6
182.8
182.3
182.7182.1
182.3
182.2
