Bader KR-454 - 10. Control Block Schema

Digital air- conditioner controller KR- 454

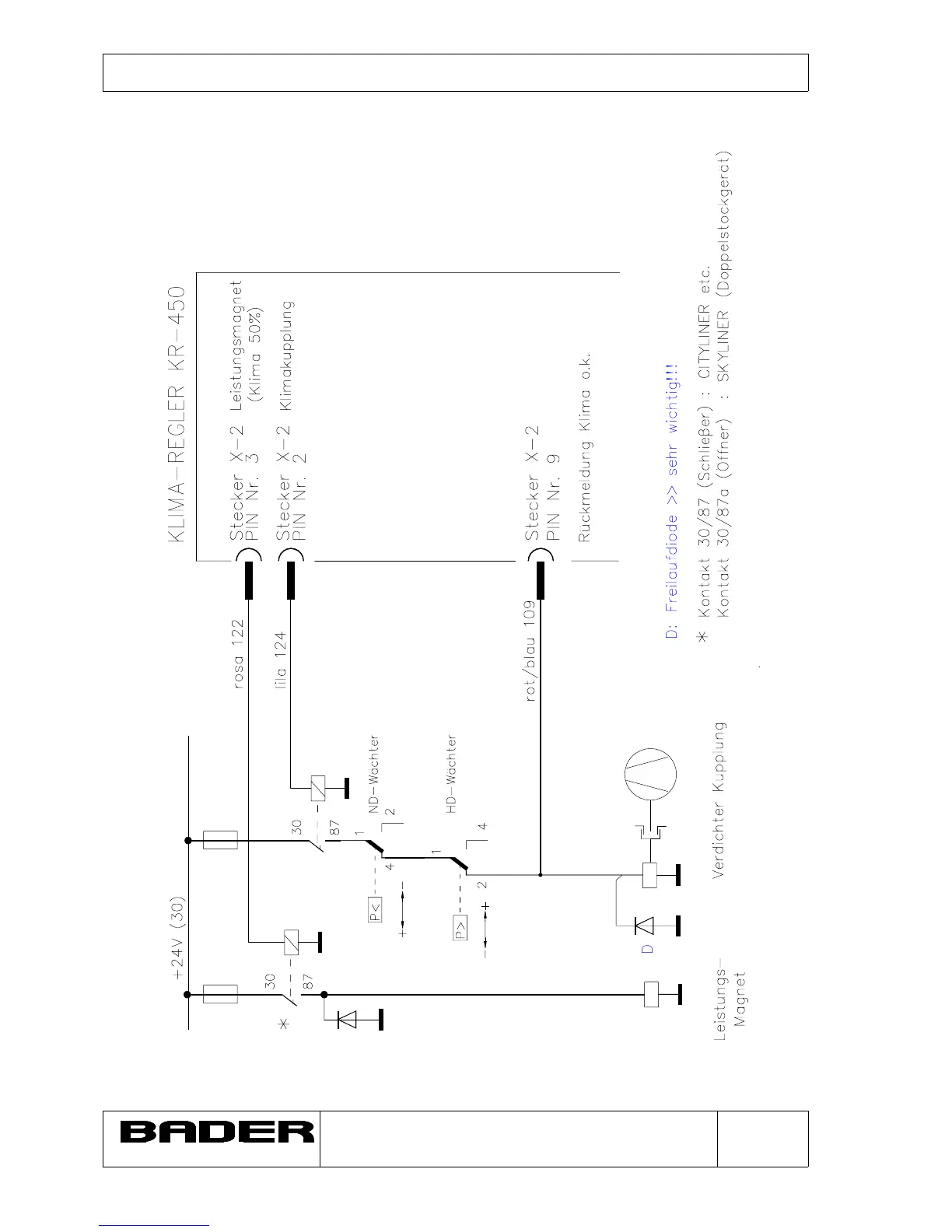

Basic connecting diagram of the air-conditioner
10.
BLOCK SCHEMA OF CONTROL IN DOUBLE-DECKER-COACH
INDUSTRIE-ELEKTRONIK
Control and regulating systems for vehicle air conditioning
D-71691 Freiberg a.N., Siemensstr.21
Phone: +49 7141 / 68877 - 0 Fax: +49 7141 / 68877 - 39
page: 32
of: 42
04541530.SDW
Issue: October 1998 - Copyright (C) BADER GmbH - Alterations reserve
