Digital air- conditioner controller KR- 454

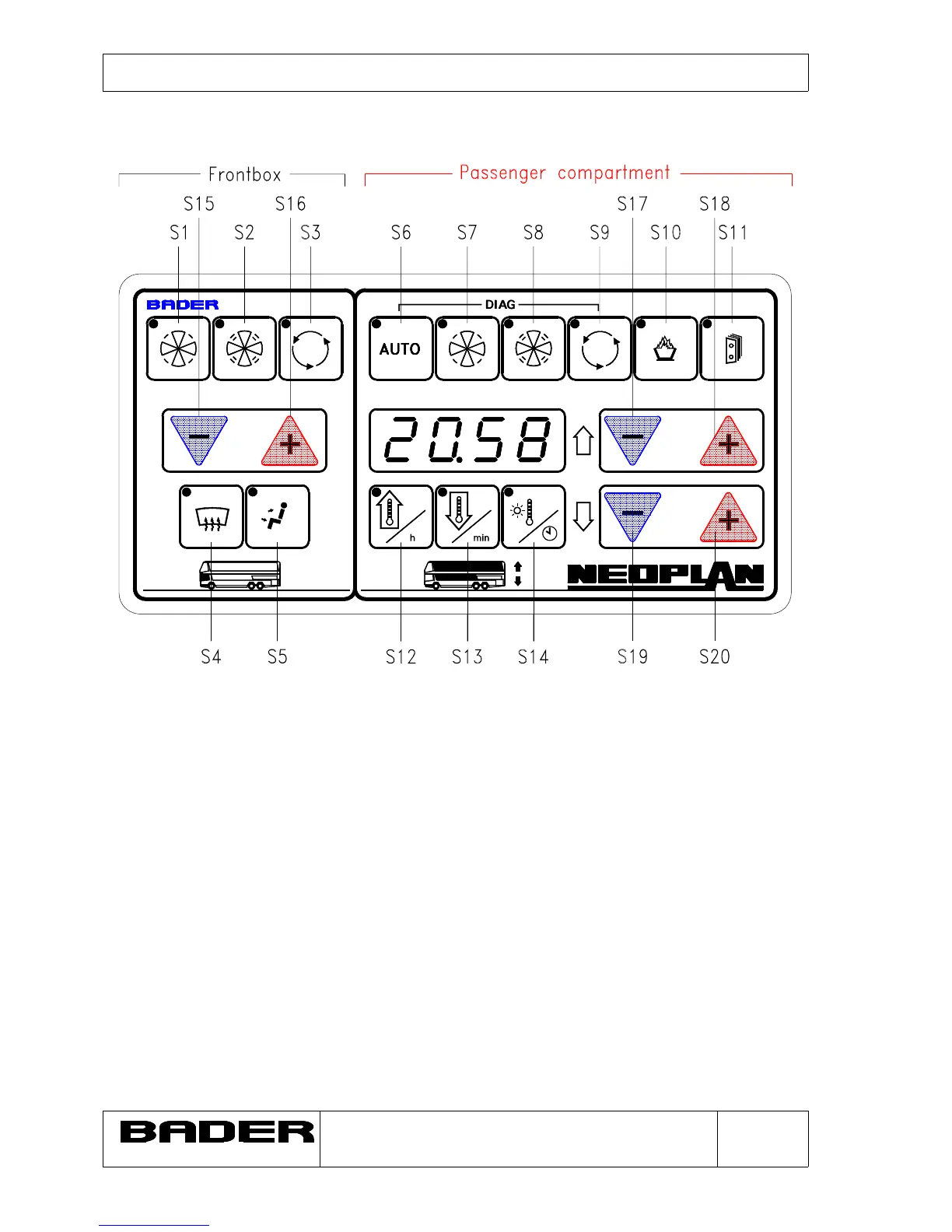

1. KEY ASSIGNMENT ON THE FRONT PANEL
Key assignment, temperature, driver's cockpit (Front box)
Key S1: Front box fan, stage I
Key S2: Front box fan, stage II
Key S3: Flap, fresh air/circulating air
Key S4: Flap, screen + screen defrost
Key S5: Flap, driver's cockpit/centre aisle
Keys S4+S5: Lamp test with ignition switched off
Key S15: Setpoint key (-) for valve position at the driver's cockpit (front box)
Key S16: Setpoint key (+) for valve position at the driver's cockpit (front box).
