BADODOSECURITY G200 - Wiring Diagram; Initial Settings

Make sure the device antenna is installed, and you MUST send the SMS com-
mand as below before using the device. If successed, it will return a message.
E.g.: 1234TEL0044666666#
“1234” is the device password(Default).
“0044” is the country code of United Kingdom.
“666666” is the SIM Card Number of the device.
GSM/3G Gate Controller
Page 3

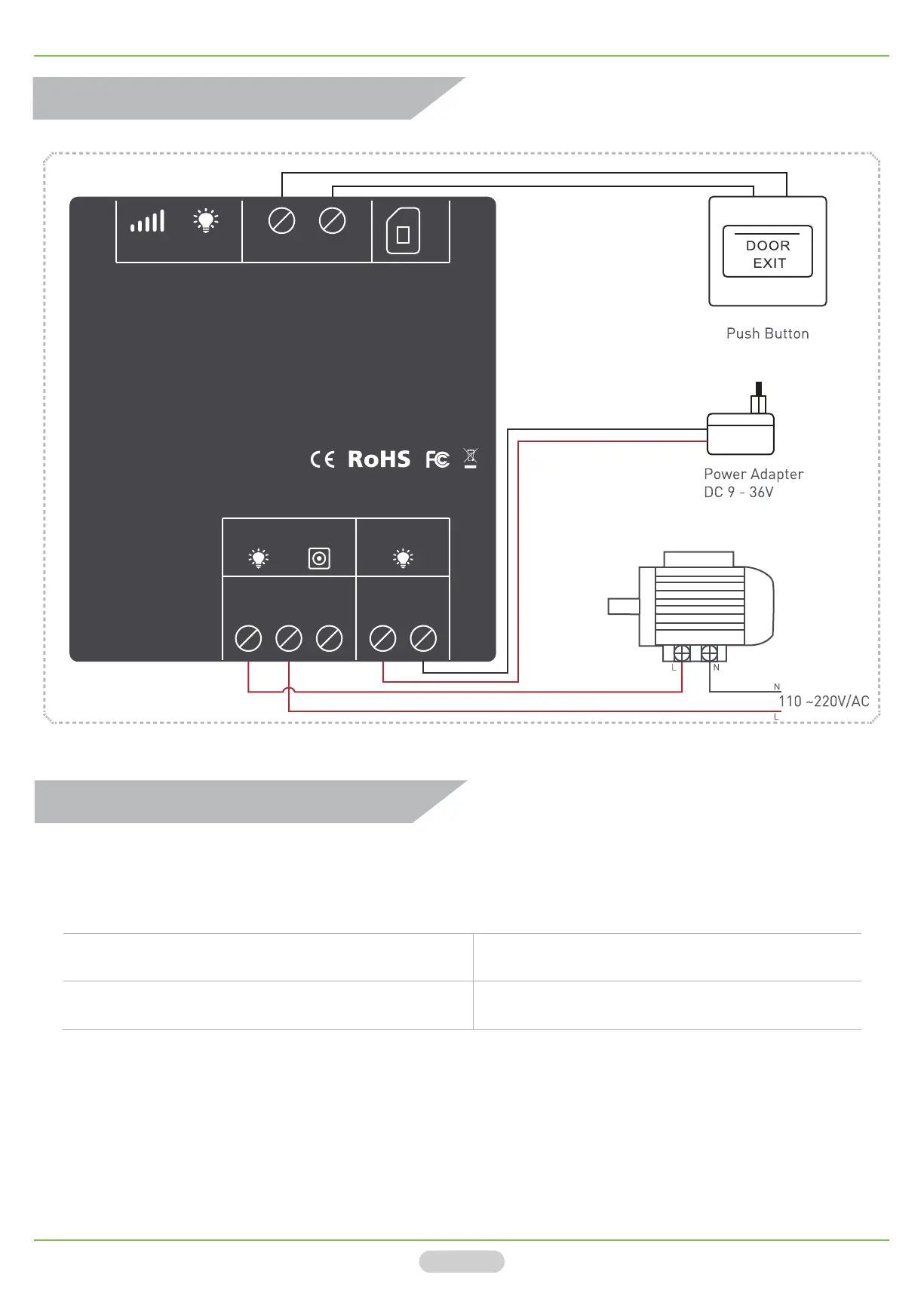

Wiring Diagram
Initial Settings
SMS Command Return Message
PasswordTELThe SIM Card Number of device#
Set Success!
-
DC 9~36V
Relay Output
SignalANT
SIM
Wired Switch
+
NO COM NC
Reset PowerRelay
Gate Controller
Model: G200
+
-
