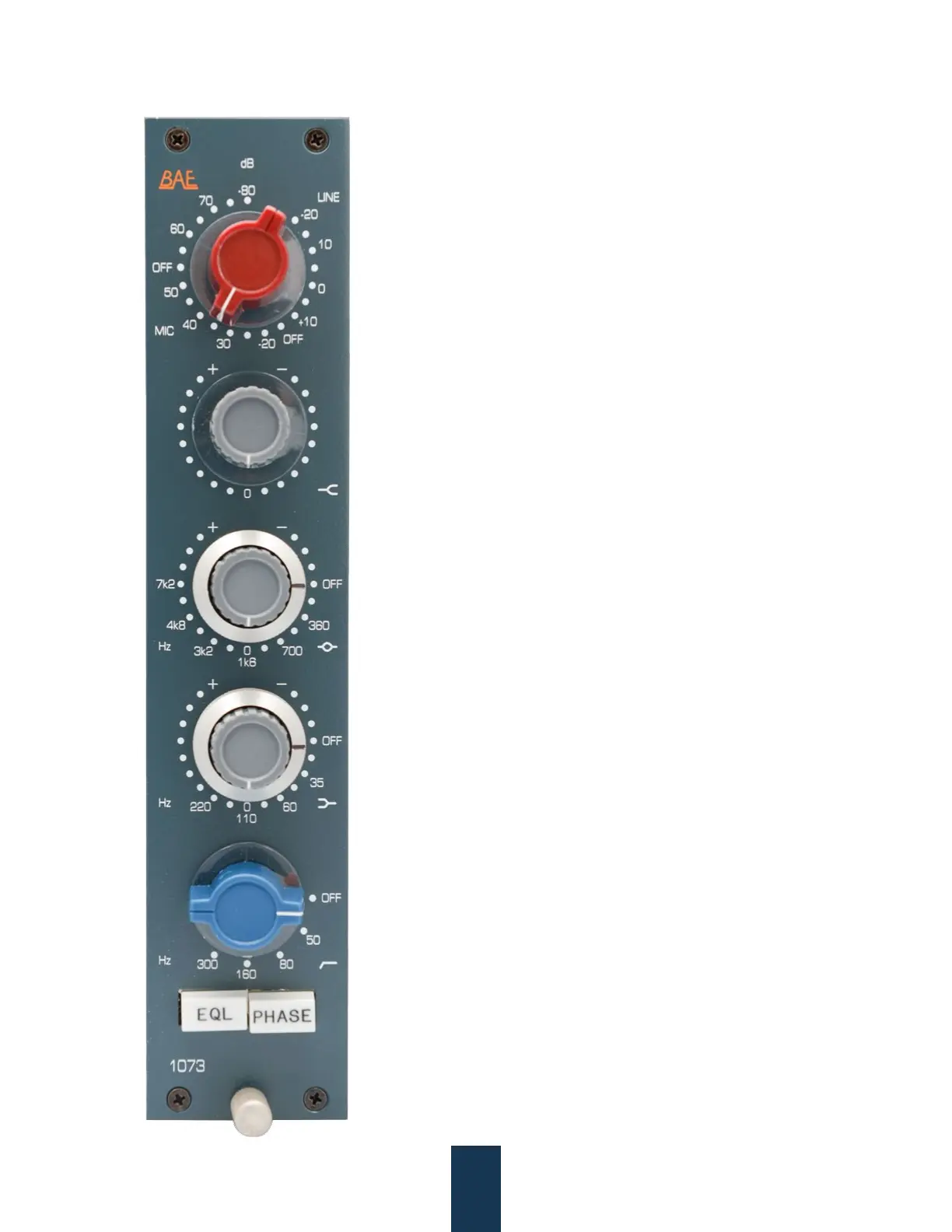

BAE 1073 - Specifications

2
Frequency Response
10Hz to -3dB at 55kHz
3 Band Equaliser
HF: +/-16dB xed frequency shelving at 12kHz
LF: +/-16dB shelving with selectable frequencies of
35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, xed ‘Q’ with, selectable centre
frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz
& 7.2kHz
High Pass Filter
50Hz, 80Hz, 160Hz & 300Hz
Mic Input Impedance
≈1200/300 Ω
Line Input Impedance
10k Ω
DI Input Impedance
≈150k Ω
Output Impedance
65 Ω
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600Ω
Power Requirements
115/230 VAC, 28W
Gain dB
0 to 80 dB
Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
Weight (Module/Rackmount)
6 LBS / 2.72 KG
10 / 4.54 KG
Dimensions in Inches (Module/Rackmount)
1.75W x 8.75L x 7.75D
19W x 1.75L x 9D
speCIfICaTIons
