BAE 1073 - Operation

4

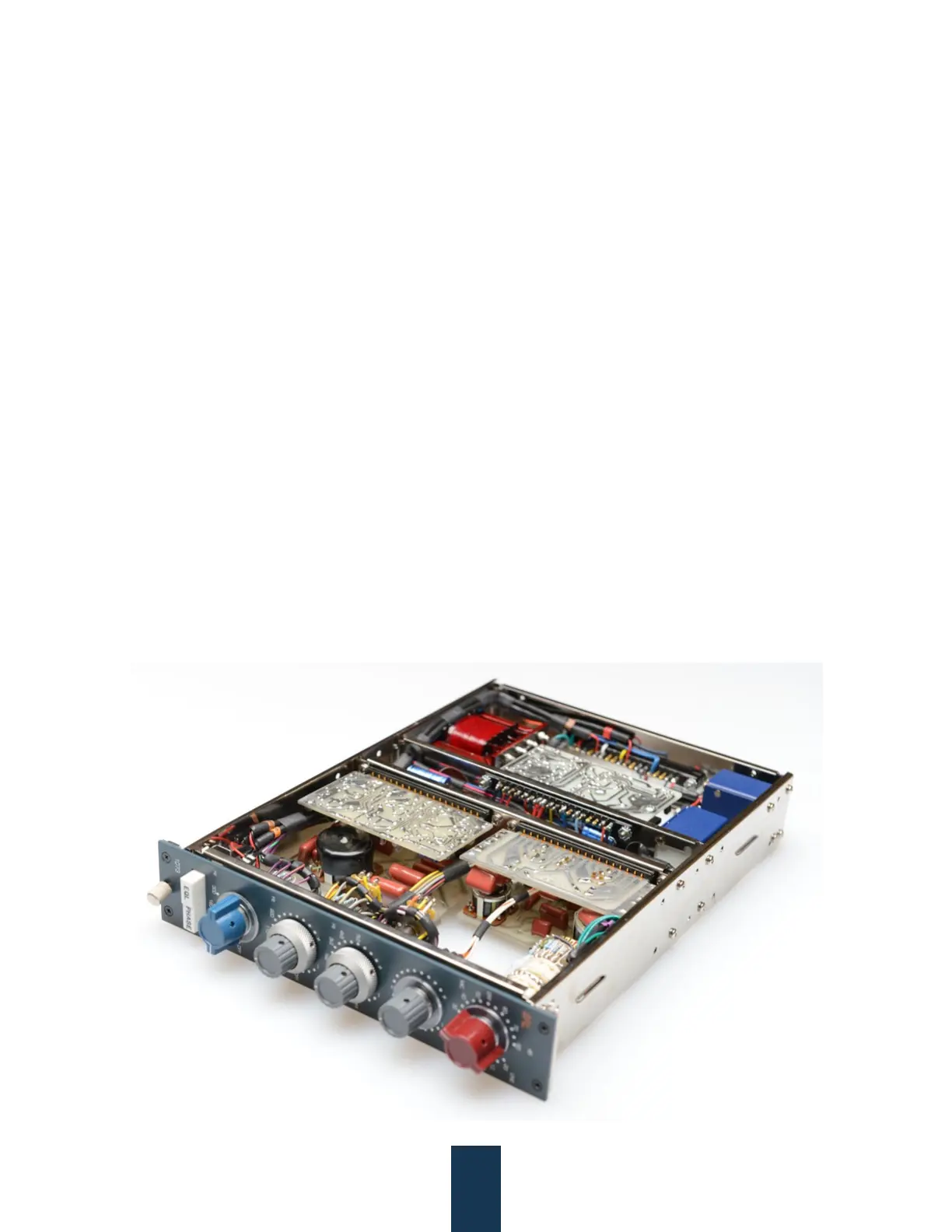

basIC operaTIon
OUTPUT KNOB
The output knob (grey) should be fully clockwise to achieve the highest headroom am cleanest signal
path.
ATTENUATE KNOB
Use the Attenuate knob to get in between the 5db steps of the gain knob.
GAIN KNOB
Adjust the Red Gain knob in 5 db increments. The left side is for line and the right side is for mic.
THREE BAND EQUALISER
High Frequency Smooth +/-16dB xed frequency shelving at 12kHz.
Mid Frequency Smooth +/-18dB peaking, xed ‘Q’ with, selectable centre frequencies of 0.36kHz,
0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
Low Frequency Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
HIGH PASS FILTER
High pass lter 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz.
EQ BUTTON
The EQ button switches the equaliser in or out of circuit.
PHASE BUTTON
The phase button gives 180° phase change at balanced output.
