Device manual 6490B / 6490B-y / 6590B
W. Bälz & Sohn GmbH & Co. Koepffstraße 5 D-74076 Heilbronn Telefon (07131) 1500-0 Telefax (07131) 1500-21

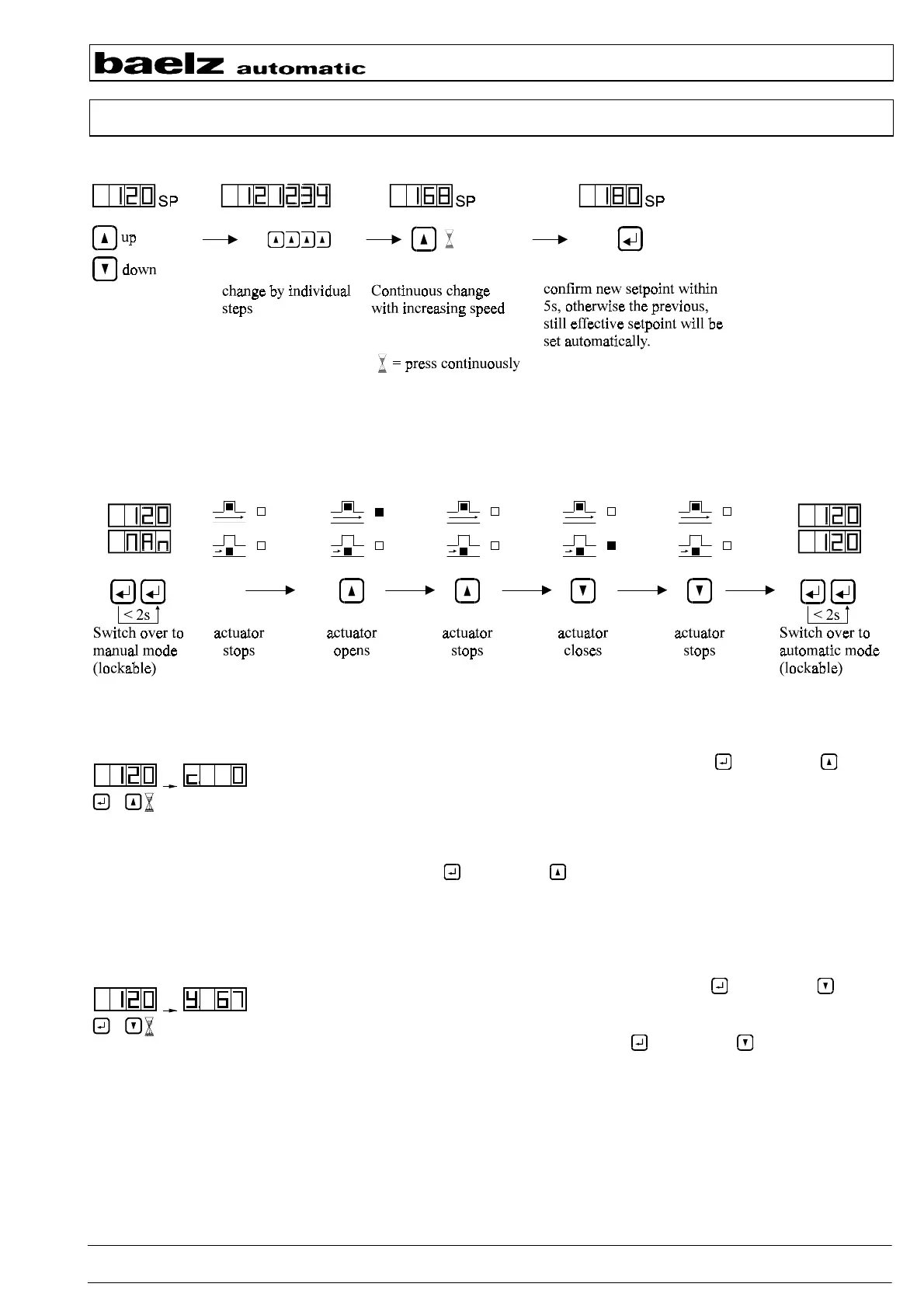

2.1 Setting setpoint in automatic mode
Setting range: SP.L to SP.H
Fixed setpoint if S2.d is assigned to a digital input which is active (setpoint fixed to SP.2) or if S.C = 1 (settings via modbus,
only).
2.2 Opening/closing the actuator
in manual mode
2.3 Modbus communication display via PV-display
To switch over to the modbus communication display, hold down the
- key and the - key
simultaneously for at least 1 second until "c." is displayed in the left segment of the display. The
other 3 segments show the communication display as a 1-byte counter with a range of 0 to 255.
With each valid modbus package it counts up one unit. When the counter reaches 255 it wraps
around with the next modbus package and starts counting up from 0 again. If the display does not change the controller is not
addressed via modbus.
To return to the process variable display, hold down the
- key and the - key simultaneously again until the process
variable is displayed.
2.4 Displaying the manipulated variable Y via PV-display
To switch over to the manipulated variable Y display, hold down the
- key and the - key
simultaneously for at least 1 second until "Y." is displayed in the left segment of the display. The
other 3 segments show the manipulated variable Y as a numerical value (0...100) in percent.
To return to the process variable display, hold down the
- key and the - key simultaneously
again until the process variable is displayed.
+ >1s
+ >1s
