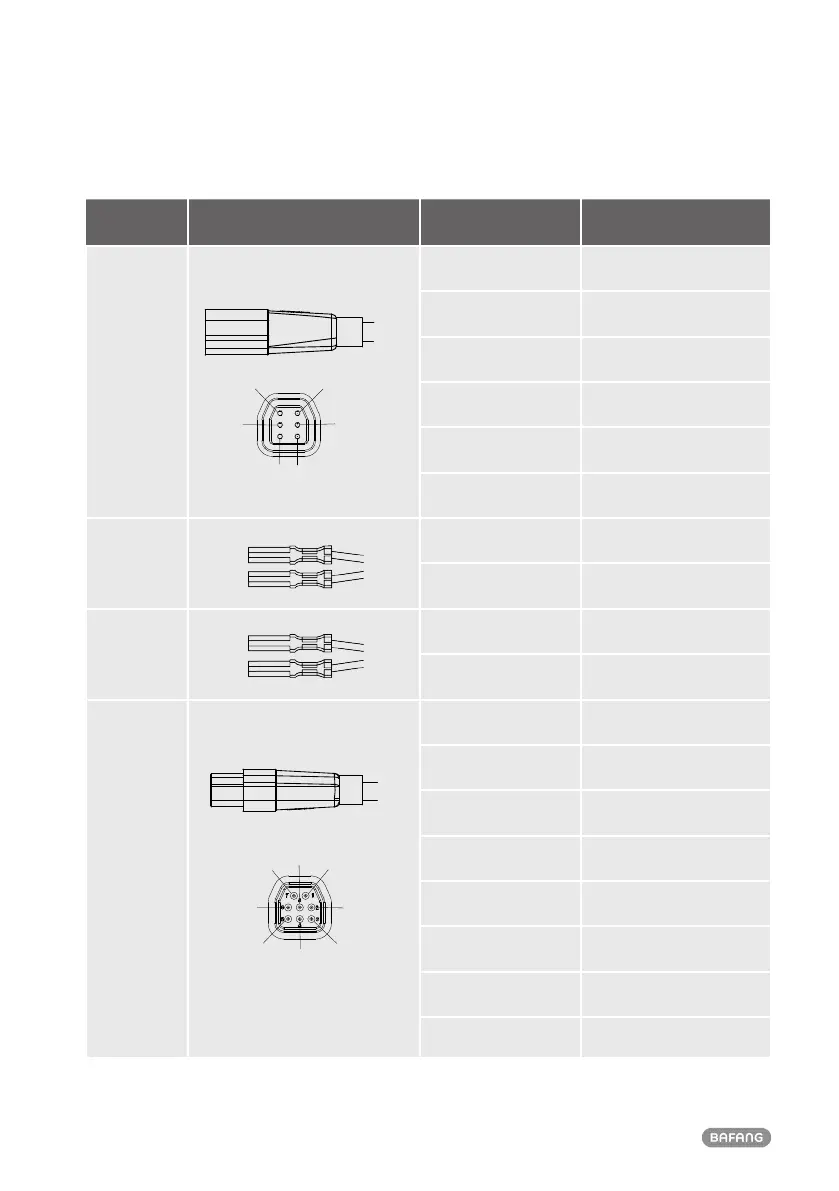

Name Schematic diagram PIN Description
Torque
sensor cable
M6.5
Green CAN H
Brown Power assist 1
Black GND
White CAN L
Purple Power assist 2
Orange 5V
Front light
cable
Red Front light 6V3W/12V6W
Black GND
Rear light
cable
White Rear light 6V0.5W/12V1W
Black GND
EB-BUS cable
G8.5
Blue Throttle signal
Red 5V
Yellow CAN L
White Brake signal
Black GND
Orange Key signal
Brown HMI power
Green CAN H
