BF-DM-C-CR C101-EN November 2022
DEALER MANUAL FOR CONTROLLER
10.2.3 Specification
• Power Supply: 48V DC
• Rated Input Power: 850W
• Rated Output Power: 650W
• Rated Current: 18A
• Undervoltage Protection: 42V
• Shutdown leakage current: ≤10uA
• Static operating current: ≤50mA
• Operating Temperature: -20℃ to 60℃
• Storage Temperature: -25℃ to 70℃
• Storage Humidity: 30% to 70%
• Protection Rating: IP65
• Certification: CE / ROHS
10.2.4 Function overview
• Communication protocol: CAN
• Brake cut-off function
• Power assist type: torque and speed
• Battery communication function
• Calculation of remaining distance, output
power and calorie
• Walk assistance (≤6km/h)
• Front light and rear light (6V3W)
• Power assist level (0-5 level)
• Set speed limit, wheel diameter and wheel
circumference
• Error code indication

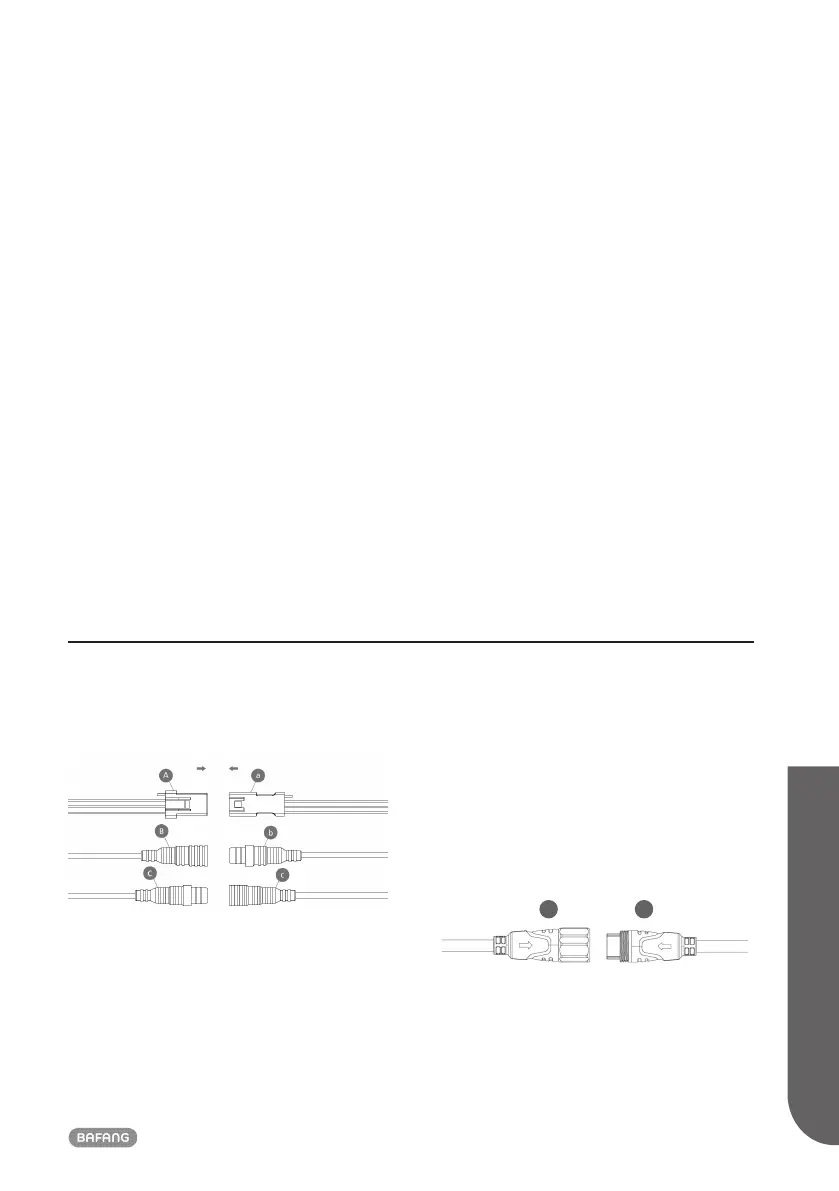

10.3 CABLING CONNECTION
10.3.1 Connect the battery
Link the communication cable and power cable
from controller with battery.
A. The female connector of the communication
cable from the battery BMS
a. The male connector of the communication
cable from the controller
B. The male connector (negative) from the
battery
b. The female connector (negative) from the
controller
C. The female connector (positive) from the
battery
c. The male connector (positive) from the
controller
10.3.2 Connect the motor
Please connect the connectors from the control-
ler and motor together.
D. The male connector from the motor
d. The female connector from the controller
D d
To Next Page
