6
BF-DM-C-CR C101-EN November 2022

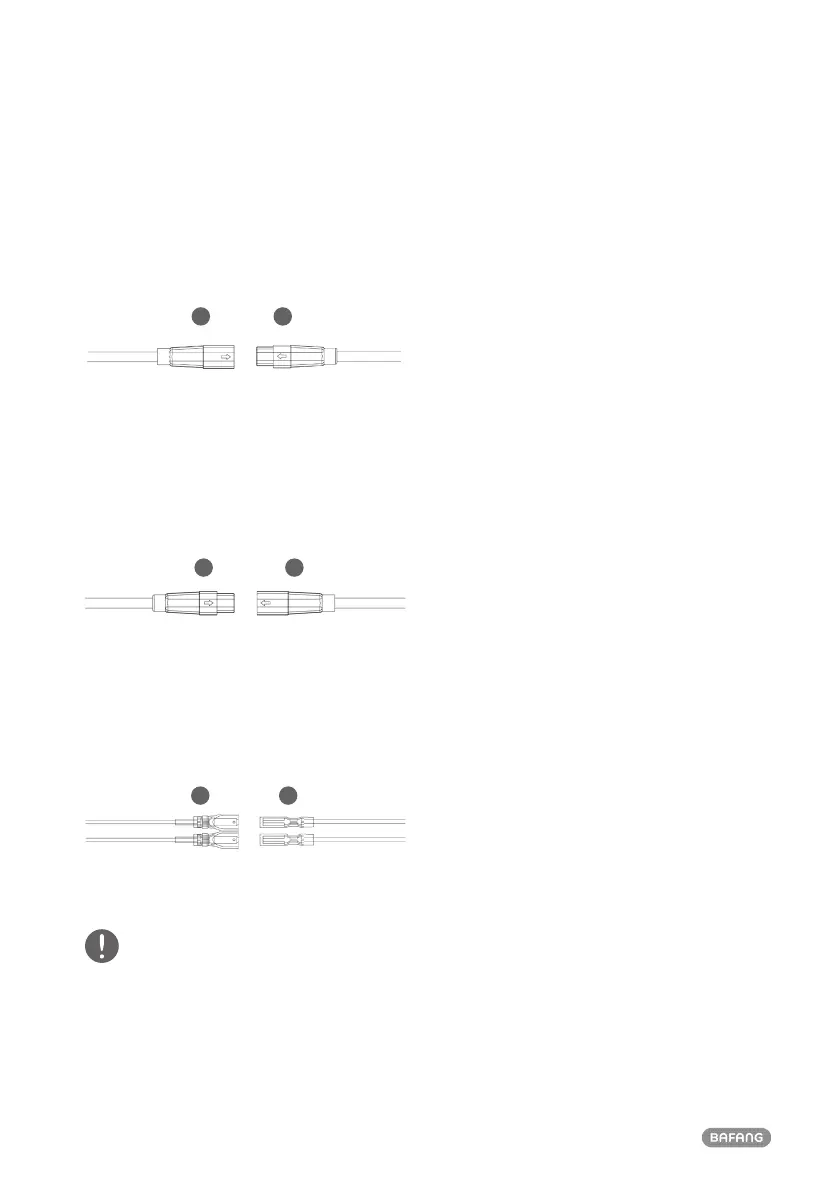

10.3.3 Connect the EB-BUS
Please connect the connectors from the control-
ler and EB-BUS cable together.
eE
E. The female connector from the EB-BUS cable
e. The male connector from the controller
10.3.4 Connect the sensor
Please connect the connectors from the control-
ler and the sensor together.
F f
F. The male connector from the sensor
f. The female connector from the controller
10.3.5 Connect the light
Please connect the connectors from the control-
ler and light cable together.
G g
G. The male connector from the light cable
g. The female connector from the controller
Caution: For more stable and lasting
work of the product, please make
sure to power off before plugging
any connector or repairing.
