BAFANG CR C101.C - Interface Definition

3
BF-DM-C-CR C101-EN November 2022
DEALER MANUAL FOR CONTROLLER

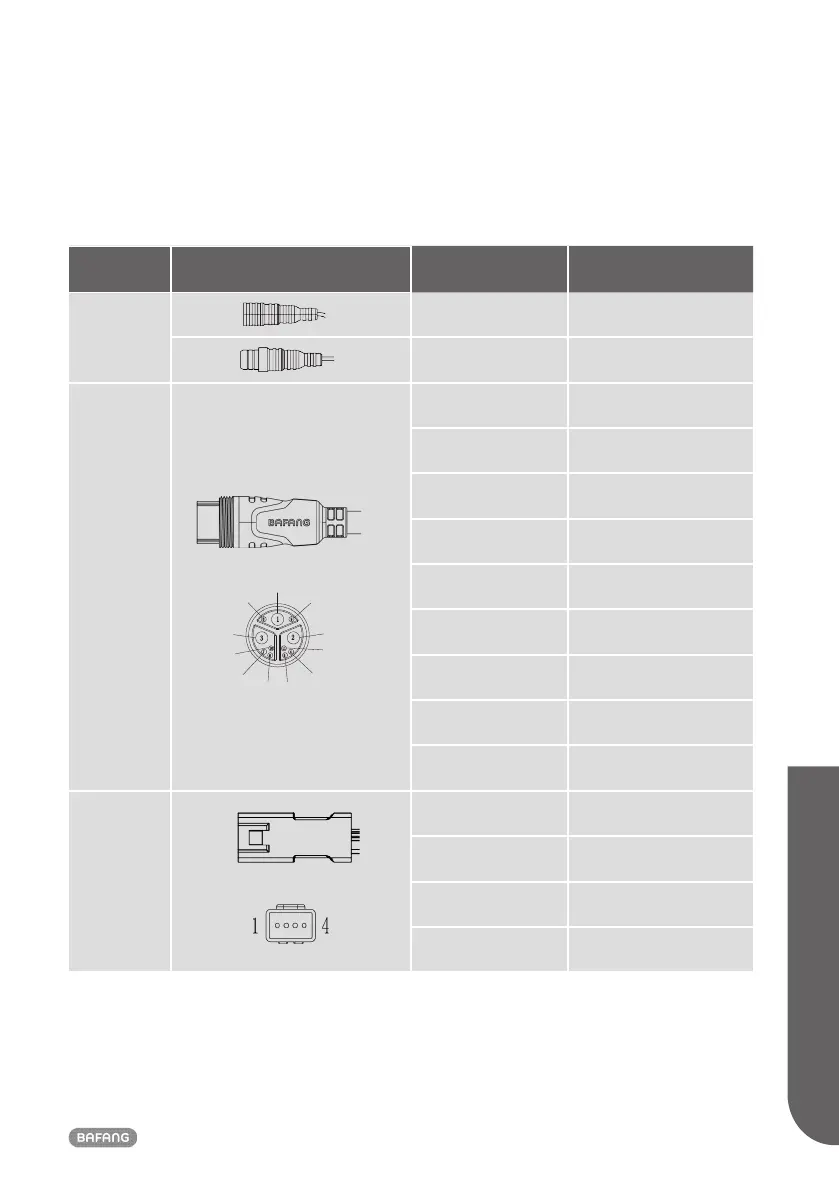

10.2.2 Interface definition
Name Schematic diagram PIN Description
Battery
power cable
Red Power +
Black Power -
Motor cable
M11.4
Thick yellow Phase U
Thick green Phase V
Thick blue Phase W
White Motor temperature
Red 5V
Black GND
Yellow Hall U
Green Hall V
Blue Hall W
Battery com-
munication
3104A1002
1 Yellow CAN L
2 Red 5V
3 Green CAN H
4 Null Plug
11
10
9
8
7
6
5
4
3
2
1
Thick blue
Thick yellow
Thick green
Green
White
Yellow
Blue
Purple
Grey
Black
Red
