BAFANG M400 User Manual

2
BF-UM-C-MM G330-EN October 2019
6.1 INTRODUCTION
• Product Model
MM G330.250.C
MM G330.350.C
MM G330.250.CCB
MM G330.350.CCB
• Scope
Applies only to electrically powered pedelecs
developed or licensed by Bafang. It is suitable
for city and trekking bikes, which have been
developed for road use. The engine is not
suitable for sport competitions.

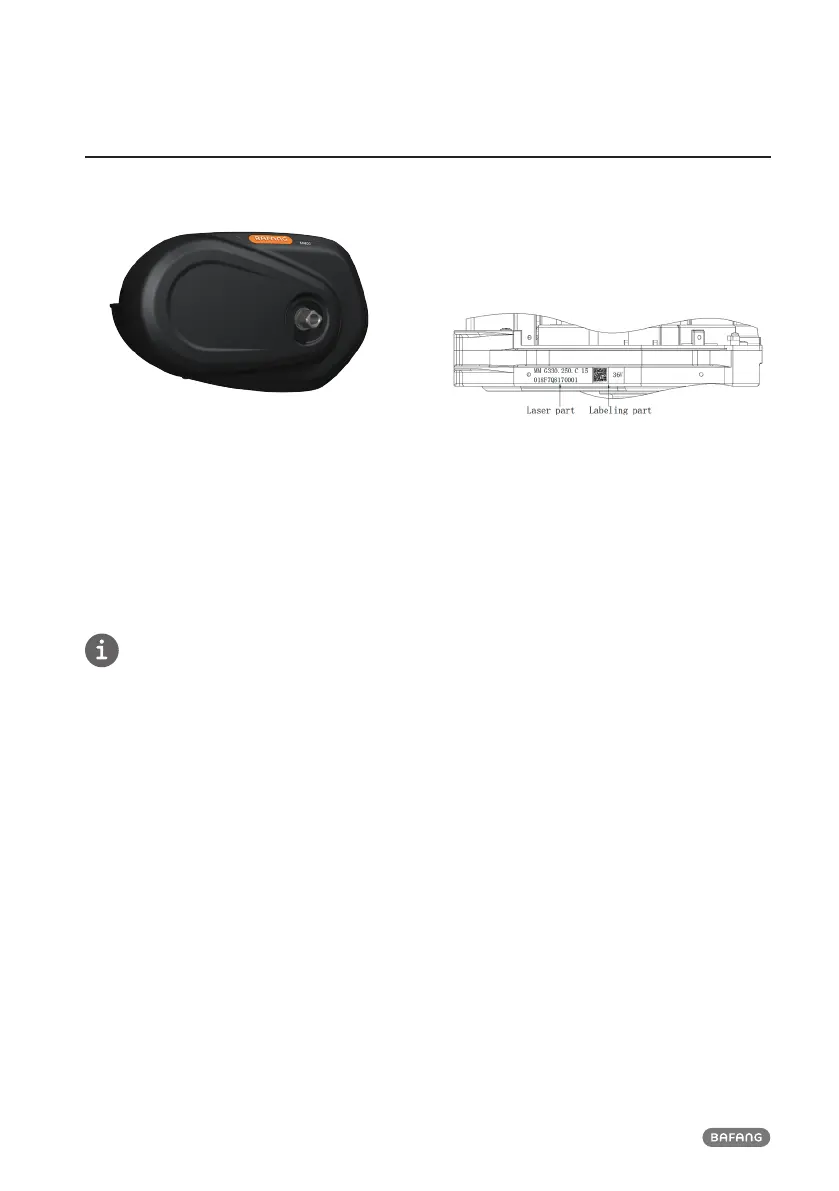

• Identification
The following graphic, is the identification
numbers of the product, which are shown on
the housing:
Note: Content in the label is important informa-
tion about this product. Please do not remove
the information from the motor.

BAFANG M400 Specifications

General

Type	Mid-drive motor
Nominal Voltage	36V
Rated Power	250W
Max Torque	80 Nm
Weight	3.9 kg
Efficiency	≥ 80 %
Protection Level	IP65
