PowerTop V3 User Operation Manual

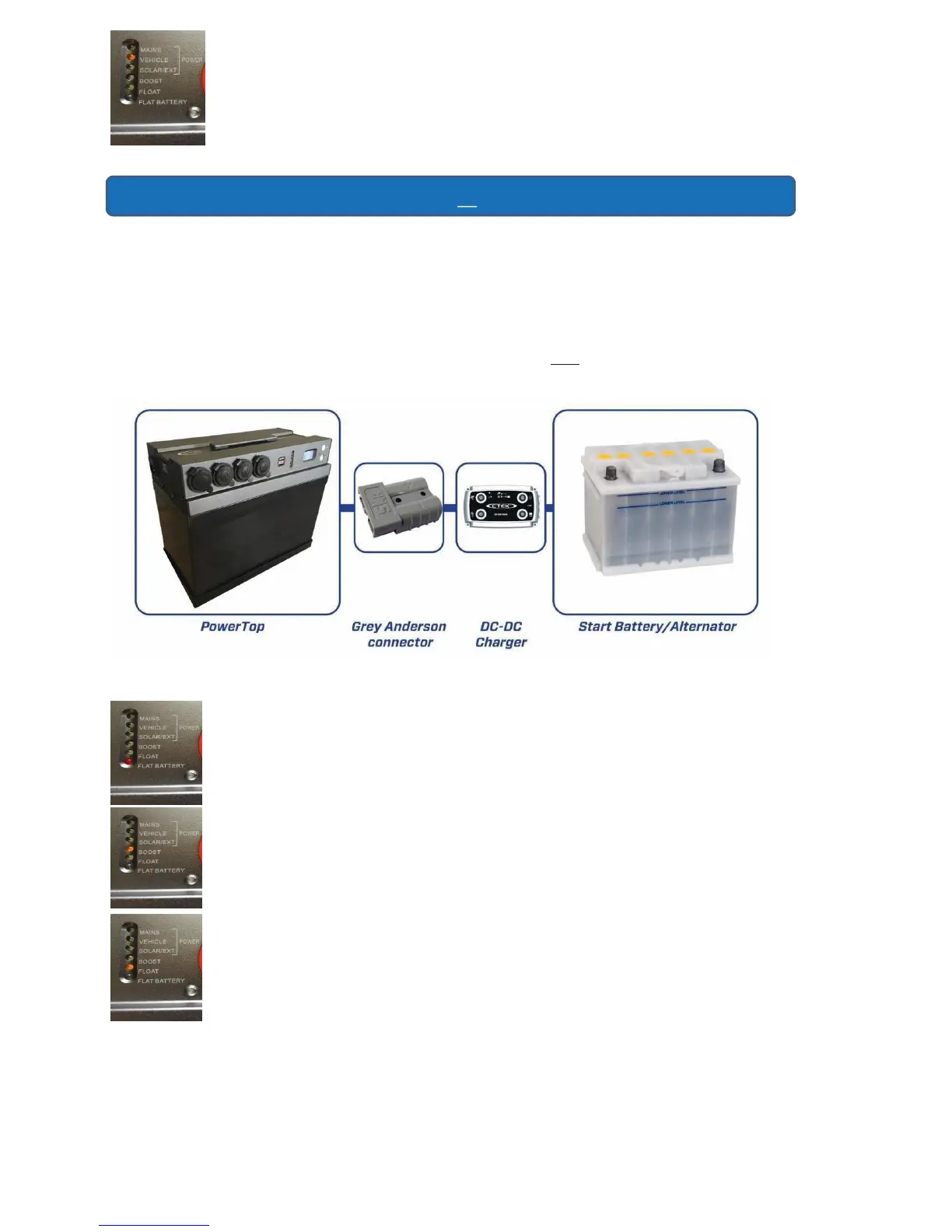

If you have an external DC-DC charger they must meet the following requirements:
• 20A maximum charge current
• Bulk 14.2V
• Float 13.7V
If the DC-DC charger meets these requirements connect the device to the Grey Anderson connector labelled 50A
Battery Output.
Charging Status LEDs
FLAT BATTERY LED will switch on when battery voltage drops below 11V and will switch off when
battery voltage is greater than 11V. When the FLAT Battery LED is on an internal audible alarm will
also activate.
BOOST LED indicates that the battery is being charged via the Solar/Ext (RED Anderson) and Vehicle
(Blue Anderson) inputs or on an AC charger. The Boost cut out voltage is 14.2V and will cut in when
the battery voltage drops below 12.7V.
FLOAT BATTERY LED will switch on when the BOOST cut-out voltage is reached and will switch off
when the Boost cut-in voltage is reached. The Float LED indicates the battery is not being charged via
the Solar/Ext (RED Anderson) and Vehicle (Blue Anderson ) inputs.
Vehicle LED Operation
The Vehicle LED will turn on when the voltage on the B
l
ue
Anderson input is above 13.2V and will
turn off when the voltage goes below
13.2
V.
DC
-
DC
Vehicle
Charging
IMPORTANT NOTE:
DC On/Off Switch must be
ON
for charging (see page 3 for switch
location).
