PowerTop V2 User Operation Manual
IMPORTANT NOTE: DC On/Off switch must be ON for load connections.

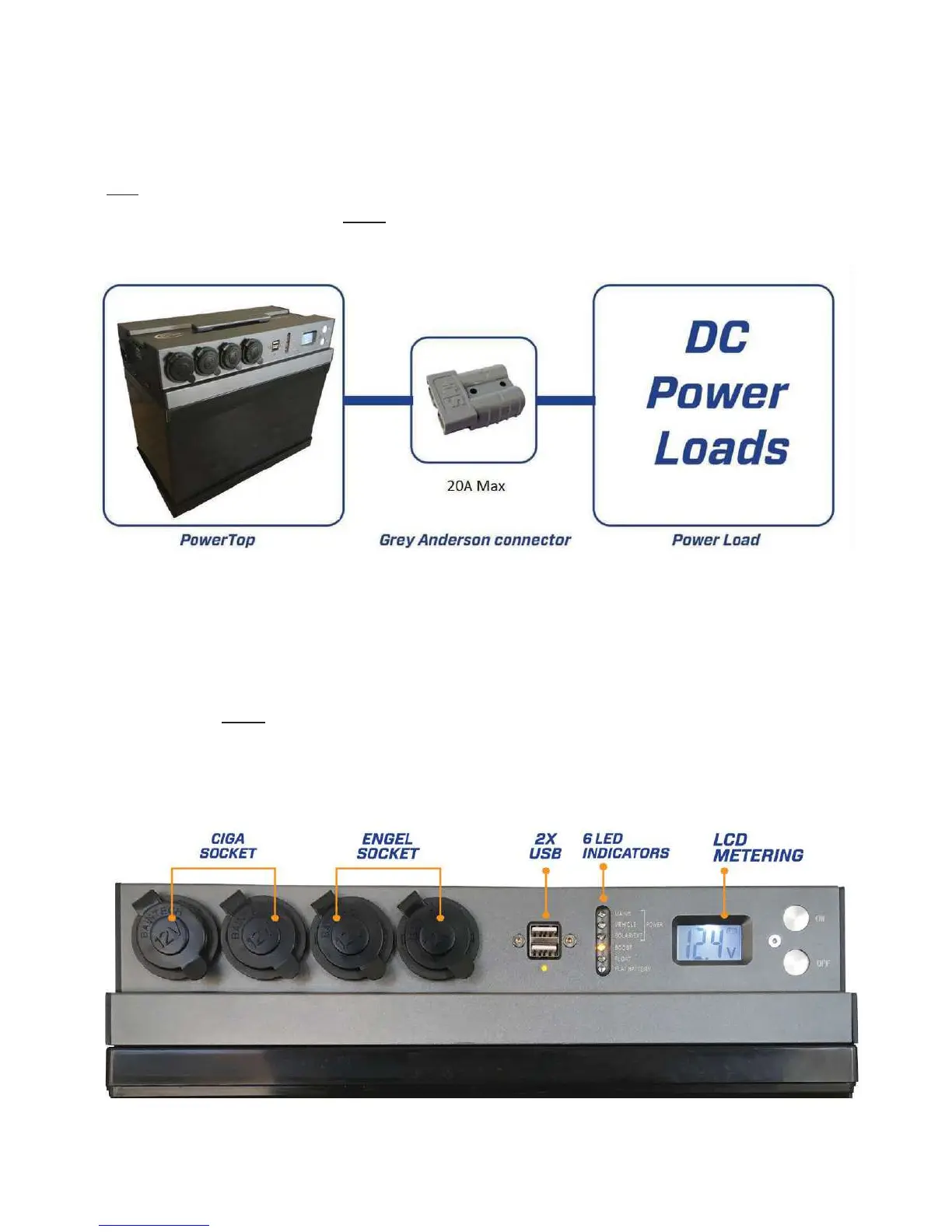

The Grey Anderson connector load output is protected by a 50A self-resettable thermal breaker. Maximum
recommended load as a guide is under 500W, dependent on ambient temperature.
Loads can also be connected to the following 12V DC Power sockets:
• Ciga x 2 Maximum load/Socket 10A
• Engel x 2 Maximum load/Socket 10A
• USB x 2 Maximum load/Socket 5V/2.3A
Sockets output are protected by a 20A
self-resettable thermal breaker. Maximum recommended load across all
sockets as a guide is 200W, dependent on ambient temperature.
13
LOAD CONNECTION
Important note: PowerTop must be ON for LOAD CONNECTION
