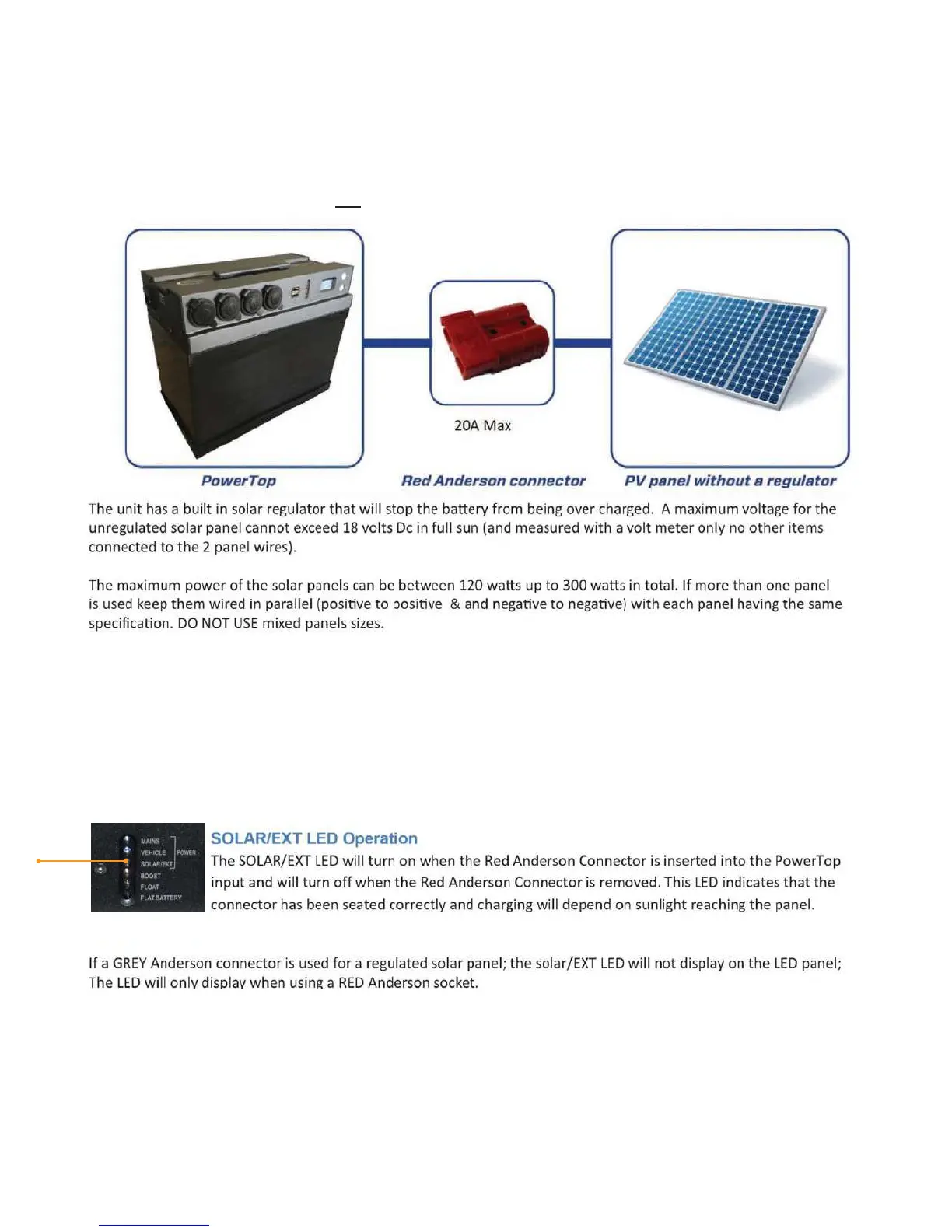

If you want to connect a DC charging source that is unregulated, for example a 12V PV panel (36 Cell) without a
regulator it must be connected to the Red Anderson Connector input labelled Solar/External Charge.
IMPORTANT NOTE: DC On/Off Switch must be ON for charging (see page 3 for switch location).
IMPORTANT NOTE:
DC On/Off Switch must be
ON
for charging (see page 3 for switch location).
9
SOLAR/EXT
UNREGULATED SOLAR DC CHARGING

Ifasolarregulatorisedtothepanel,itmustbeusedontheAGMbaeryseng(somecheaperunitswillhaveno
selectablebaeryseng)andbepluggedintotheGREYAndersonsocket.
Whenusingregulatedsolar:Checkyoursolarregulatorinformaontoensurethereiscorrectsolarconnecontothe
PowerTop.
REGULATED SOLAR OPERATION
