Always wear a helmet; It could save your Life!

Please obtain, review, and follow provincial / municipal government acts and

regulations pertaining to owning and operating an off-road vehicle.

Minimum Age Requirement: 16

Weight capacity: 150 lbs.

Rev. K (CAN)

020509

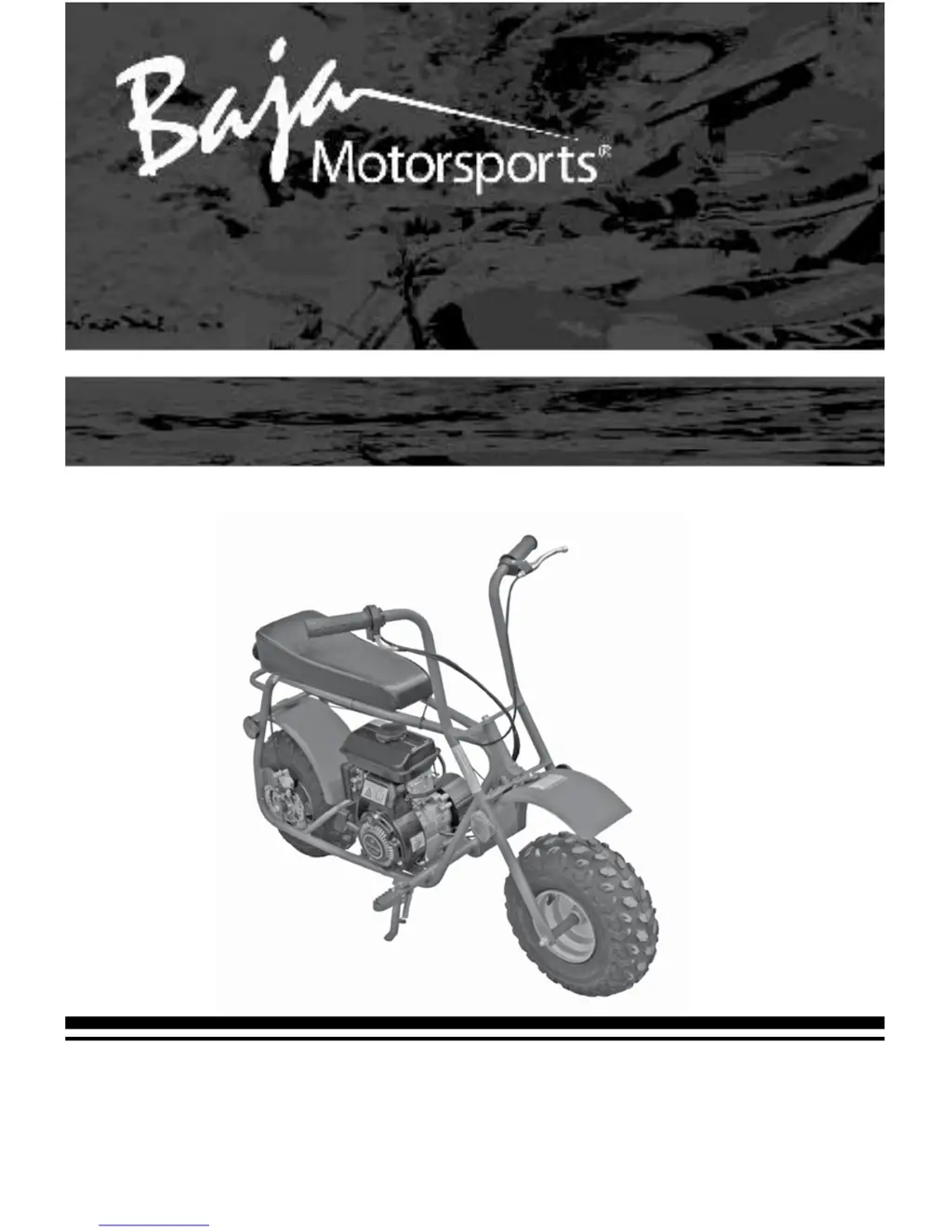

DB30 Mini Bike

Read this manual carefully. It contains important safety information.

No one under the age of 16 should operate this Mini Bike.

OWNER’S MANUAL

Other manuals for Baja motorsports DB30

Operator's Manual22 pages

Service Bulletin4 pages

Questions and Answers:

S
smyersJul 30, 2025
How to troubleshoot a Baja motorsports DB30 Motorcycle that will not start?
- A
  Alexander PalmerJul 30, 2025
  If your Baja Motorsports Motorcycle won't start, there are several potential causes: * The fuel valve may be OFF. Move the fuel valve lever to ON. * The choke may be OPEN. Move the choke lever to CLOSED. * The motorcycle may be out of fuel. Refuel it. * The fuel may be bad. Drain the fuel and carburetor, then refuel with fresh gasoline. * The spark plug may be faulty, fouled, or improperly gapped. Remove and inspect the spark plug, then clean, gap, or replace it. * The spark plug may be wet with fuel (flooded engine). Remove and inspect the spark plug, then dry and reinstall it. * There may be a fuel filter clogged, carburetor malfunction, ignition malfunction, valves stuck, etc. Take the engine to a qualified mechanic to replace or repair faulty components.
G
gsuttonAug 12, 2025
Why does my Baja motorsports DB30 Motorcycle engine lack power?
- L
  Lori GarciaAug 12, 2025
  If your Baja Motorsports Motorcycle engine lacks power, consider these potential causes: * Clogged filter element(s): Check the air filter and clean or replace it. * Choke lever may not be fully open: Check the choke lever position. * Bad fuel: Drain the fuel tank and carburetor, then refuel with fresh gasoline. * Other issues: A fuel filter clogged, carburetor malfunction, ignition malfunction, or stuck valves, etc., may be the reason. Take the engine to a qualified mechanic to replace or repair faulty components as necessary.

Baja motorsports DB30 Specifications

General

Payload	68.04kg (150 lbs.)
Horsepower	2.5Hp
Max power	1.84KW/3600rpm
Max torque	3.8Nm/2500rpm
Front wheel	145x70-6
Rear wheel	145x70-6
Brake type	Disc
Capacity of gasoline tank	1.4L (0.36 gal)
Capacity of oil tank	0.45L (0.40 qt.)
Starting method	Recoil pull start
Bore a stroke	52mm x 46mm
PTO shaft rotation	Counter clockwise
Displacement	97.7cc
Spark plug	Autolite-258, AC-CS49, Champion-CJ14, NGK-BM4A, Denso-W14M-US
Spark plug gap	0.7mm-0.79mm
Ignition system	Non contact transistor magneto

Weight and Dimensions

Overall length	1295mm (51 inches)
Overall width	622mm (24.5 inches)
Overall height	863mm (34 inches)
Wheelbase	927mm (36.5 inches)
Dead weight	35.38kg (78lbs.)
Ground clearance	102mm (4 inches)
